- Page 1 MAN AR 45/06/22/02 Instructions Manual: M764 – Monobloc 4SW...
-
Page 2: Table Of Contents
Copyright Auto Ribeiro Ltd. and its logo are trademarks or registered trademarks. The respective logos are trademarks of Auto Ribeiro Lda. AREquipment is a trademark or a registered trademark of Auto Ribeiro Lda. The equipment described here was developed and produced exclusively by Auto Ribeiro Lda. -
Page 3: Symbology
Symbology Hazard Warning Read the manual Equipment must be handled by at least 2 trained operators Maximum load Capacity Fitting zones. Danger of operator damage... -
Page 4: Warnings And Security
Warnings and Security Danger of falling Pay special attention when moving around the equipment, to the same level taking into account the danger of falling inside the vehicle. Pay special attention to the movement with the equipment, Danger of fall in taking into account the danger of the fall from the inside of the uneven vehicle to the outside. -
Page 5: Contacts
Contacts Manufacturer: Auto Ribeiro Lda Rua de S. Caetano 459 /519 – Apartado 526; 4411-701 Canelas; Address: V.N.Gaia, Portugal www.autoribeiro.com Web: www.arequipment.com Email: geral@arequipment.com Contacts: +351 227 157 100... -
Page 6: Overview / Lateral View

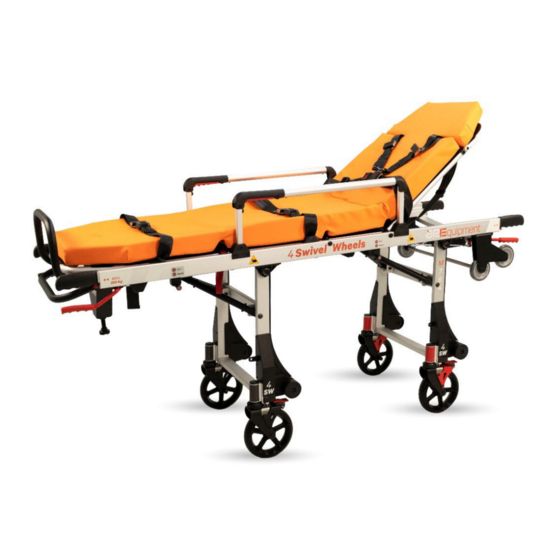

M764 – MONOBLOC - 4SW (4 Swivel Wheels) The 4/5 parts with 4 swivel wheels monobloc, or M764 it is an equipment with fixed stretcher and manually operated. Its main objective is the transport of patients with mobility difficulties and post- operation condition. This product is developed and produced by Auto Ribeiro Lda. -
Page 7: Top View / Characteristics
Equipment’s Top View CHARACTERISTICS Approximate weight: 44,7 kg (Standard Version) Maximum Load Capacity: 250kg Approximate Dimensions (Closed): 1915 x 568 x 455 mm Approximate Dimensions (Open): 1915 x 568 x 990 mm ... -
Page 8: Front Leg Control(Intermediate Position)
FRONT LEG CONTROL (Intermediate Position) Security System Standard Version 1º - Lift the lever (placed on the right side of the cart). 5 parts Version 1º - Lift the lever (placed on the right side of the cart). Final Position... -
Page 9: Control The 4 Swivel Wheels / Wheels
CONTROL THE 4 SWIVEL WHEELS Red Lever Locking system control of the front wheels. Black Lever Locking system control of the rear wheels. WHEELS 4 Swivel Wheels 4 Swivel Wheels Locking system of the fixed wheels Engage the red lever with the foot to lock the wheels... -
Page 10: Back Legs Control / Front Legs Controls
BACK LEGS CONTROL Security System Lift the safety lever. (Lever Design may vary) FRONT LEG CONTROL Security System Lift the safety lever. (Lever Design may vary) -
Page 11: Lock Legs And Lift Stretcher
LOCK LEGS AND LIFT STRETCHER To lift the stretcher with the legs locked, turn the respective handles to lock the front and rear legs. Location of the handles Handle Positions – Lock and Unlock Turn the handle to lock the legs before lifting the stretcher Turn the handle to unlock the legs with the stretcher on the... -
Page 12: Telescopic Handles/ Swing Down Sidearms
TELESCOPIC HANDLES Security System 1º - Press button with a finger. 2º - Push or pull to achieve the desired length. SWING DOWN SIDEARMS Security System 1º - Press button with hand 2º - Push or pull to achieve the desired opening. -
Page 13: T I L T I N G H E A
TILTING HEAD It is possible to adjust the head’s panel in different positions: Head’s Elevation 1º - Press the red lever 2º - Pull or push the head’s panel to achieve the desired position Head’s Elevation 5 Parts (Optional) 1º - Press the lever 2º... -
Page 14: Adjustable Feet
ADJUSTABLE FEET Adjustable feet in three different positions: Footrest and Knees-Flex Position Legs Elevation Lower Legs part Elevation (Available in Standard Version) -
Page 15: Security Information
SECURITY INFORMATION This equipment can be dangerous: Danger of Entrapment CAUTION: USE WITH CAUTION! Danger of Entrapment ... -
Page 16: Accessories
ACCESSORIES Restrains Shoulder Harness Restrains Legs and Feet Restrains Restrains Instalation 1º - Tying restraint straps in inner bars. 2º - Pass the restraints through the plate slots 3º - Join belt buckles. - Page 17 ACCESSORIES IV Pole IV Pole IV Pole in use Instruments Tray Instruments Tray. Instruments Tray in use.
-
Page 18: Optional
OPCIONAL Legs locks System System that allows you to lift the stretcher without the legs moving 5 parts System that allows you to change the inclination of the headboard Up to 3 positions... -
Page 19: Schedule Maintenance
SCHEDULED MAINTENANCE The equipment needs regular maintenance to work properly. You must follow a regular maintenance plan to avoid failures. The following table lists recommends minimum maintenance intervals for your equipment. Use original replacement parts recommended by your manufacturer. Read the manufacturer's safety data for each product. - Page 20 Inspection (every 3 months) • It is necessary to check used parts for immobilization purposes. • Checking the tightness of the connecting elements. Make adjustments if necessary. Lubrication (every 3 months) • Clean the guides using a soft cloth removing the lubricant and residue (before lubrication).
-
Page 21: Label And Serial Number
LABEL AND SERIAL NUMBER Label Location... - Page 22 MAN AR (Manual Reference/Month of Revision/ Year of Revision/Revision) Rua de S. Caetano, 551 Apartado 526 4411-701 Canelas; Vila Nova de Gaia, Portugal Telf: +351 227157100 , Fax: +351 2271244 comercial@arequipment.com www.arequipment.com BASED ON STANDARDS EN 1865-1 Patient handling equipment used in road ambulance. - Specification for general stretcher systems and patient handling equipment.
