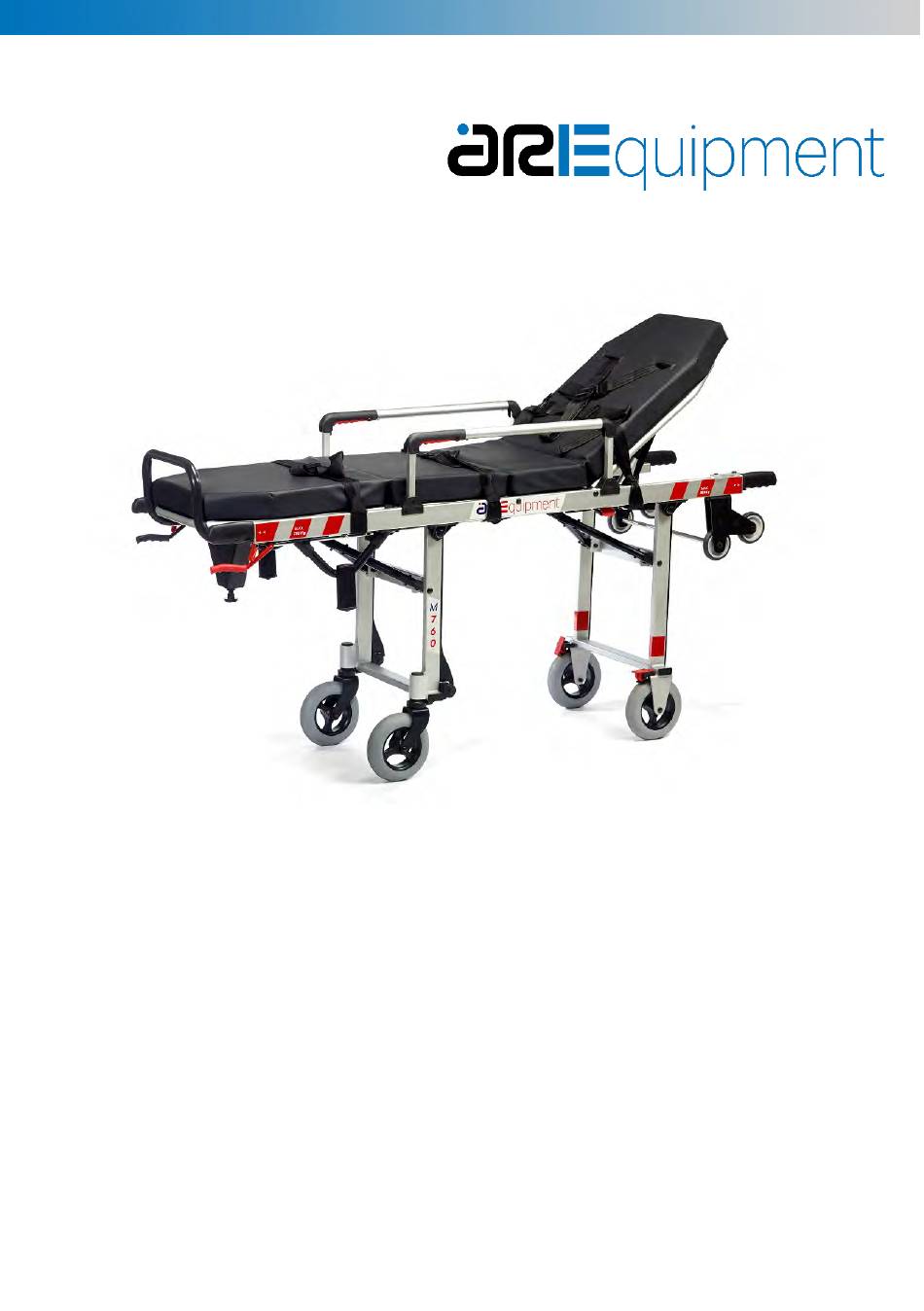

- Page 1 M760: Stretcher User manual...

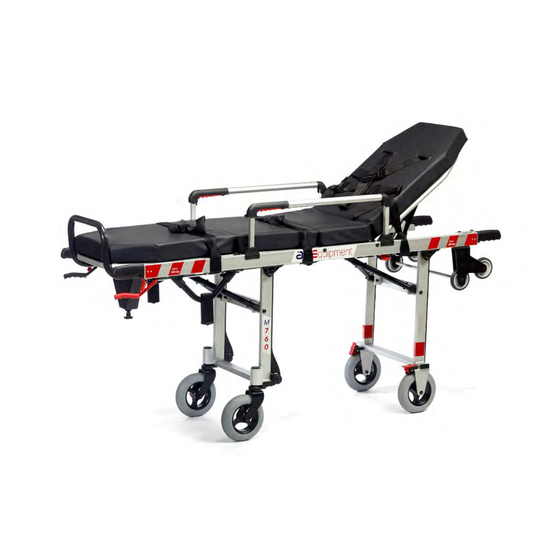

- Page 2 Equipment M760 The M760 is an equipment with fixed stretcher and manually operated. Its main objective is the transport of patients with mobility difficulties and post- operation condition. This product is developed and produced by Auto Ribeiro Lda.. Equipment’s Overview...
-
Page 3: Specifications
SPECIFICATIONS Approximate Weight: 43 kg Maximum load allowed: 250kg Approximate Dimensions (closed): 1920 x 570 x 475 mm Approximate Dimensions (open): M760 1920 x 570 x 1015 mm M760S 1915 568 930 M760H 1915 568 1090... - Page 4 FRONT LEG CONTROL (Intermediate Position) Security System 1º - Lift the lever (placed on the right side of the cart). Final Position. WHEELS Swivel Wheels 2 Swivel Wheels Fixed Wheels 2 Fixed Wheels Locking system of the fixed wheels 1º Engage the red system with the foot to lock the wheels.
- Page 5 REAR LEG CONTROL Security System 1º - Lift the safety lever. 2º - Press the left lever until it moves and keep it pressed.. (Note: To put the back leg into halfway, should press the lever and release it immediately) FRONT LEG CONTROL Security System 1º...
- Page 6 TELESCOPIC HANDLES Security System 1º - Press button with finger. 2º - Push or pull to achieve the desired length. SWING DOWN SIDEARMS Security System 1º - Press button with hand. 2º - Push or pull to achieve the opening position.
-
Page 7: Tilting Head
TILTING HEAD It is possible to adjust head‘s panel in different positions: Relax Head’s Elevation 1º - Press the red lever 2º - Pull or push the head’s panel to achieve the desired position... - Page 8 ADJUSTABLE FEET POSITION Adjustable feet in three different positions: Footrest and Knees-Flex Position Lower Legs part Elevation Legs Elevation...
-
Page 9: Security Information
SECURITY INFORMATION This equipment can be dangerous: Danger of Entrapment. WARNING: USE WITH CAUTION! Danger of Entrapment. MAINTENANCE Perform visual inspection every fifty cycles of use. Lubrication bimonthly elements of mechanical operation with high viscosity lubricant. ... - Page 10 ACCESSORIES Restrains Shoulder Harness restraints Legs and Feet restrains Restrains Instalation 1º - Tying restraint straps in inner bars. 2º - Pass the restraints through the plate slots 3º - Join belt buckles.
- Page 11 ACCESSORIES IV Pole IV Pole IV Pole in use. Instruments Tray Instruments Tray Instruments Tray in use.
- Page 12 MAN AR 33/04/13/00 Rua de S. Caetano, 551 Apartado 526 4411-701 Canelas; Vila Nova de Gaia, Portugal Telf: +351 227157100 , Fax: +351 2271244 support@arequipment.com www.arequipment.com...
