- Page 1 M860: Trolley and stretcher – Separable User Manual...

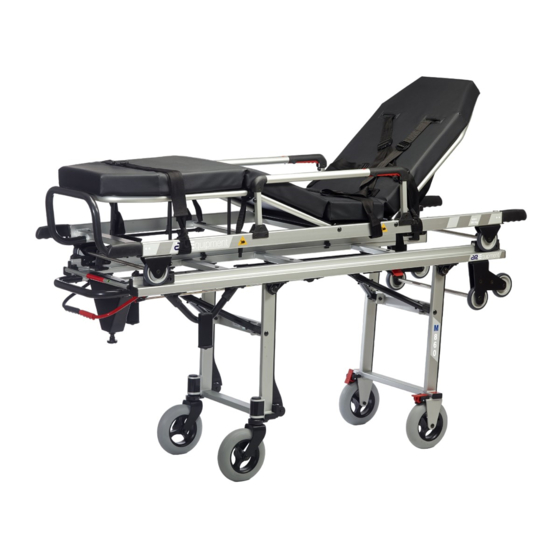

- Page 2 M860: Trolley / Stretcher - Separable The trolley/stretcher, or M860, is an equipment with separable stretcher of manual drive. This equipment as for main purpose the transport of patients with mobility difficulties and post-operation condition. This product is developed and produced by Auto Ribeiro Lda.

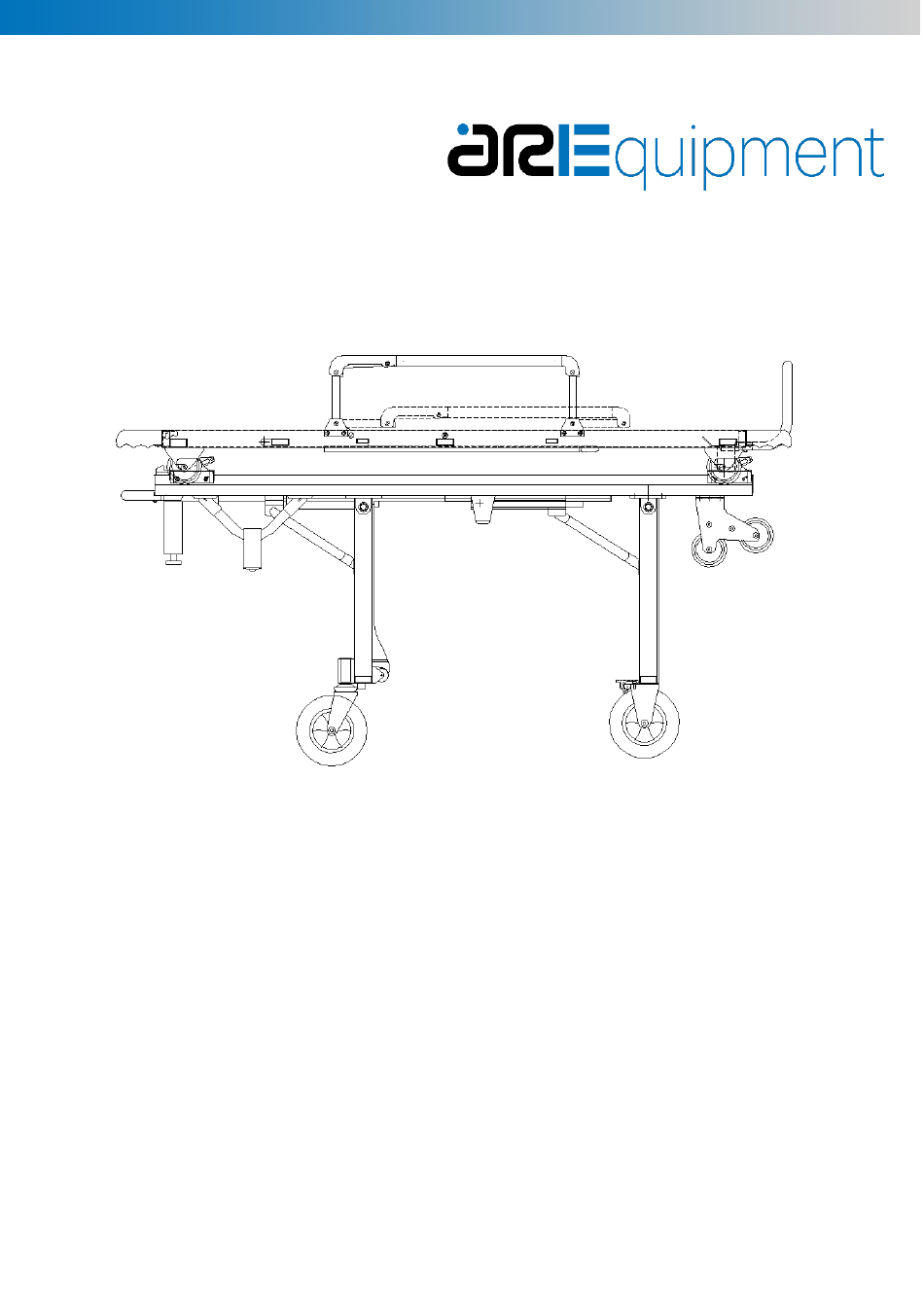

- Page 3 Top view of Equipment CHARACTERISTICS: Weight: 32,7 kg (trolley) + 18 kg (stretcher) Maximum load capacity: 250kg Trolley dimensions (closed): 1846 x 560 x 455 mm Trolley dimensions (open): 1846 x 560 x 870 mm Dimensions (stretcher): 1915 x 568 x 365 mm ...
- Page 4 FRONT LEG CONTROL (In mid position) Security System 1º - Lift the lever (in the right side of trolley) Final Position WHEELS Swivel Wheels 2 Swivel wheels Fixed Wheels 2 Fixed wheels Block of fixed wheels 1º - Engage the tabs with the foot to lock the wheels.
- Page 5 BACK LEGS CONTROL Security System 1º - Press the left lever until it moves and keep it pressed. Note: To put the back leg into halfway, just press the lever and release it immediately. FRONT LEG CONTROL Security System 1º - Press the right lever until it moves and keep it pressed STRETCHER BLOCK SYSTEM CONTROL Security system...
- Page 6 TELESCOPIC HANDLES Security System 1º - Press the button 2º - Push or pull the wrist to fit the desired length SWING DOWN SIDEARMS Security System 1º - Press the red button in the sidearm 2º - Push or pull to achieved the desired opening position.
-
Page 7: Adjustable Backrest
ADJUSTABLE BACKREST The backrest can be adjusted in different positions: Supine position Semi-fowler’s Position and Fowler Position 1º - Press the red lever 2º - Push or pull the backrest... - Page 8 ADJUSTABLE FEET POSITION Adjustable feet in three different positions: Footrest and Knees-Flex Position Lower Legs part Elevation (16º degrees) Legs Elevation...
-
Page 9: Safety Warnings
SAFETY WARNINGS This Equipment can be dangerous: Risk of entrapment • ATENTION: USE WITH CAUTION! Risk of entrapment • MAINTENANCE Perform visual inspection every fifty cycles of utilization. • Lubrication elements of mechanical function every six months with high • viscosity lubricant •... - Page 10 ACESSORIES Fixing Restrain Straps Shoulder Harness restraints Legs and feet restrains Restraint Installation 1º - Tie restraint straps in inner bars. 2º - Pass the top restraints through the plate slots 3º - Join belt buckles...
- Page 11 ACESSORIES IV pole IV pole. IV pole in use. Instruments Tray Instruments tray. Instruments tray in use.
- Page 12 ACESSORIES Headrest 1º - Pass the strap through the plate slots 2º - Join both sides of the velcro...
- Page 13 MAN AR 42/03/14/00 Rua de S. Caetano, 551 Apartado 526 4411-701 Canelas; Vila Nova de Gaia, Portugal Telf: +351 227157100 , Fax: +351 2271244 comercial@arequipment.pt www.arequipment.com...
