Work Pro BlueLine Digital Quick Reference

Hide thumbs Also See for BlueLine Digital:

Advertisement

Quick Links

Download this manual
Quick Reference / Guía Rápida
Rev. 141001

Advertisement

loading
Need help?

Need help?

Do you have a question about the BlueLine Digital and is the answer not in the manual?

Questions and answers

Related Manuals for Work Pro BlueLine Digital

Summary of Contents for Work Pro BlueLine Digital

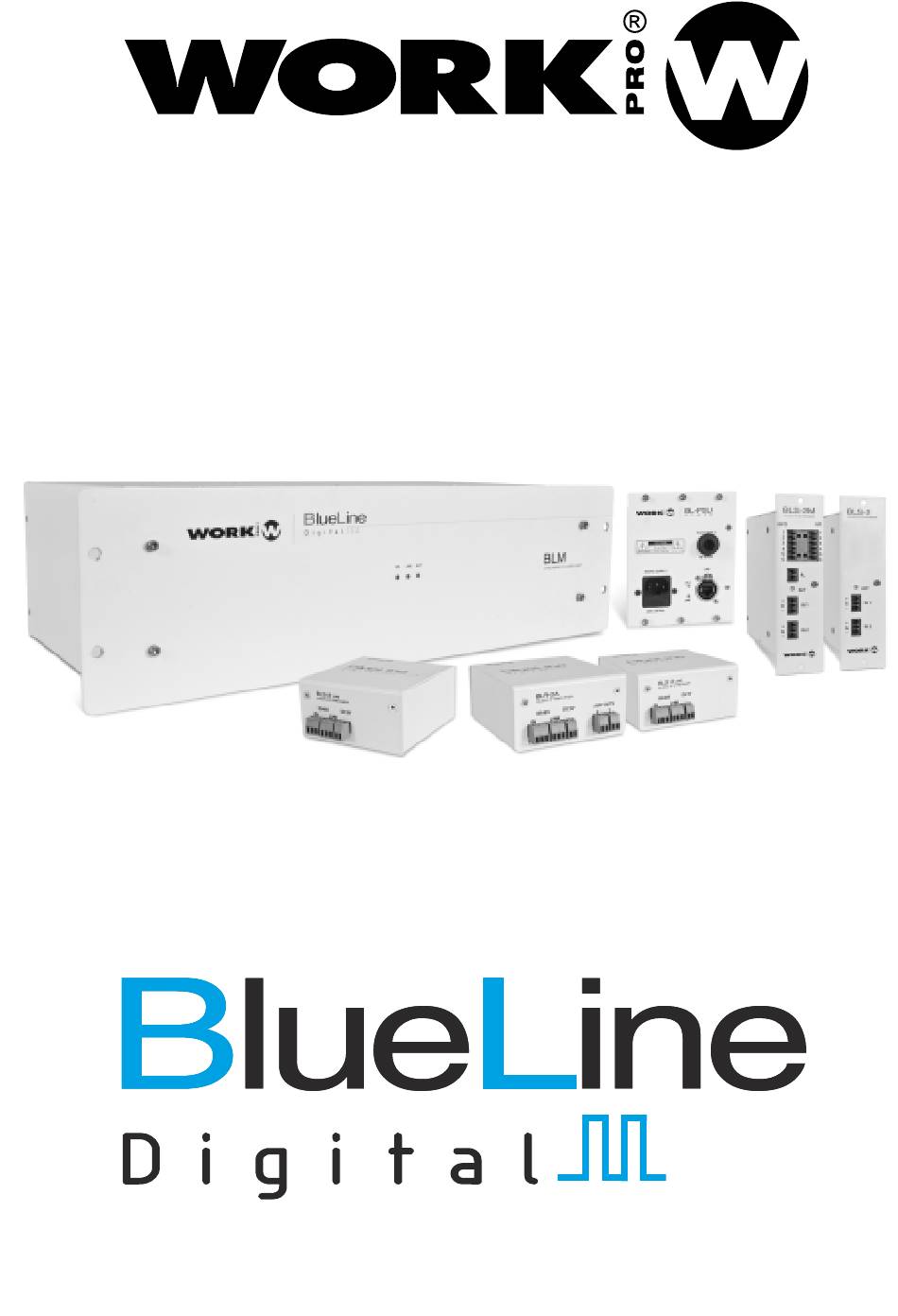

  • Page 1 Quick Reference / Guía Rápida Rev. 141001...
  • Page 2 INTRODUCTION BlueLine Digital is a distributed audio system based on audio streaming over Ethernet. Thus, it is possible to transmit multiple channels and control through a LAN with very low latency. Its broad scope allows from transmission a single audio channel from one point to another or multiple points, facility allowing more complex multichannel audio source selection, trigger control,alarm, etc.
  • Page 3 SENDERs BLS 2M AUDIO IP STREAMER BLS 2M BLS 2M 1 stereo channel ethernet streamer. AUDIO IP STREAMER - 8 GPIO available to transmit its state over the network. - One input is available to enter an alarm condition. - One single module occupation in BLM modular central unit.
  • Page 4 SENDERs BLS 2 LITE BLS 2 AUDIO IP STREAMER LITE - Independent unit which add 1 stereo DC-12V/24V unbalanced channel in the network. - Can coexist with BLM unit, being another streamer of the same network - Power supply: PoE and 12V/24V DC (feed through external power supply) BLS 2 LITE...
  • Page 5 RECEIVERs BLR 2 BLR 2 AUDIO IP RECEIVER - IP audio receiver. - It select and decodes the chosen audio sourced sent through network, providing 1 stereo unbalanced output. - Remote socket to connect local control BLC 1 (audio source selection, gain control and auxiliar local audio input) BLR 2 NOTE: This is a dedicated...
  • Page 6 RECEIVERs BLR 2A BLR 2A AUDIO IP AMPLIFIER - IP audio receiver. DC-12V/24V - Built-in amplifier: - 2x 5W (connected by PoE) - 2x 15W (external power supply) - It select and decodes the chosen audio sourced sent through network, providing an analog balanced output.

  • Page 7: Other Devices

    OTHER DEVICES - Modular central unit. - 11 module units occupation. (7 positions for free occupation). - 3 HU rack chassis. BL PSU BL PSU - Main supply unit of BLM system. - 18-36V Auxiliary supply input. - It feeds all modular units connected. - RJ 45 socket to Ethernet connection - Three module occupation in BLM modular central unit.
  • Page 8 OTHER DEVICES BLC 1 Channel selection indicator Audio level indicator Audio level adjustment pushbutton Channel selection pushbutton Auxiliar audio input - BLC 1 is a zone control for the receivers. - It can control the audio input source - It can control de audio level - It adds an auxiliar input through minijack - It has a Remote port to connect a receiver - The maximum distance between BLC 1 and the BLR must be 5 m...

  • Page 9: Installation

    INSTALLATION PREVIOUS NOTE BlueLine system sends 1 stereo audio source from a streamer (sender) to one or more receivers. The system requires " to name" each streamer to select at each receiver or receivers and extract the desired stereo source. This process is performed in 2 ways: - Manually: Assigning one of the 16 positions with the selector and choosing the same position in the desired receiver or receivers.

  • Page 10: Web Server

    INSTALLATION GPIO BLS 2M and BLR 2 incorporate 4 GPI and 4 GPO each one. Therefore, the system can be considered as bidirectional. When GPI contact is closed due to an external action, this state will be reflected in the corresponding GPO in the other side. For example, closing GPI number 1 in a BLR 2 ( the GPO number 1 in BLS 2M will receive the state and will close its contact.

  • Page 11: Final Considerations

    INSTALLATION WORKCAD Download this software for the next link in our website: link http://www.equipson.es/prodDetail.asp?idproducto=1851 With this software it is posible to check the connection state of each device (IPs, SubNet, etc,), to change the IP and UPDATE the firmware. FINAL CONSIDERATIONS - Multiple receivers can choose the same channel reception.
  • Page 12 DISTRIBUIDOR EM PORTUGAL R. Sá de Figueiredo 6 – C 2790-233 Carnaxide Telef. (+351) 21 417 76 21 Fax. (+351) 21 030 00 31 Web: www.sislite.pt - email: geral.sislite@sislite.pt...
