Work Pro BlueLine Digital User Manual

Hide thumbs Also See for BlueLine Digital:
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
English version
Rev. 141101

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BlueLine Digital and is the answer not in the manual?

Questions and answers

Related Manuals for Work Pro BlueLine Digital

Summary of Contents for Work Pro BlueLine Digital

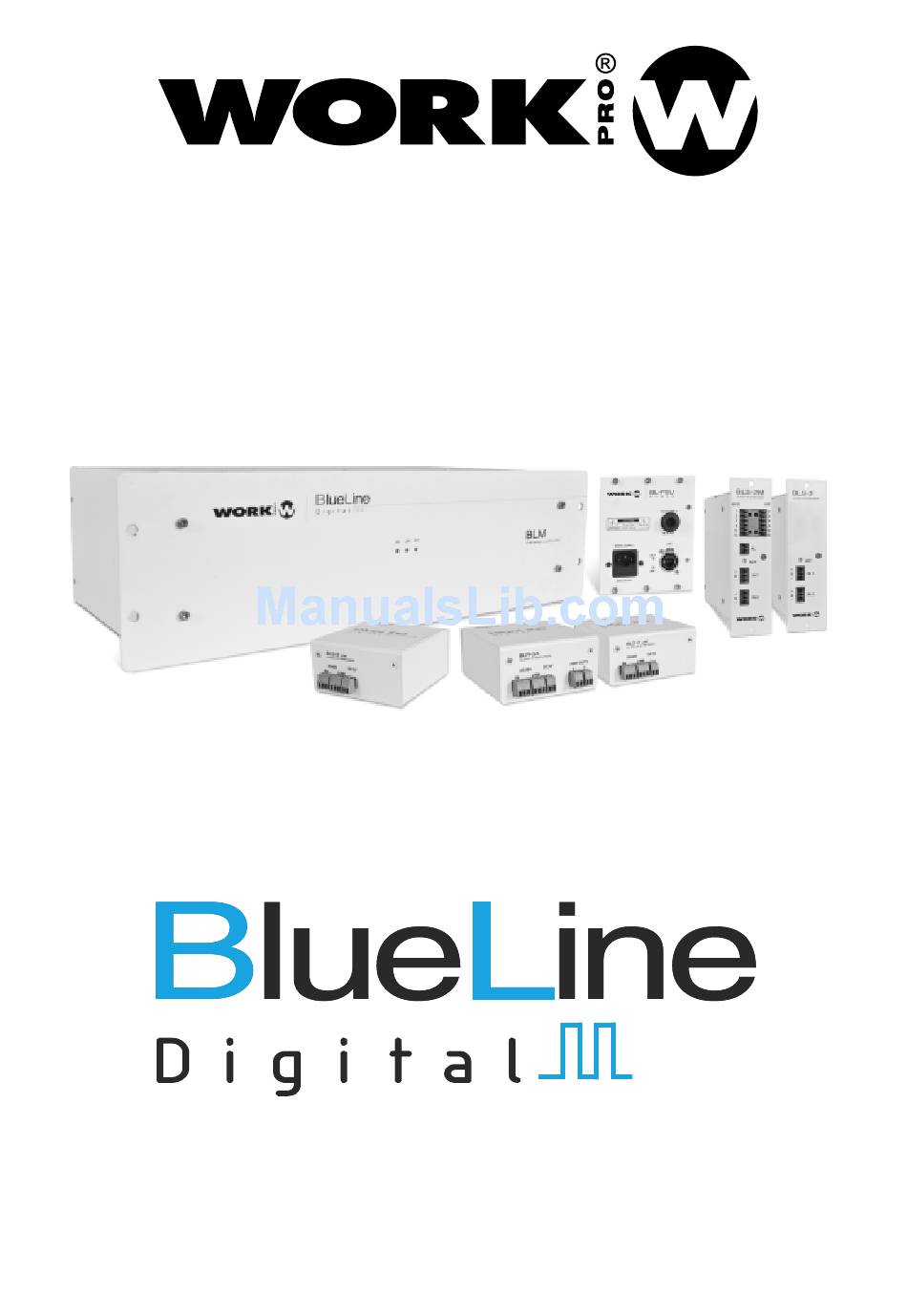

  • Page 1 User manual English version Rev. 141101...

  • Page 2: Table Of Contents

    Contents - Precautions......................3 - General View......................4 - Accessories......................4 - Introduction......................5 - Componentes del Sistema.................6 - BLM........................7 - BL PSU.......................8 - BLS 2M.......................9 - BLS 2........................14 - BLS 2Lite......................17 - BLMP 1.......................20 - BLR 2........................23 - BLR 2Lite......................28 - BLR 2A.......................31 - BLC1........................34 - OSC Protocol :....................36 - OSC for working with properties.............38...

  • Page 3: Precautions

    PRECAUTIONS Tu reduce the risk of electric shock or fire, do not expose this appliance to rain or moisture. Do not spill water or another liquid over the unit. Turn off the unit immediately if you detect a malfunction. If you detect smoke or unusual odor from the equipment, stop using and unplug it.

  • Page 4: General View

    Accessories The following accessories are included in the BlueLine Digital: 1x Main supply cable: Use this main power cable included in order to feed the BlueLine Digital. 7x Individual covers: Use these pieces to cover the empty slots. 22x Screws: Use these screws to fix the individial covers in the empty slots.

  • Page 5: Introduction

    In this chapter you will find information aboutBlueLine features and functions. BlueLine Digital is a distributed audio system based on streaming over Ethernet. It is possible to send several channels (+ control) via Ethernet and with a very low latency. It can be a simple transmission point to point, or a complete multichannel system with control and management of alarm.

  • Page 6: Componentes Del Sistema

    Elements of the sytem En este capitulo encontrará información acerca de los diferentes elementos que componen el sistema BlueLine Digital. El sistema BlueLine Digital cuenta con cuatro clases de dispositivos: Central System Modular central unit of the BlueLine system BL PSU...

  • Page 7: Blm

    The BLM is the central modular unit for BlueLine system. It can accomodate up to 11 single modular units. The basic configuration of BLM is compossed by a main supply unit (BL PSU) and a sender (BLS 2M). Once installed these elements, it is possible to install up to 7 extra single units.

  • Page 8: Bl Psu

    BL PSU BLPSU BL PSU is the central main supply unit in the BluLine system, this unit is placed inside BLM and it occupies 3 units. The connection to main power (220-230 V AC) is made through a cable IEC type included. The IEC base socket has 1A fuse. The LAN connection is made through a RJ 45 base socket and it has 2 LEDs of state.

  • Page 9: Bls 2M

    BLS 2M BLS 2M AUDIO IP STREAMER BLS 2M AUDIO IP STREAMER FRONT REAR BLS 2M is a 1 stereo channel audio sender. This unit is placed in the BLM and it occupies one single slot and it is feed insternally trough the 5V DC connectors. The LAN connection is made through the connectin between the unit with the inner switch using a RJ 45 cable.
  • Page 10 GPI port GPO port Alarm connection 5V power supply Activity indicator 1 to 16 channel selection Balanced audio input (IN-A) RJ 45 Ethernet port Balanced audio input (IN-B) BLS 2M incorporates 4 GPI ports and 4 GPO ports which state is reflected in the GPIO ports of the BLR devices.
  • Page 11 The alarm connector allows to connect a push-button or switch in the BLS 2M, therefore, when the contact is closed, the alarm condition is activated in the BlueLine system. In this condition all receivers will pass to channel "0" and wil adjust the audio level to maximum. When the contact will be opened in the push-button or switch, the alarm condition will be disabled, returning all receiver to their initial state.
  • Page 12 - ADPCM: It stores the difference in value between 2 adjacent samples, allowing the data reduction. due to, the high frequencies are reproduced correctly, bua any low frequency will lost quality. It bandwidth consumption is about 500 Kbps. - MP3: This codification is a standard used in audio streaming and compression with a moderate loss of fidelity thanks to the possibility to adjust the compression quality, and therefore, the size of the final transmission that can occuped up to 12 times less than an original transmission without compression.
  • Page 13 The CURRENT STATUS section shows the information of the device, its IP, MAC address and firmware version. If you want to assig a static IP to your BLS 2M, you must to unmark the "Enable Automatic IP" option. In the NETWORK SETTINGS section it is possible to assig a static IP to the device and to set the subnet mask.

  • Page 14: Bls 2

    BLS 2 REAR FRONT BLS 2 is a 1 stereo channel audio sender. This unit is placed in the BLM and it occupies one single slot and it is supplied internally trough the 5V DC connectors. The LAN connection is made through the connectin between the unit with the inner switch using a RJ 45 cable.
  • Page 15 In the NETWORK SETTINGS section it is possible to assig a static IP to the device and to set the subnet mask. By default all BLS 2 has the same device name (bls_2), if you want to log in to t bls_2.local/ he device through web server, you need to type this name : If you modify the name of the device, the address in the web browser will change.
  • Page 16 5V power supply Activity indicator 1 to 16 channel selection Balanced audio input (IN-A) RJ 45 Ethernet port Balanced audio input (IN-B) BLS 2 has the same functions as BLS 2M except GPIO ports and alarm management. The channel configuration and codification type are the same. In order to log in to advanced configuration menu trought your web browser, follow the next steps: 1.

  • Page 17: Bls 2Lite

    1 - 16 channel selection NO FUNCTION 12/24V power supply Ethernet RJ 45 port Stereo unbalanced audio input State indicator Take into account the following connection type: In contradistinction to BLS 2, BLS2Lite is a 1 channel unbalanced stereo streamer. The channel configuration and codification type are the same as BLS 2..
  • Page 18 BLS 2Lite REAR FRONT BLS 2 Lite is a stereo unbalanced audio streamer of 1 channel. It is an external module and can be placed anywhere. It must be supplied through POE or with an external 12/24 V DC power supply.
  • Page 19 5-Su navegador web mostrará los siguiente: In the NETWORK SETTINGS section it is possible to assig a static IP to the device and to set the subnet mask. By default all BLS 2Lite has the same device name (bls_2_lite), if you want to log in bls_2_lite.local/ to the device through web server, you need to type this name : If you modify the name of the device, the address in the web browser will change.

  • Page 20: Blmp 1

    BLMP 1 FRONTAL POSTERIOR BLMP 1 is a streamer and MP3 player with FM radio integrated. This unit is placed in the BLM and supplied internally through 5V dc connectors. It occupies 2 slots into the BLM. The adio files can be played from an USB stick or SD card, both of them must be formatted in FAT32 with a maximum storage of 32 GB.
  • Page 21 In the NETWORK SETTINGS section it is possible to assig a static IP to the device and to set the subnet mask. By default all BLMP 1 has the same device name (bl_mp1), if you want to log in bl_mp1.local/ to the device through web server, you need to type this name : If you modify the name of the device, the address in the web browser will change.
  • Page 22 Next Mute Play/Pause Prev Repeat 5V DC supply USB port Source selector Channel selector SD Card slot LED of state Ethernet port (Connected to BLM) Display Channel configuration and codification type are the same as BLS 2 and BLS 2M. In fact, BLMP 1 is a player integrated inside a BLS 2, herefore, the configuration are the same.

  • Page 23: Blr 2

    BLR 2 POSTERIOR FRONTAL BLR 2 is a 1 channel stereo unbalanced audio receiver. It is an external module and can be placed anywhere. It must be supplied through POE or with an external 12/24 V DC power supply. Thanks to the source selector in the rear side, you can select, easily, the streaming channel between 1 to 16.
  • Page 24 1-16 channel selector GPO port Connection por for BLC 1 GPI port Ethernet RJ45 port 12/24V DC supply Stereo audio output State indicators BLR 2 incorporates 4 GPI ports and 4 GPO ports which state is reflected in the GPIO ports of the BLS 2M.
  • Page 25 In case of more complex installations, BLR 2 has an advanced configuration menu in order to make the necessary adjustments. You can log in to this menu from you web browser. The steps are as follows: 1. Connect BLR 2 to a 12/24V DC main sypply 2.
  • Page 26 In the NETWORK SETTINGS section it is possible to assig a static IP to the device and to set the subnet mask. By default all BLR 2 has the same device name (blr_2), if you want to log in to t blr_2.local/ he device through web server, you need to type this name : If you modify the name of the device, the address in the web browser will change.
  • Page 27 Single mode : In this mode, by default, both outputs offer the same signal, therefore, in OUT 1 and OUT 2 there is the same signal (IN 1 or IN 2) Also, it is possible, that instead of two equal signals (by default), can be configured one balanced output through webserver (Once selected Single mode).

  • Page 28: Blr 2Lite

    BLR 2Lite POSTERIOR FRONTAL BLR 2 Lite is a 1 channel stereo unbalanced audio receiver. It is an external module and can be placed anywhere. It must be supplied through POE or with an external 12/24 V DC power supply. Thanks to the source selector in the rear side, you can select, easily, the streaming channel between 1 to 16.
  • Page 29 1. Connect BLR 2Lite to a 12/24V DC main sypply 2. Connect the device to the LAN 3. Connect a PC or laptop to the same LAN 4. Start the web browser in your PC/laptop and enter in the address bar: blr_2_lite.local/ 5.
  • Page 30 1-16 channel selector Connection por for BLC 1 12/24V DC supply Ethernet RJ45 port Stereo audio output State indicators Take into account the following connection type: "REMOTE" port allows the connection of the zone controller BLC 1. This device is connected to BLR 2Lite directly through ethernet port.

  • Page 31: Blr 2A

    BLR 2A POSTERIOR FRONTAL BLR 2A is a 1 channel stereo unbalanced audio receiver and 2 amplified outputs. It is an external module and can be placed anywhere. It must be supplied through POE or with an external 12/24V DC power supply. Thanks to the source selector in the rear side, you can select, easily, the streaming channel between 1 to 16.
  • Page 32 1-16 channel selector 12/24V DC supply Connection por for BLC 1 Amplified output (Left) Amplified output (Right) Ethernet RJ45 port Stereo audio output State indicators Take into account the following connection type: "REMOTE" port allows the connection of the zone controller BLC 1. This device is connected to BLR 2A directly through ethernet port.
  • Page 33 Max. power output (2 x 5W) 12/24V Max. power output (2 x 15W) In case of more complex installations, BLR 2A has an advanced configuration menu in order to make the necessary adjustments. You can log in to this menu from you web browser. The steps are as follows: 1.

  • Page 34: Blc1

    BLC 1 BLC 1 is an individual zone control with an auxiliar audio input. This unit can be placed up to 20 meter of the receivers and the connections between both devices must be carried CAT5 cable between REMOTE ports of both devices. Take into account that the REMOTE port in BLS 2Lite has no fuction and, therefore, the BLC 1 can not be connected here.

  • Page 35: Osc Protocol

    OSC PROTOCOL BlueLine Digital uses the OSC protocol for communication between devices. OSC ( Open Sound Control ) is a communication protocol that enables the communication of computers, musical instruments and other multimedia devices ( smart phone, tablet...) designed to share musical information in real time over a network.
  • Page 36 Selection channel indicator Audio level indicator Audio level adjustment Channel selector Auxiliar audio input USER MANUAL...
  • Page 37 f : when the argument type is float32 s: when the argument type is OSC-string b: when the argument type is OSC-blob (array of bytes. The first four bytes are used to indicate the size of the data that follow.) T: True.

  • Page 38: Osc For Working With Properties

    OSC FOR WORKING WITH PROPERTIES OSC protocol defines the transmission os messages or commands. But also can be used for reading and modification of device properties. After all, work with properties imply the transmission of commands: “Read command” or “Write command”...
  • Page 39 When a property changes, the device sends a number of notifications to the network, for controllers who are listening can update their values. These notifications are as follows: OSC Message multicast to IP 239.192.0.98 port 9001. This message path is formed as follows: /DEVICE_NAME:/ENTIRE_PATH OSC Message unicast to IP and ports that are registered as “listeners”.

  • Page 40: Overview Of The Blueline Protocol

    Common packets are always Unicast. The BlueLine Digital system allows grouping devices into zones. A zone is a set of devices that have the same logical behavior. For example: security zone, room zone.
  • Page 41 The addresses of BlueLine packets always have the following structure: /bl/[ZONE]/[MESSAGE] In the packet address the zone to which the message is intended is encoded. For a better understanding of the areas of the system, in to the master device can assign a name to each of existing areas.

  • Page 42: Packet Types In Bluline Protocol

    PACKET TYPES IN BLUELINE PROTOCOL There are several types of OSC packets depending the recipients that will be sending these packets. Unicast: -The packet is executed by a single device. The packet is sent to the IP address of the device. -For simplicity, the “zone”...

  • Page 43: Udp & Ip Protocols Configuration

    UDP AND IP PROTOCOLS CONFIGURATION All BlueLine messages are transmitted over UDP / IP. In the BL protocol the following IP Multicast addresses are used : 239.192.0.100: For the transmission of control messages 239.192.0. (101 + SOURCE): For the transmission of audio packets. Each SOURCE uses a different IP address.

  • Page 44: Blieline Protocol Packets

    BLUELINE DIGITAL PROTOCOL PACKETS Common OSC messages. OSC Address OSC Type Description Pattern Tag String Arguments Records the source IP address and port with the device for the reception of changes in properties /osc/add/UDP Foreign Port If port is 0 is taken as port the local port specified in the UDP packet.

  • Page 45: Basic Notions About Lan Networks

    BASIC NOTIONS ABOUT LAN NETWORK A local area network (LAN) is a group of devices connect in a located area in order to communicate between them and share resources like, for example, printers. Datas are sent in packets and, for this broadcasting, can be used several technologies.
  • Page 46 Properties of BlueLine devices: OSC Address OSC Type Description Pattern Tag String Arguments Indicates that the audio source is playing. /bl/[1]/source Source /bl/[1]/source/ Standalone The device is in standalone mode. standalone Zone Indicates the area of the device /bl/[1]/zone MASTER ONLY: /bl/[1]/zone/[2]/ Zone Name sets the name of zone...

  • Page 47: Basic Notions About Ip Protocol

    BASIC NOTIONS ABOUT IP PROTOCOL IP protocol is a software protocol which has not connection with network hardware (the main feature for network interlink). This protocol allows the network interlink independently from the hardware. IP addresses are 32 bit and divided in 2 fields: IP network identification and Host identification (from this network). IP adresses are represented in decimal format (4 octos separated by decimal dot) instead of to express as 32 bit number.
  • Page 48 The supply through Ethernet (PoE)(or Power Over Ethernet) allows to supplied the devices connected to the Ethernet network using the same cable4 that the used for data broadcast. The main advantage of PoE is the cost seving. It is no necessary to installa a separate electric line. It is very useful in zones with a difficult access due to that it is not necessary to installa an additional cable.
  • Page 49 IP protocol uses IP addresses in order to identify the source and the destiny ina datagram. But, the datagram travel inside a frame and it uses hardware addresses. By this reason, we need to use ARP protocol, to determinate the hardware address corresponding to IP address of the destinatary.The datagram is divided in two fields: - Head: It has the information that the protocol needs to offer the service - Data: It has the message itself.
  • Page 50 DISTRIBUIDOR EM PORTUGAL R. Sá de Figueiredo 6 – C 2790-233 Carnaxide Telef. (+351) 21 417 76 21 Fax. (+351) 21 030 00 31 Web: www.sislite.pt - email: geral.sislite@sislite.pt Designed by EQUIPSON, S.A. Avda. El Saler, 14 - Pol. Ind. L´Alteró, 46460 - Silla (Valencia) Spain Tel.
