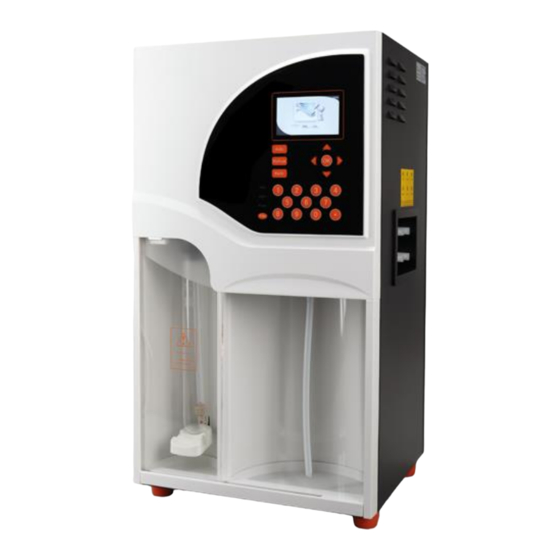

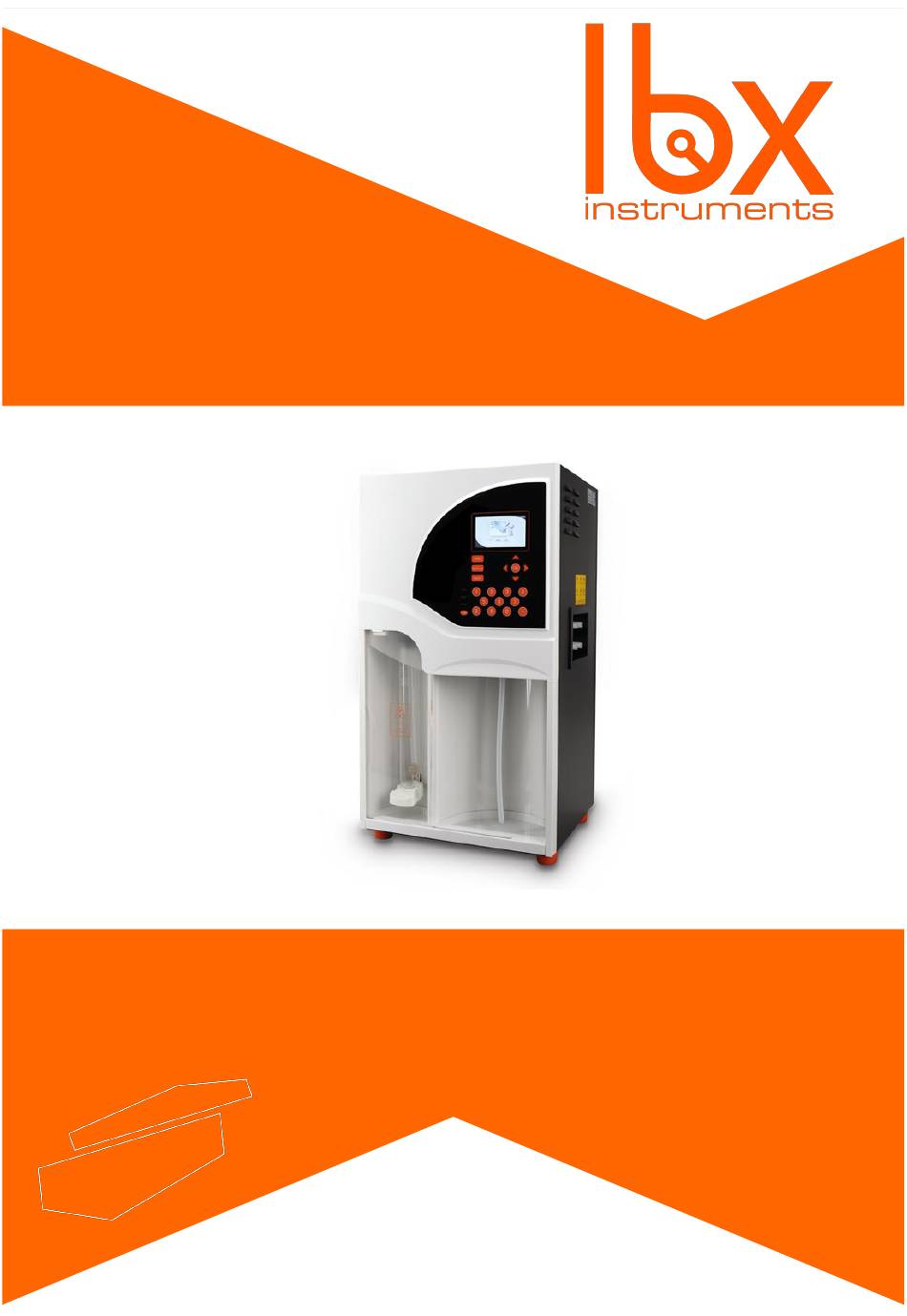

- Page 1 KJD20 Kjeldahl Automatic Distiller Please read the User Manual carefully before use and follow all operating and safety instructions! user manual english...
-
Page 2: Important Notice
In order to guarantee this equipment Works safely and efficiently, it must have a regular maintenance. In case of any faults, do not try to repair it yourself. If help is needed, you can always contact your dealer or Labbox via www.labbox.com... - Page 3 I. Safety 1. Overview This operating manual is prepared for the laboratory instrument operators. Please read this manual carefully before using the instrument and conduct the operation according to the manual. Personnel who are not familiar with the instrument operation or safety information shall not operate the instrument.
- Page 4 Warning: Please use the power line provided by manufacturer. Other power lines will affect the safety performance of the instrument. Warning: This instrument is equipped with the special grounding power plug for preventing electric shock. Please use the grounding receptacle. Warning: Electric shock hazard.
- Page 5 3. Guidance for Waste Disposal It is not allowed to discard the electronic devices together with non-classified general waste. Improper disposal will produce damage to the environment and human health. Please refer to the local waste disposal regulations for collection and disposal of the equipment. 4.
-
Page 6: Specifications
2. Theory According to the Kjeldahl theory, there are three processes including digestion, distillation and titration in the test. The Kjeldahl Distillation Unit is able to execute the distillation process automatically. The chemical reactions listed below occur after a sample has been completely digested. ⎯... -
Page 7: Installation Instruction
IV. Names of Kjeldahl Distillation Unit Parts The Kjeldahl Distillation Unit is a special system, which can automatically distill the completely digested samples and show the workflow in real time mode. The system mainly consists of a microcontroller, steam generator, distillation system and an automated reagent dispensing system. The exterior structure is shown in the following diagram: Fig. - Page 8 The power supply should meet the specified requirement, which must have ground wire, independent power switch and fuse protection to guarantee the safety of operators. The Kjeldahl Distillation Unit should be far away from any big-scale electric equipment, and its working environment should be free of vibration and electromagnetic interference, in which there is no corrosive substances.
-
Page 9: Sample Preparation
Back View (Fig. 4): Fig. 4. Back view 14. Power switch 15. Power cord socket 16. Fuse device The power cord can be plugged into the power cord socket (15). The blown fuse can be replaced in the fuse device (16) (There is a spare fuse in the fuse socket). Slide the power switch (14) to turn on the instrument. - Page 10 2. Operation Panel: Fig. 5 1. Easy -touch keypad and keys with protective film. 2. Environmentally friendly LCD with blue background light. 3. Heating indicator, which can be on or off according to the distillation process. 4. Warning indicator, which is on when there is any malfunction in the system or any necessary factor is missed in the distillation stage.
- Page 11 4. Operation Modes For the Kjeldahl Distillation Unit After Start-up The Kjeldahl Distillation Unit will enter the initial interface shown in Fig. 1 after start-up: Fig. 1 The initial interface provides three modes: test, maintenance and help. You may use 【Left】 and 【Right】...
- Page 12 I Test 1 Automatic Test The Kjeldahl Distillation Unit Enters automatic test parameter interface shown in Fig. 3 Fig. 3 Press 【 Up 】 , 【 Down 】 , 【 Left 】 , 【 Right 】 keys to target the parameter, and press 【Number】key for modification.
- Page 13 The icon during operation is shown in Fig. 6. Fig. 6 You may press 【Stop】key to end the experiment. The first interface on completion of the test is shown in Fig. 7. Fig. 7 2 Manual test The system will offer safety notes first, as shown in Fig. 8, when you select the manual test interface.
- Page 14 Fig. 9 Input the volume of boric acid to be added with 【Number】key and press 【OK】key for adding, as shown in Fig. 10. Fig. 10 You may press 【Stop】key to stop adding during the experiment. 3 Maintenance Maintenance includes flushing of alkali piping, liquid adding for calibration, function commissioning, safety setting and flushing of alkali piping.
- Page 15 Fig. 12 Press 【OK】key for flushing of alkali piping, otherwise press 【Back】key for exit. The interface for alkali piping flushing is shown in Fig.13, and it will Back to maintenance interface after flushing. Fig. 13 Liquid adding for calibration Liquid adding for calibration includes calibration by dilution water, alkali solution, boric acid solution or drip washing water, as shown in Fig.
- Page 16 Fig. 15 The instructions on the interface shall be observed strictly prior to calibration. When everything is ready, press 【OK】key and the Kjeldahl Distillation Unit starts adding liquid to the digestion duct through the dilution water valve. Liquid adding will end with a “tick” sound and the dialogue box will appear in lower part of the interface, as shown in Fig.16.
- Page 17 Function Commissioning Function commissioning is aimed at testing each component to see whether it is in normal operation condition, as shown in Fig. 18. Press 【Up】,【Down】,【Left】,【Right】keys for selection of corresponding components. Press 【OK】key for opening and press it again for closing. Correct positioning of the protection door, digestion duct, water level cup and condensed water is for supervision of the Kjeldahl Distillation Unit safety.
-
Page 18: Regular Maintenance
VIII. Regular Maintenance 1. Because during operation, the Kjeldahl Distillation Unit will perform the distillation process that generates heat, a good ventilation and heatsink are required. 2. Wash away the sediments in the alkali solution bottle and boric acid bottle and clear them up regularly. -
Page 19: Common Problems And Troubleshooting
IX. Common Problems and Troubleshooting Problem Cause Troubleshooting The fuse is burned or the power cord is not Replace the fuse or correctly plug in the No power plugged in firmly power cord Water in distilling bottle has Malfunction in heating controller or something 1. - Page 21 www.labbox.com...
