UNBOXING & ASSEMBLY instructions
GB:
WARNING
ES:
IMPORTANTE
F:
IMPORTANT
DE:
ACHTUNG
I:
IMPORTANTE
P:
IMPORTANTE
RUS:
NL:
BELANGRIJK
S:
VIKTIGT
重要なことがわからない場合は、Red Shark Bikesにお問い合わせください。
JP:
Before anything, read user's manuals
reference. Incorrect handling of this product could possibly result in personal injury or physical damage. The manufacturer assumes no responsibility for any damage caused by
mishandling that is beyond normal usage defined in these manuals of this water bike
IF YOU DO NOT AGREE FULLY TO ALL OF THESE PROVISIONS, YOU SHOULD NOT USE RED SHARK BIKES PRODUCTS.

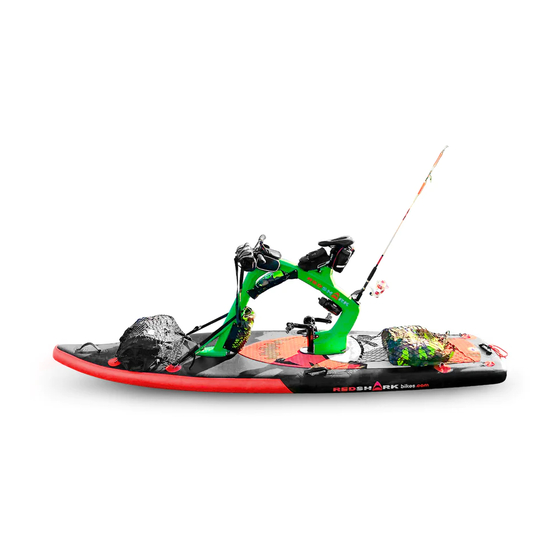

BIKE SURF
(Personal Water Craft)
If you don't understand something please contact to Red Shark bikes.
Si no entiende algo, por favor contacte con Red Shark Bikes.
Si vous ne comprenez pas quelque chose, veuillez contacter Red Shark Bikes.
Wenn Sie etwas nicht verstehen, wenden Sie sich bitte an Red Shark Bikes.
se non capisci qualcosa, contatta Red Shark Bikes.
Se você não entender alguma coisa, entre em contato com a Red Shark Bikes.
ВАЖНО
Если вы что-то не понимаете, пожалуйста, свяжитесь с Red Shark Bikes.
als u iets niet begrijpt, neem dan contact op met Red Shark Bikes
Om du inte förstår något, vänligen kontakta Red Shark Bikes.
of this water bike to ensure correct usage through understanding. After reading, store them in a safe place for future

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADVENTURE and is the answer not in the manual?

Questions and answers

Julie Casey
May 1, 2025

I just purchased a red shark bike, and there are no instructions

Summary of Contents for RedShark Bikes ADVENTURE

  • Page 1 BIKE SURF (Personal Water Craft) UNBOXING & ASSEMBLY instructions WARNING If you don't understand something please contact to Red Shark bikes. IMPORTANTE Si no entiende algo, por favor contacte con Red Shark Bikes. IMPORTANT Si vous ne comprenez pas quelque chose, veuillez contacter Red Shark Bikes. ACHTUNG Wenn Sie etwas nicht verstehen, wenden Sie sich bitte an Red Shark Bikes.
  • Page 2 ASSEMBLY INSTRUCTIONS ADVENTURE model FITNESS model ENJOY model...
  • Page 3 & elements PARTS ENJOY model...
  • Page 4 & elements PARTS FITNESS model...
  • Page 5 & elements PARTS ADVENTURE model...
  • Page 6 ASSEMBLY INSTRUCTIONS Please open the 2 boxes (from top side) and carefully remove all parts from the box. Remove all plastic bags and protections carefully. Plastic bags can be dangerous, to avoid danger of suffocation, keep all the bags WARNING: away from all babies, children, and house pets.
  • Page 7 & elements PARTS ENJOY model 5. Seat post CLAM 11. SADDLE 13. RUDDER 15. Frame CLAM 1. FRAME B 33. SADDLE cover 15. Frame CLAM 16. PEDALS: LEFT & 12. Seat POST RIGHT 18. PROPELLER C 16. PEDALS: CRANK 0. PACKING list (outside the box) 18.
  • Page 8 & elements PARTS FITNESS model 15. Frame CLAM 13. RUDDER 5. Seat post CLAM 1. FRAME B 16. PEDALS: 11. SADDLE 15. Frame CLAM LEFT & 16. PEDALS: CRANK RIGHT 12. Seat POST 18. PROPELLER D 18. PROPELLER C 18. PROPELLER A 0.
  • Page 9 & elements PARTS ADVENTURE model 5. Seat post CLAM 13. RUDDER 1. FRAME B 11. SADDLE 15. Frame CLAM 33. SADDLE cover Rear saddle Top frame BAG 16. PEDALS & CRANKS left & right 12. Seat POST 15. Frame CLAM 0.
  • Page 10: Board Assembly

    ASSEMBLY INSTRUCTIONS BOARD assembly 4.1. Extend the board...
  • Page 11 ASSEMBLY INSTRUCTIONS BOARD assembly (Puff up /step 1 from 2) 4.2. Use the AIR PUMP to have only a LITTLE PRESSURE to get the basic shape. Check the position of the Puff up the air Unscrew the cap. Insert the air Remove the valve spout pump...
  • Page 12: Frame Assembly

    ASSEMBLY INSTRUCTIONS FRAME assembly CHOSE the frame piece “A”:...
  • Page 13 ASSEMBLY INSTRUCTIONS FRAME assembly In the FRONT HOLE KEEP ATTENTION: The A & B Holes surface, must be completely clean from dust, sand and other dirty elements. If not it could generate damages on the board skin. Please clean always before. AVOID THE INTERFERENCES from the rudder and propeller with the board surface (holes A and B) if not it could generate damages...
  • Page 14: Handlebar Assembly

    ASSEMBLY INSTRUCTIONS HANDLEBAR assembly Insert the handlebar in the STEM TIGHT the 4 screws: TORQUE SPECIFICATIONS 6 Newtons...
  • Page 15: Rudder Assembly

    ASSEMBLY INSTRUCTIONS RUDDER assembly Insert the rudder BAR in to the frame TOP hole 5.2. Pull the ruder post up to the screw BOTTOM hole...
  • Page 16 ASSEMBLY INSTRUCTIONS RUDDER assembly Insert the rudder post to the STEM 7.3. Line up the Tight the 2 screws Handle Bar handle bar with the rudder. Stem TORQUE SPECIFICATIONS 6 Newtons ALIGNMENT WITH THE RUDDER bar W ith the white mark in the center of the stem.
  • Page 17 ASSEMBLY INSTRUCTIONS RUDDER assembly Unscrew wing nut RUDDER FUNCTION “T” for transport Chose the position POSITIONS: T: transport • I: level1 • II: Level 2 • III: Level 3 “T”(transpor) Screw wing nut Level I to GO TIGHT the wing nut: TORQUE SPECIFICATIONS 3 Newtons...
  • Page 18 ASSEMBLY INSTRUCTIONS FRAME “B” assembly CHOSE the frame piece “B”:...
  • Page 19 ASSEMBLY INSTRUCTIONS FRAME “B” assembly TRANSMISION assembly: 8.3Untight the 3 bolts...
  • Page 20 ASSEMBLY INSTRUCTIONS FRAME “B” assembly Transmission LEVEL assembly:...
  • Page 21 ASSEMBLY INSTRUCTIONS FRAME “B” assembly PLEAE CHECK the transmission DIRECTION assembly:...
  • Page 22 ASSEMBLY INSTRUCTIONS FRAME “B” assembly Align with the central marked line Transmission ALING: From top side From TOP side From BOTTOM side...
  • Page 23 ASSEMBLY INSTRUCTIONS FRAME “B” assembly Transmission screws TIGHTEN: Tighten all the 3 screws TIGHT the 3 bolts: TORQUE SPECIFICATIONS 6 Newtons Bolt & Locknut Please use a tool 13 (NOT INCLUDED)
  • Page 24 ASSEMBLY INSTRUCTIONS FRAME “B” assembly INSERT the frame in the REAR HOLE with a little air pressure in the board KEEP ATTENTION: The A & B Holes surface, must be completely In the REAR HOLE clean from dust, sand and other dirty elements. If not it could generate damages on the board skin.
  • Page 25 ASSEMBLY INSTRUCTIONS FRAME “C” assembly CHOSE the frame piece “C”:...
  • Page 26 ASSEMBLY INSTRUCTIONS FRAME “C” assembly INSERT the frame “C” in to the frame “A” & “B”.
  • Page 27 ASSEMBLY INSTRUCTIONS FRAME “C” REAR unión assembly TIGHT the screw through tre two frames with the clamp using the LONGER Allen key...
  • Page 28 ASSEMBLY INSTRUCTIONS FRAME assembly (front union) TIGHT the Bolt: IMPORTANT: TIGHT with the TORQUE SPECIFICATIONS FULL POWER 8,5 Newtons...
  • Page 29 ASSEMBLY INSTRUCTIONS FRAME & BOARD (position) 10.1 Confirm the frame position: Must be in a vertical position (90º towards the board) FRONT view SIDE view 90º 90º 90º...
  • Page 30 ASSEMBLY INSTRUCTIONS FRAME & BOARD 10.1 PUFF UP the FINAL AIR PRESSURE From 13 to15 PSI 10.2 screw the cap onto the valve...
  • Page 31: Saddle Assembly

    ASSEMBLY INSTRUCTIONS SADDLE assembly 11.1 Untight the bolt, adjust the seat to your 11.2 SADDLE position adjustment position and tight the bolt. 7 Newtons TORQUE SPECIFICATIONS:...
  • Page 32 ASSEMBLY INSTRUCTIONS SADDLE assembly in the frame C 11.4 Check your height 11.3 Open and adjust seat Post CLAMP position 11.6 SADDLE position adjustment 11.5 TIGHT the post clamp Adjustment recommendations Untight the bolt, adjust the seat to your position and tight the bolt. TORQUE SPECIFICATIONS SEAT POST: •...
  • Page 33: Pedals Assembly

    ASSEMBLY INSTRUCTIONS PEDALS assembly 12.2 Find the pedals SIDE 12.1 Remove Bold and washer EFT crank mark IGTH crank mark Screw the bold with the washer in to the transmisión axel side IGTH side TORQUE SPECIFICATIONS 10 Newtons front Insert the PEDAL crank Insert the WASHER Tight the 2 BOLDS direction...
  • Page 34: Propeller Assembly

    ASSEMBLY INSTRUCTIONS PROPELLER assembly 13.3 Needle placement 13.1 Remove carefully the plastic protection 13.2. Remove the bold and washer 13.4 PROPELLER placement 13.5 Tight the bolt and the washer TORQUE SPECIFICATIONS 4 Newtons...
  • Page 35: Fin Assembly

    ASSEMBLY INSTRUCTIONS FIN assembly 14.1 Insert the fin in the board (bottom rear) slot until the end. Slide the fin onto the bottom side of the board until the end and cross the pin until you hear a click. 14.2 and cross the pin on the hole fin until you hear a click.
  • Page 36 ASSEMBLY INSTRUCTIONS TRANSPORT & MANIPULATION NOTE: TROLLEY is an extra equipment Trolley BELT...
  • Page 37 ASSEMBLY INSTRUCTIONS TRANSPORT & MANIPULATION 15.2. PROPELLER: RUDDER: in “T” 15.3. 15.1. REMOVE the FIN in HORIZONTAL (HORIZONTAL position) position keep the and the ALWAYS PROPELLER RUDDER HORIZONTAL POSITION until you reach the minimum W ATER Dept of 60 cm...
  • Page 38: Transport Options

    ASSEMBLY INSTRUCTIONS TRANSPORT OPTIONS Most MOST recommended recommended...
  • Page 39 ASSEMBLY INSTRUCTIONS BEFORE RIDING check 16.1. FIN position MINIMUM 16.2. RUDDER in VERTICAL position DEPTH: 0,6 m...
  • Page 40 TO GET ON INSTRUCTIONS HOW TO GET ON from water: PRACTICE THIS ACTIONS until you really know, before start 17.1 ALWAYS From REAR 17.2 SEAT on top of the board 17.3 Move in to the center and...
  • Page 41 TO GET ON INSTRUCTIONS HOW TO GET ON from a wharf, boat or similar: Always parallel & from the side Grab the handlebar and do not transfer the weight of your body (from the 2º foot on firm ground) until you have the 1st foot in the center of the board.
  • Page 42 NOTES FIRST TIME: Do it on a calm water with no wind and with the comfort propeller. First moments are the most stressful ones, so you should ride smooth and constantly in a straight line. As soon as you feel stable please turn (left or right) very smoothly but with a constant pedalling. You may have a feeling of having a very smooth roll, this is normal, but it is misleading, your will see, after 30 minutes of pedalling fairly at a medium rate, the strength on your legs.”...
  • Page 43: Warnings And Precautions

    WARNINGS & PRECAUTIONS WARNING PROHIBITION ATENÇÁO / ADVERTENCIA. ACHTUNG / VAROITUS / PROIBIDO / PROHIBICIÓN / VERBOT. KIELTO / VERBOD / DIVIETI / INTERDICTION / W AARSCHUWING / AVVERTENZA / ATTENTION / ZAKAZ / TILTÁS / FÖRBUD. OSTRZEZENIE / FIGYELMEZTETÉS / VARNIG AIR: 13 -14 psi WEAR DO NOT USE IN...
  • Page 44 IMPORTANT: Always wear an approved Personal Flotation Device NEVER use the Red Shark to go further than you can swim, on your own power Like any other device, there is a chance of product failure, always ensure that such failure will not put you in danger Never use under the influence of drugs narcotic substances or alcohol Children and minors under 18 years old, must be used only under adult supervision.
