Summary of Contents for Archers Sleepcentre Belgravia

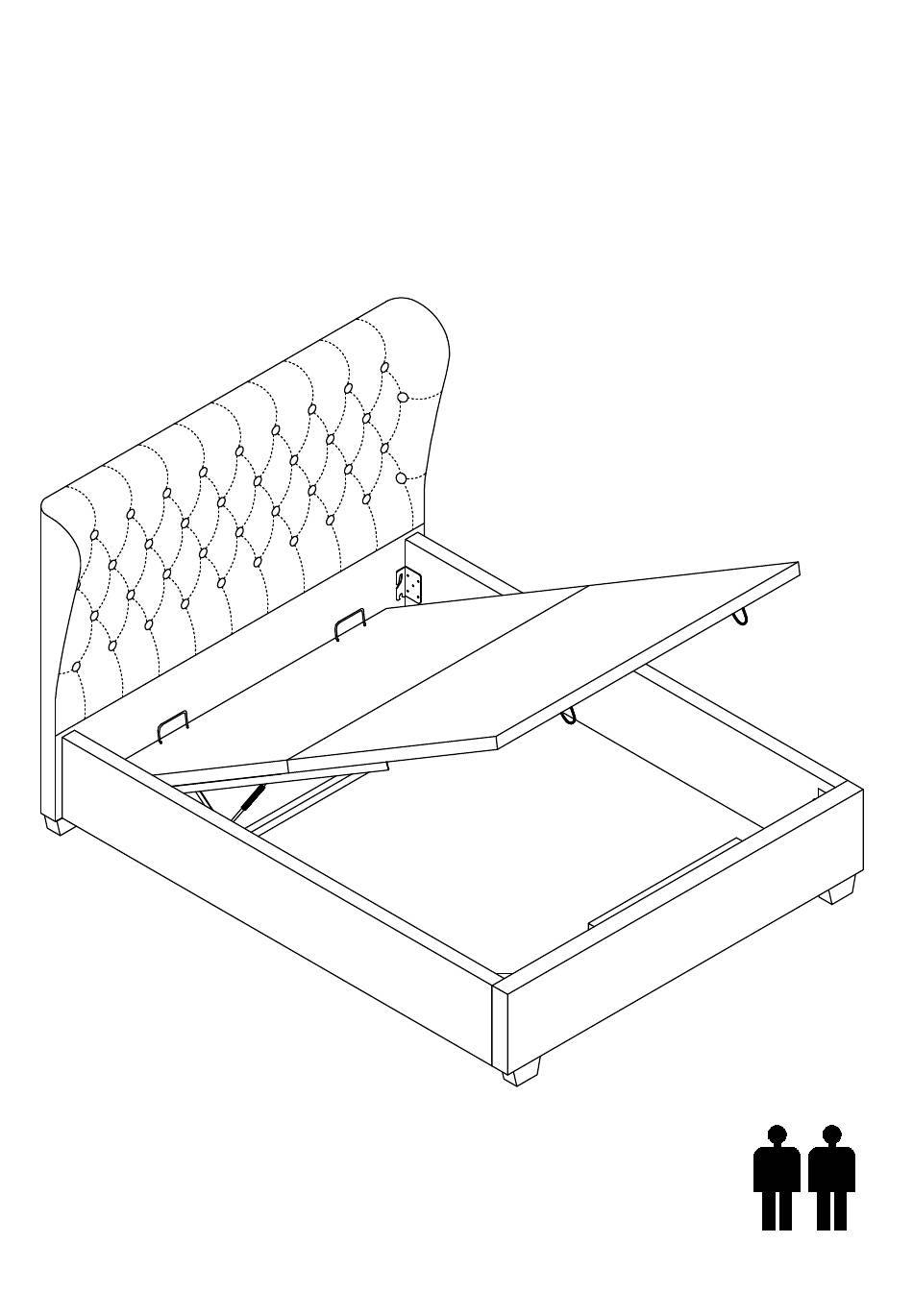

- Page 1 Assembly & Care Instructions Belgravia Boarded Top Gas Lift Frame ( 180 cm ) TWO PERSONS HANDLING P1 / 12 v20210528...
- Page 2 No Extra Tools Required Call your supplier P2 / 12...
-
Page 3: Safety Advice
Safety Advice Please read these instructions carefully before you begin, when finished store safely for future reference. It would be sensible to lay down a sheet or blanket on the floor in the room you are going to assemble the product in, this will help to avoid scratching the product and will help to protect the floor. - Page 4 HARDWARE M8 x 25 mm (16 pcs) M8 x 40 mm (27 pcs) M8 x 90 mm (4 pcs) CHECK NUT (4 pcs) NUT (4 pcs) FLAT WASHER (43 pcs) FLAT WASHER (LARGE) (4 pcs) 5mm ALLEN KEY (1 pcs) SPANNER (1 pcs) ATTENTION: Item A &...
- Page 5 WRONG CORRECT P5 / 12...
- Page 6 ATTENTION: The piston must be fitted wide end to the top as shown in the Assembly Instruction. Do not overtighten the nuts. P6 / 12...
- Page 7 Black Gold Please ensure the black part of the gas piston is at the top. P7 / 12...
- Page 8 ATTENTION: Unzip the cover underneath the base to connect the two bases together. P8 / 12...
- Page 9 P9 / 12...
- Page 10 The base of this bed is made from wood and will bend very slightly over time. This is quite normal but will not affect your sleep. P10 / 12...
-
Page 11: General Care
General Care Vacuum the fabric area on a regular basis to take out any surface dust or grit. Avoid the use of all household cleaners and abrasives. Never drag or push the pieces across the floor as this will cause damage to the joints and could result in failure to the product that will invalidate the warranty. - Page 12 Notes We've tried to make this piece of furniture as easy to assemble as possible. In the unlikely event that you have problems putting it together or have damaged or missing pieces, please contact your supplier. If for any reason you need to contact your store, please give them Batch No.
