Installing a JCS 1200 Media Tray

Related Topics
Figure 1 on page 1 shows how to install a media tray.

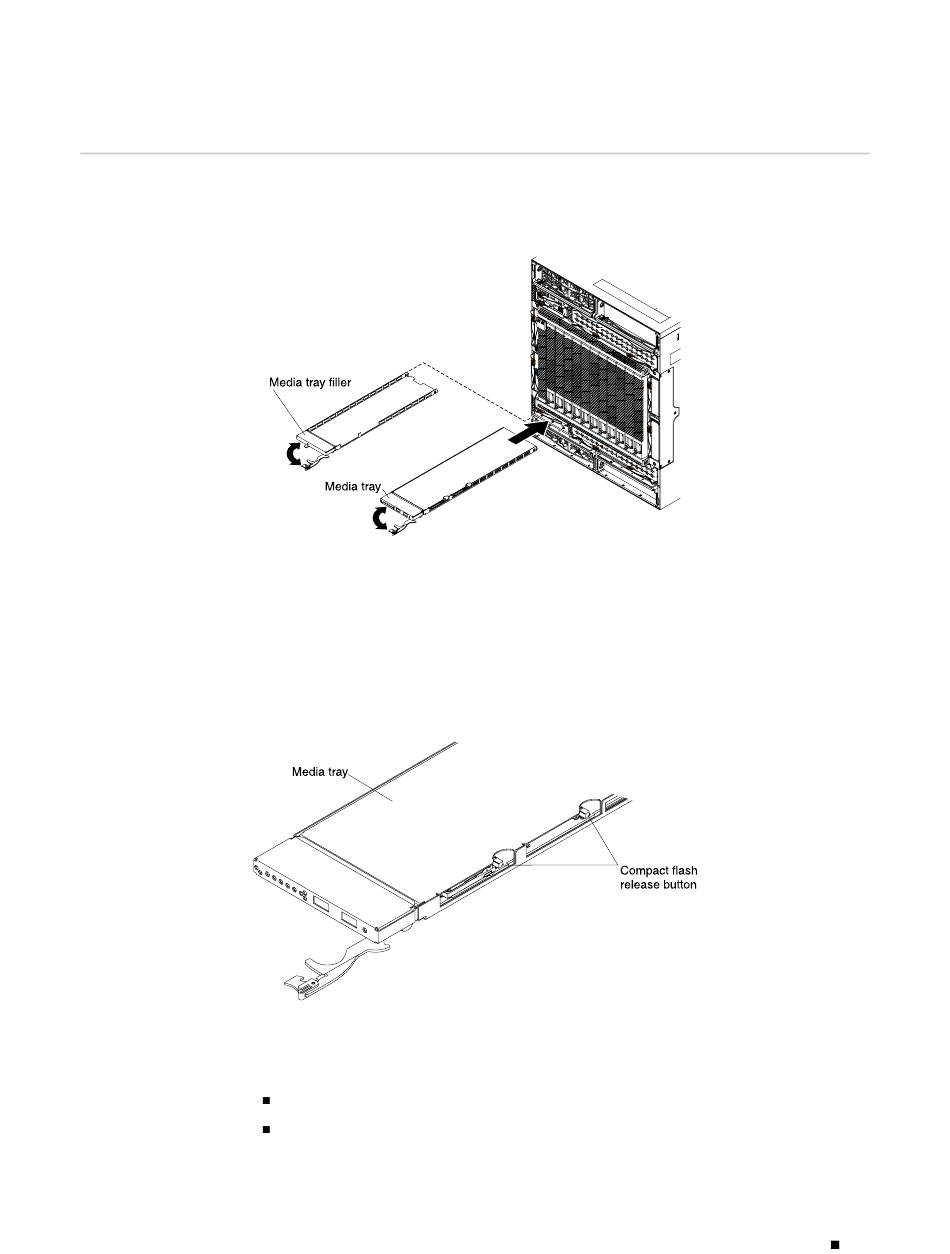

Figure 1: Installing a JCS 1200 Media Tray
To install a media tray (see Figure 1 on page 1):
Attach an electrostatic discharge (ESD) grounding strap to your bare wrist and
1.
connect the strap to one of the ESD points on the chassis.
Make sure that the media tray release lever is in the open position and the
2.
compact flash release buttons are pushed into the in position.
Figure 2: Positioning the Release Lever and Button on the JCS 1200 Media Tray
Slide the media tray into position until it stops and locks into place.
3.
Rotate the media tray release lever to the closed position.
4.
