PRODUCT DESCRIPTION
Product Description and Application

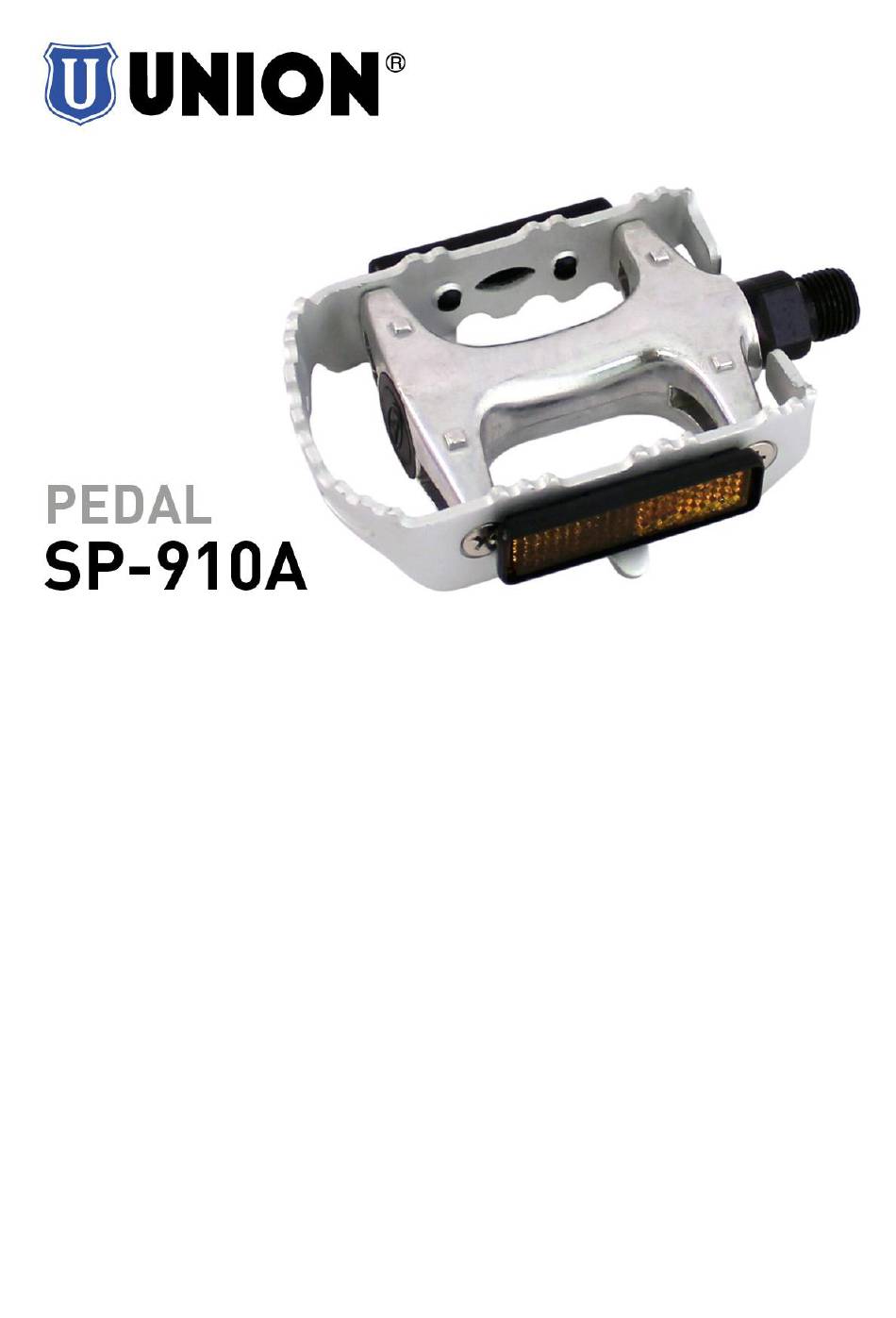

A bicycle pedal with an aluminium centre body and an aluminium tread cage, specially designed to use on trekking
and mountain bikes.
FEATURES
• The pedals are equipped with durable cone ball bearings
• The pedals come with attached and approved retro-reflectors on both sides
TECHNICAL INFORMATION
Pedal type
"Aluminium Cage Pedal" comes with:
• Aluminium body, die cast, shiny ball polished
• Tread cage made of aluminium, silver anodized.
Bearing
• Adjustable cone ball bearing system, on both sides
• With 13 x 1/8" bearing balls each side
Axle
• Boron-steel, heat treated to 75HRA (+/-3) case hardness
• With 9/16" x 20TPI threading
Retro Reflectors
• "Snap on" reflectors on both sides
• Approved (BS, JIS, TPP) and in accordance with German StVZO regulations (K370/K369)
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Union SP-910A
Summary of Contents for Union SP-910A
- Page 1 PRODUCT DESCRIPTION Product Description and Application A bicycle pedal with an aluminium centre body and an aluminium tread cage, specially designed to use on trekking and mountain bikes. FEATURES • The pedals are equipped with durable cone ball bearings • The pedals come with attached and approved retro-reflectors on both sides TECHNICAL INFORMATION Pedal type “Aluminium Cage Pedal”...
- Page 2 Dimensions 102* x 63 x 26 mm (*Length x Width x Height) *Length = maximum pedal length while mounted (protruding out of the crank) Weight 366 g/pair Standards The pedal passed the TÜV test and is certificated to meet the EN standard EN-14766 “Mountain-Bicycles - Safety requirements and test methods”...
