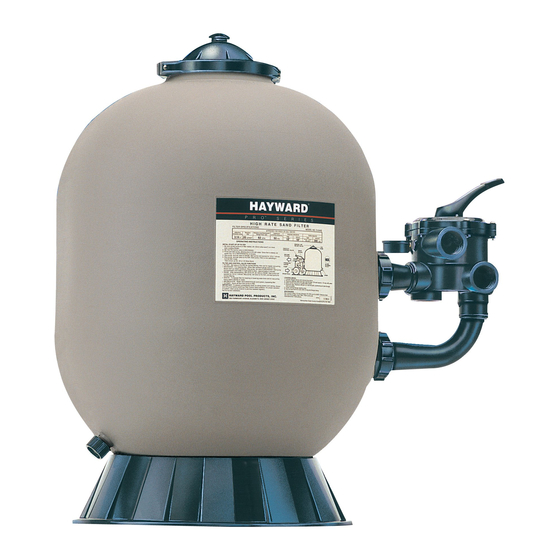

PRO™ SERIES HIGH RATE SAND FILTERS
Basic safety precautions should always be followed, including the following: Failure to follow instructions can cause severe
injury and/or death.
This is the safety-alert symbol. When you see this symbol on your equipment or in this manual, look for one of the
following signal words and be alert to the potential for personal injury.
WARNING
warns about hazards that could cause serious personal injury, death or major property damage and if
ignored presents a potential hazard.
CAUTION
warns about hazards that will or can cause minor or moderate personal injury and/or property damage
and if ignored presents a potential hazard. It can also make consumers aware of actions that are unpredictable and unsafe.
The NOTICE label indicates special instructions that are important but not related to hazards.
Use only High Rate Sand No. 20 Silica Sand (.45mm - .55mm)
HAYWARD POOL PRODUCTS, INC.
620 Division Street
OWNER’'S MANUAL
INSTALLATION, OPERATION & PARTS
MODELS S210S, S244S
SAVE THIS INSTRUCTION MANUAL
Elizabeth, NJ 07207
WWW.HAYWARDPOOL.COM
Tel: 908-351-5400
IS210S-06
Rev B
Advertisement
Table of Contents
Related Manuals for Hayward Pool Products S210S
Summary of Contents for Hayward Pool Products S210S
- Page 1 IS210S-06 Rev B OWNER’’S MANUAL INSTALLATION, OPERATION & PARTS MODELS S210S, S244S PRO™ SERIES HIGH RATE SAND FILTERS Basic safety precautions should always be followed, including the following: Failure to follow instructions can cause severe injury and/or death. This is the safety-alert symbol. When you see this symbol on your equipment or in this manual, look for one of the following signal words and be alert to the potential for personal injury.
- Page 2 Page 2 of 8 MODEL S210S, S244S IS210S-06 Rev B - WARNING - Read and follow all instructions in this owner’’s manual and on the equipment. Failure to follow instructions can cause severe injury and/or death. WARNING –– Suction Entrapment Hazard.
-
Page 3: How It Works
Page 3 of 8 MODEL S210S, S244S IS210S-06 Rev B WARNING –– Electrical Ground motor before connecting to electrical power supply. Failure to ground pump motor can cause serious or fatal electrical shock hazard. –– WARNING Do NOT ground to a gas supply line. -
Page 4: Service And Repairs
2 minutes. This initial backwashing of the filter is No returns may be made directly to the factory without the recommended to remove any impurities or fine sand expressed authorization of Hayward Pool Products, Inc. particles in the sand media. PLEASE REALIZE: Turn pump off and set valve to RINSE position. -
Page 5: Specifications
Manual Air Relief Cap SX200Z5 O-RING, 13/16”” O.D. SX244K Top Closure Dome GMX600F Valve/tank o-ring GMX600NM Flange Clamp SX210AA2FW Filter Tank w/Base, S210S SX244AA2FW Filter Tank w/Base, S244S SX244G Top Diffuser SX210CD1FW Top Elbow Assembly (S210S) SX244CD1FW Top Elbow Assembly (S244S) SX210CD2FW... -
Page 6: Product Registration
Page 6 of 8 MODEL S210S, S240T IS210S-06 Rev B MAXIMUM RECOMMENDED SYSTEM FLOW RATE BY PIPE SIZE Pipe Size Flow rate Pipe Size Flow rate Pipe Size Flow rate [mm] GPM [Liter/Min] [mm] GPM [Liter/Min] [mm] GPM [Liter/Min] 1””... - Page 7 Hayward Pool Products, Inc. To original purchasers of this equipment, Hayward Pool Products, Inc. warrants its vacuum release systems to be free from defects in materials and workmanship for a period of ONE (1) year from the date of purchase.
- Page 8 Page 8 of 8 MODEL S210S, S240T IS210S-06 Rev B THIS PAGE LEFT BLANK WWW.HAYWARDPOOL.COM USE ONLY HAYWARD GENUINE REPLACEMENT PARTS...
