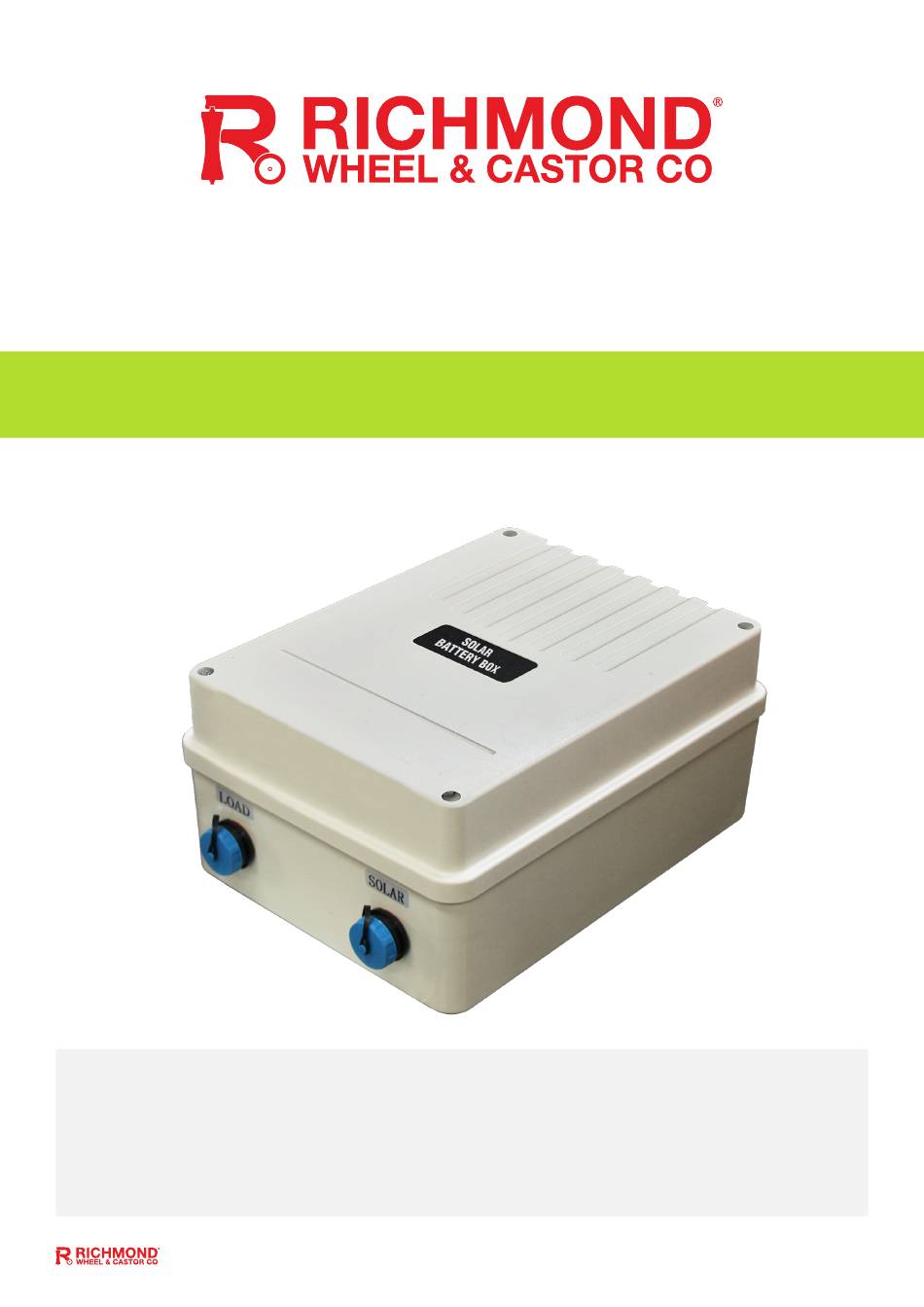

Solar Battery Pack
for Gate Motors GTR205
Suits the Following Richmond Gate Motors:
GTR064, GTR061, GTR207, GTR099 GTR058, GTR062, GTR078
Take your automatic gate off the grid – this solar battery pack contains almost everything you
need to convert your automatic gate into a self-sufficient solar powered gate solution.
SOLAR PANEL
(GTR049)
SOLD SEPARATELY
Instructions must be read before beginning installation. Please follow these instructions carefully,
incorrect installation could affect gate operation. If you require more information, please contact
your local Richmond Wheel & Castor Co branch.
AU: 1300 474 246
NZ: 0800 61 71 81
International: +613 9551 2233
For installation or troubleshooting assistance visit gatesupport.richmondau.com
GTR205 Installation Manual: Rev 2
1
