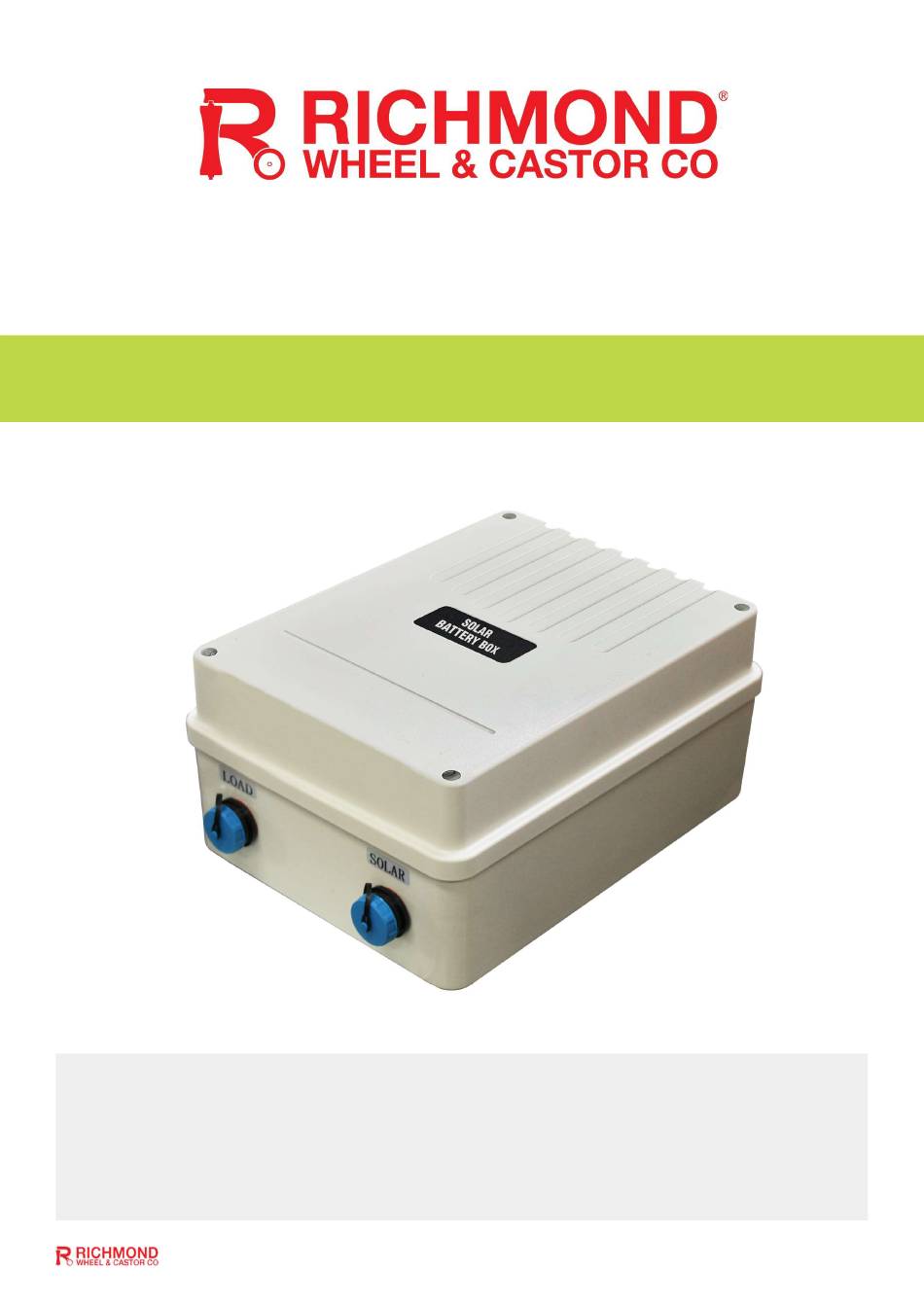

Solar Battery Pack for
Richmond Gate Motors GTR205
Suits the Following Richmond Gate Motors:
GTR061, GTR064, GTR207, GTR099 GTR058, GTR062, GTR078
Take your automatic gate off the grid – this solar battery pack contains
almost everything you need to convert your automatic gate into a self-sufficient
solar powered gate solution.
GTR205
Solar Panel (GTR049) Sold Separately
Instructions must be read before beginning installation. Please follow these instructions carefully,
incorrect installation could affect gate operation. If you require more information, please contact
your local Richmond Wheel & Castor Co branch.
AU: 1300 474 246
NZ: 0800 61 71 81
International: +613 9551 2233
For installation or troubleshooting assistance visit gatesupport.richmondau.com
GTR205 Installation Manual: Rev 3
1
Advertisement
Related Manuals for Richmond GTR205
Summary of Contents for Richmond GTR205
- Page 1 Instructions must be read before beginning installation. Please follow these instructions carefully, incorrect installation could affect gate operation. If you require more information, please contact your local Richmond Wheel & Castor Co branch. AU: 1300 474 246 NZ: 0800 61 71 81 International: +613 9551 2233 For installation or troubleshooting assistance visit gatesupport.richmondau.com...
- Page 2 GTR205 Solar Battery Pack: How it Works The solar panel charges the batteries via the solar regulator, the batteries store the voltage generated from the solar panel to run your gate. Solar Panel (GTR049) Sold Separately Supplied with this box is a red battery jumper cable.
- Page 3 CAUTION: The correct connection process listed below must be followed to avoid component damage during installation. 1. Mount the GTR205 solar battery pack within 1.5m of your gate opener. 2. Remove the plastic cover from the battery pack. 3. Connect the electrical components and cables in the order shown below.
- Page 4 Connecting to the GTR064 Sliding Gate Motor GTR205 Installation Manual: Rev 3...
- Page 5 Connecting to the GTR207 & GTR061 Sliding Gate Motors GTR205 Installation Manual: Rev 3...
- Page 6 Connecting to the GTR058 Swing Gate Motor GTR205 Installation Manual: Rev 3...
- Page 7 Connecting to the GTR099 Swing Gate Motor GTR205 Installation Manual: Rev 3...
- Page 8 Connecting to the GTR062 or GTR078 Swing Gate Motors GTR205 Installation Manual: Rev 3...
- Page 9 How to connect a single battery for charge? Richmond recommends connecting one 12v battery to one 12v charger to recharge your battery. When recharging your battery always remember to connect the positive charger (red) output to the positive (+) battery terminal. The negative charger output (black) connects to the negative battery (-) terminal.
