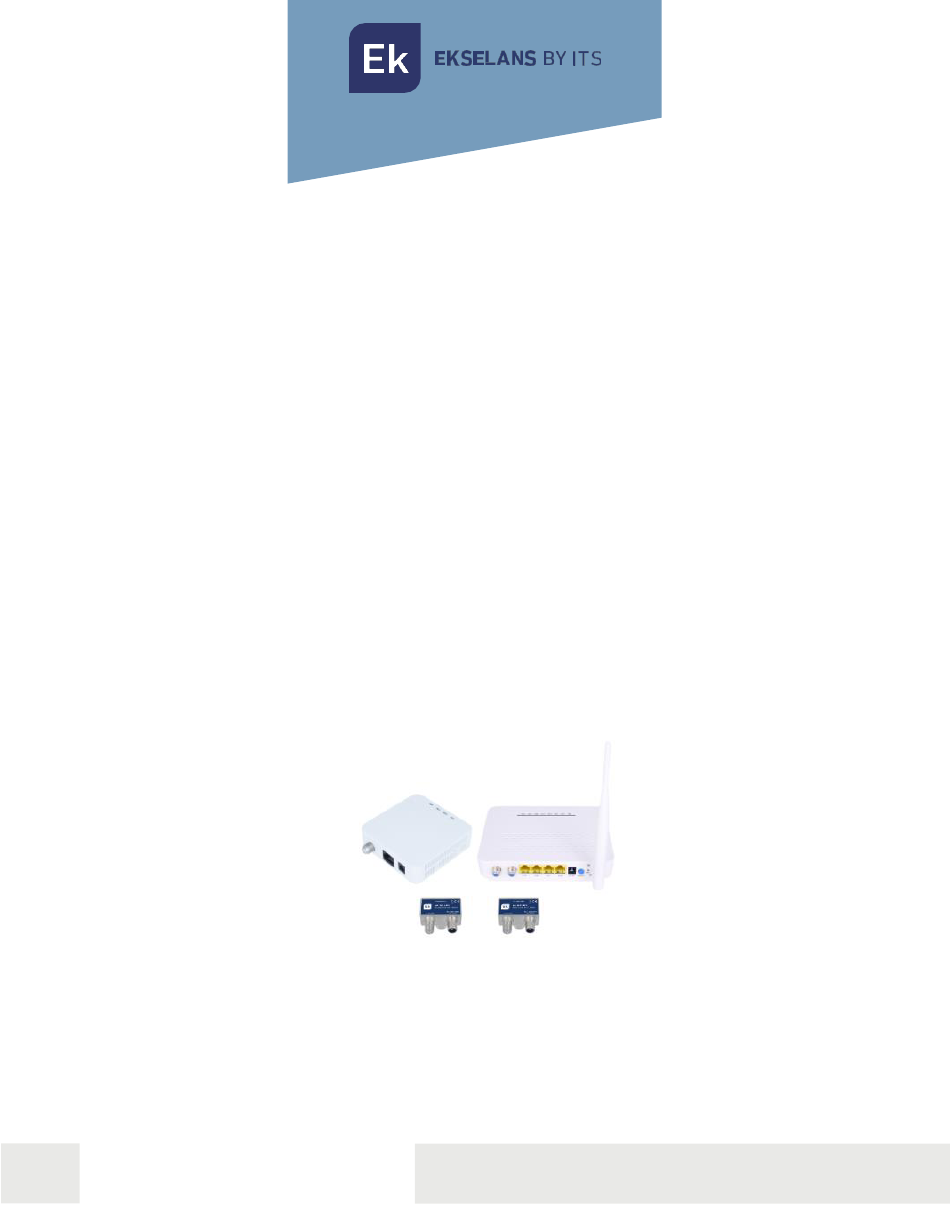

- Page 1 USER MANUAL KIT IP-W 250023 EKOAX Plug&Play Installation Kit ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Phone: +34935839543 · info@ek.plus · www.ek.plus...
- Page 2 USER MANUAL KIT IP-W TABLE OF CONTENTS Installation ..............................................3 Packaging and accessories ..................................... 3 Connection ............................................. 4 Installations examples ........................................5 Operating the IPC-S2 .......................................... 6 Preparation for the IPC-S2 web management............................6 Web Management Access ...................................... 7 Troubleshooting ............................................
- Page 3 USER MANUAL KIT IP-W Installation The kit is configured for proper operation from its installation. The two devices are configured to function with IPTV without having to perform any previous configuration. This kit enables having a Wi-Fi network and to manage the network which will be generated by the IPC-S2 slave. By default the IPC-S2 will generate an open Wi-Fi.
- Page 4 USER MANUAL KIT IP-W Connection In order for the Kit to function properly, it must be connected as follows: The IPC BMH master unit must be connected with an Ethernet cable to the main router. The RF output must be connected to the power outlet using the MI RP IEC. The equipment is powered through its power supply.
- Page 5 USER MANUAL KIT IP-W Installations examples Apartment installation Single family home installation ITS Partner O.B.S S.L · Av. Cerdanyola 79-81 Local C 08172 Sant Cugat del Vallés · Barcelona (Spain) Telf: +34935839543 · info@ek.plus · www.ek.plus...
- Page 6 USER MANUAL KIT IP-W Operating the IPC-S2 This chapter explains how to access and configure the IPC-S2 slave after completing the wiring as explained in the previous chapter. This chapter contains the following sections: Preparation for the IPC-S2 web management. Web Management Access.
- Page 7 USER MANUAL KIT IP-W Web Management Access Open an internet browser and enter the following IP address: http://192.168.10.1. Pressing “Enter” will display the login screen for the IPC-S2. The credentials to access as an administrator are: Username: admin Password: admin. Having done so, press Enter to access the device management.
