Home Accents 22SV23277 Assembly And Operation Instructions

EASY ASSEMBLY AND OPERATION INSTRUCTIONS
22SV23277 Towering Phantom
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT TIPS:
• Ensure that the item's adapter is plugged in at the Function Control Box and in
the wall.
• Ensure that the switch on the function control box is on the desired setting.

TROUBLESHOOTING:

• If not functioning properly (ex: eyes & body don't light up), ensure that cables are
• Ensure that the item's adapter is plugged in at the Function Control Box and in the wall.
connected to their corresponding cable as shown in the instruction sheet. • Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: Mouth doesn't move, eyes don't light up, body doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the floor or surface that the item sits on is flat and level.
• Be sure nothing is blocking the sensor.
• Ensure that the volume is not all the way down.
• If the item still does not work, contact SVI customer service from 8:30am to 5:30pm pst at 1-855-428-3921, email customerservice@svius.com, or call HOME DEPOT customer service at 1-877-527-0313.

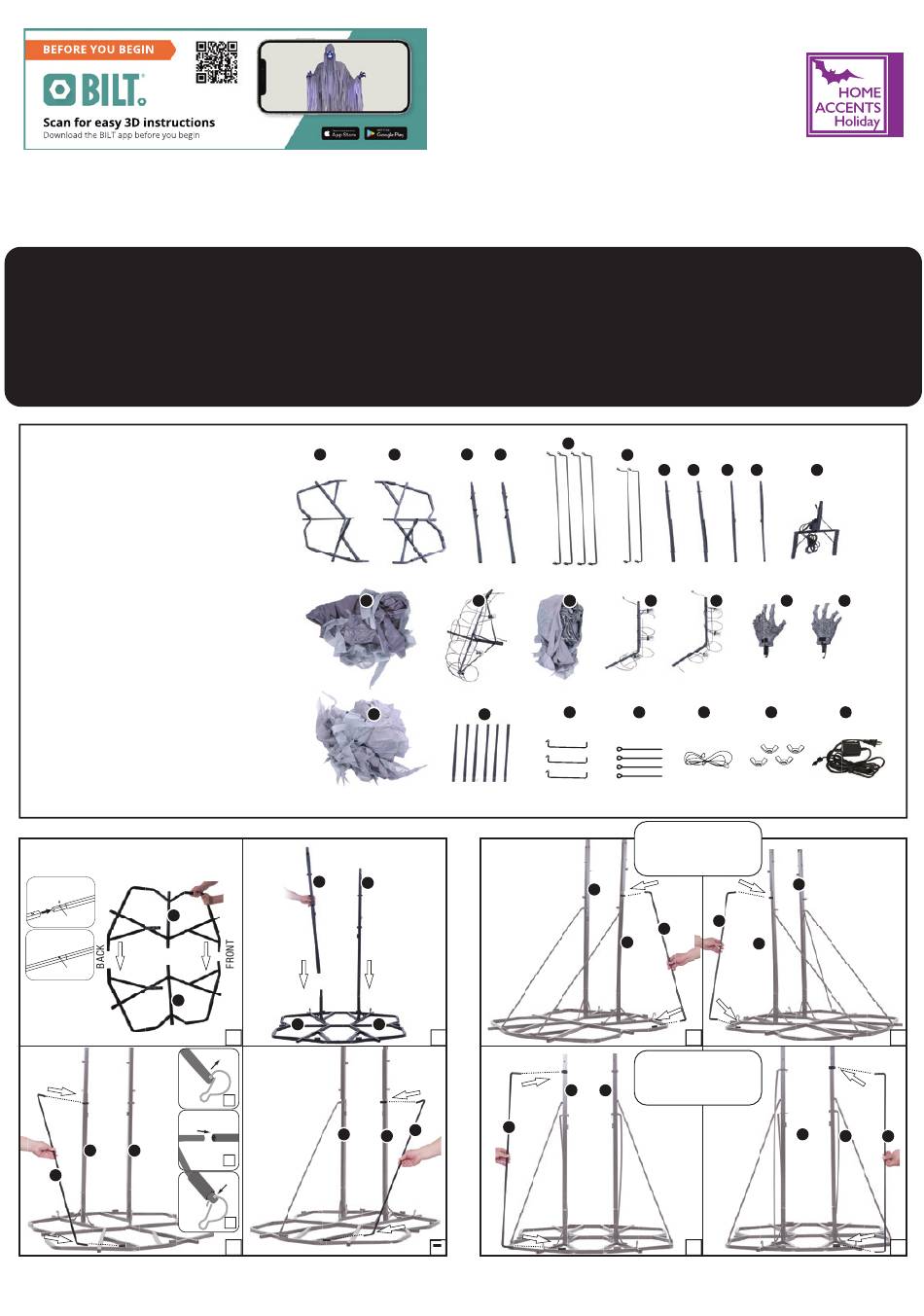

PARTS LIST

A. Left Base Half x 1
B. Right Base Half x 1
C. Lower Right Support Pole x 1
D. Lower Left Support Pole x 1
E. Long Support Struts x 4
F. Support Struts x 2
G. Right Support Pole x 1
H. Left Support Pole x 1
I. Upper Right Support Pole x 1
J. Upper Left Support Pole x 1
K. Lower Torso Frame x 1
L. Costume x 1
M. Upper Torso Frame x 1
N. Head x 1
O. Right Arm x 1
P. Left Arm x 1
Q. Left Hand x 1
R. Right Hand x 1
S. Upper Cloak x 1
T. Base Extensions x 6
U. Short Support Struts x3
V. Stakes x 4
W. Support Cable x 1
X. Wing Nuts x 4
Y. Adapter * x 1
* Power Adapter Spec
Input: 120VAC 50/60Hz
Output: 5.9V 3.0A
NOTE: Throughout the instructions, Right and
Left are from the character's point of view.
LEFT
A
Locking Pin
Click
Means It's
Locked
B
RIGHT
C D
E
A B
L
S
C
D
B A
1.1
NOTE: Please refer
to Step 1.3 for
removing and
1 installing cotter
pins.
C
D
2
3
1.3
ASSEMBLY REQUIRES AT LEAST 2 ADULTS, 3 ADULTS ARE
RECOMMENDED. PLEASE FOLLOW THE STEP BY STEP GUIDE AND
ENJOY YOUR TOWERING PHANTOM!
IF ANY PART IS MISSING OR BROKEN, DO NOT ATTEMPT TO ASSEMBLE THE
PRODUCT AND CONTACT SVI CUSTOMER SERVICE FROM 8:30AM TO 5:30PM PST AT
1-855-428-3921, EMAIL CUSTOMERSERVICE@SVIUS.COM, OR CALL HOME
ACCENTS HOLIDAY CUSTOMER SERVICE FROM MON-FRI 8:00AM TO 7:00PM AND
SAT 9:00 AM TO 6:00 PM EST AT 1-855-HDHOLIDAY (1-855-434-6543).
• Ensure that the volume is not all the way down.
• Be sure nothing is blocking the sensor.
• If the item still does not work, contact SVI Customer Service from 8:30am to
5:30pm PST at 1-855-428-3921, email customerservice@svius.com, or call
Home Accents Holiday Customer Service from Mon-Fri 8:00am to 7:00pm and
Sat 9:00 am To 6:00 pm EST at 1-855-HDHOLIDAY (1-855-434-6543).
E
C D
M N
U
T
1.2
C
E
E
1.4 1.4
