EASY ASSEMBLY AND OPERATION INSTRUCTIONS

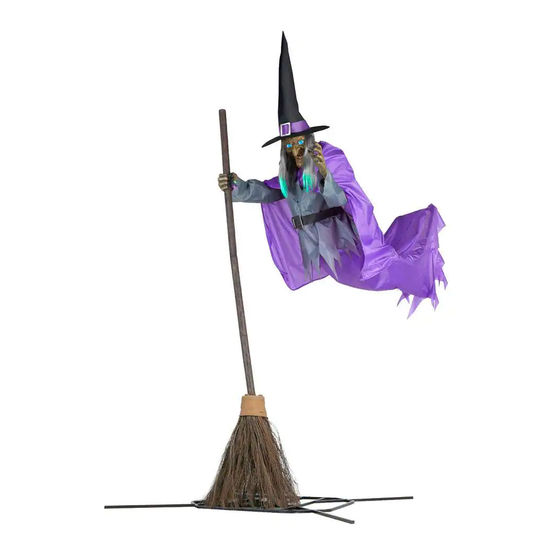

22SV23269 Hovering Witch
READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
IMPORTANT TIPS:
• Ensure that the item's adapter is plugged in at the Function Control Box and in
the wall.
• Ensure that the switch on the function control box is on the desired setting.
TROUBLESHOOTING:
• If not functioning properly (ex: eyes & body don't light up), ensure that cables are
• Ensure that the item's adapter is plugged in at the Function Control Box and in the wall.
connected to their corresponding cable as shown in the instruction sheet. • Ensure that the switch on the function control box is on the desired setting.
• If not functioning properly (ex: Mouth doesn't move, eyes don't light up, body doesn't move), ensure that cables are connected to their corresponding cable as shown in the instruction sheet.
• Be sure nothing is blocking movement or caught in moving parts.
• Be sure nothing is blocking movement or caught in moving parts.
• Ensure that the floor or surface that the item sits on is flat and level.
• Ensure that the floor or surface that the item sits on is flat and level.
• Be sure nothing is blocking the sensor.
• Ensure that the volume is not all the way down.
• If the item still does not work, contact SVI customer service from 8:30am to 5:30pm pst at 1-855-428-3921, email customerservice@svius.com, or call HOME DEPOT customer service at 1-877-527-0313.
PARTS LIST
A. Right Base Half x 1
B. Left Base Half x 1
C. Lower Support Pole x 1
D. Broom Bristles x 1
E. Support Pole x 1
F. Broom Stick 1 x 1
G. Broom Stick 2 x 1
H. Broom Stick 3 x1
I. Upper Support Pole x 1
J. Broom Stick Cap x 1
K. Right Arm x 1
L. Right Hand x 1
M. Costume x 1
N. Upper Torso Frame x 1
O. Lower Torso Frame x 1
P. Head x 1
Q. Hip Hoop x 1
R. Leg Frames x 2
S. Foam Tubes x 2
T. Left Arm x 1
U. Left Hand x 1
V. Cape x 1
W. Hat x 1
X. Broom Stick 4 x 1
Y. Base Extensions x 4
Z. Adapter Reciever x 1
Z1. Elastic Band x 1
Z2. Stakes x 4
Z3. Adapter * x 1
* Power Adapter Spec
Input: 120VAC 50/60Hz
Output: 5.9V 2.0A
NOTE: Throughout the instructions, Right and
Left are from the character's point of view.
LEFT
B
Locking Pin
Click
Means It's
Locked
BACK
A
RIGHT
1
C
2
3
A
I
J
Q
X
NOTE: Remove wing nut from the (A) Right
Base Half before attaching the (C) Lower
Support Pole. Remove clips from the struts
of the (C) Lower Support Pole before
attaching to the (A) Right Base Half.
FRONT C
A
B
1.1
NOTE: Place the
block of the (Z)
Adapter Receiver in
Z
the (D) Broom
Bristles with the
remaining cable
emerging from the
top.
D
1.3
ASSEMBLY REQUIRES AT LEAST 2 ADULTS, 3 ADULTS ARE
RECOMMENDED. PLEASE FOLLOW THE STEP BY STEP GUIDE AND
ENJOY YOUR HOVERING WITCH!
IF ANY PART IS MISSING OR BROKEN, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT
AND CONTACT SVI CUSTOMER SERVICE FROM 8:30AM TO 5:30PM PST AT
1-855-428-3921, EMAIL CUSTOMERSERVICE@SVIUS.COM, OR CALL HOME ACCENTS
HOLIDAY CUSTOMER SERVICE FROM MON-FRI 8:00AM TO 7:00PM AND SAT 9:00 AM TO
6:00 PM EST AT 1-855-HDHOLIDAY (1-855-434-6543).
• Ensure that the volume is not all the way down.
• Be sure nothing is blocking the sensor.
• If the item still does not work, contact SVI Customer Service from 8:30am to
5:30pm PST at 1-855-428-3921, email customerservice@svius.com, or call
Home Accents Holiday Customer Service from Mon-Fri 8:00am to 7:00pm and
Sat 9:00 am To 6:00 pm EST at 1-855-HDHOLIDAY (1-855-434-6543).
B C
K L M
R S
Y Z Z
1
D
1.2
1.4
USA/ États-Unis 1007133202
D E
N O
T U V
Z Z
2 3
D
C
C
2.1
Outer Box
Canada 1001696333
TM
F G H
P
W
E
C
2.2
2.3
1/5
