EASY ASSEMBLY AND OPERATION INSTRUCTIONS

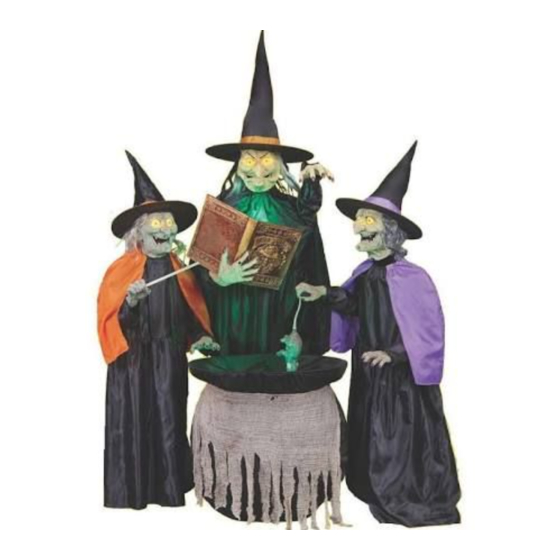

Spellbinding Witch Sisters
This item, when assembled by the following instructions,
should take 15 minutes to assemble. Please follow the step
by step guide and enjoy your Spellbinding Witch Sisters!
CARE AND STORAGE INSTRUCTIONS
For best performance operate your item indoors. When not in use, store this product in it's
original packing. Keep away from heat and moisture.
PARTS LIST
A.
Base
B.
Support Poles x 2
C.
Function control box frame
D.
Center Witch Frame
E.
Right Side Center Witch Frame
F.
Left Side Center Witch Frame
G. Center Witch Head
H. Right Side Witch Head
I.
Left Side Witch Head
J. Cauldron
K. Center Witch Costume
V. Left Side Witch Cape
L. Center Witch Right Arm
W. Center Witch Hat
L-1. Book
X. Right Side Witch Hat
M. Center Witch Left Arm
Y. Left Side Witch Hat
N. Right Side Witch Costume
O. Right Side Witch Right Arm
P. Right Side Witch Left Arm
Q. Left Side Witch Costume
R. Left Side Witch Right Arm Holding Rat
S. Left Side Witch Left Arm
T. Center Witch Cape
U. Right Side Witch Cape
BEFORE ASSEMBLING, REMOVE ALL THE ABOVE PARTS FROM BOX. IF ANY PART IS MISSING, DO NOT ATTEMPT TO ASSEMBLE THE PRODUCT AND CONTACT CUSTOMER
SERVICE FROM 8:30AM TO 5:30PM PST AT 1-855-428-3921.
1
2
B
3
STEP 1
NOTE: The longer end of the (A) Base goes towards the front. First, assemble the (B) Support
Poles to the (A) Base as shown, and secure by aligning the quick-connect push buttons into
the pre-drilled holes.
A
B
O
U
UL Power Adapter
* UL Power Adapter Spec
Input: 100 - 240VAC 50/60Hz
Output: 5.9V 1.5A
B
A
WARNING
This item is not a toy and should be used for decoration only. This item contains small parts that
can be a choking hazard. Keep all plastic and wire parts away from children.
1. Please use the transformer supplied by manufacturer.
2. Please assemble item according to instructions. Connect all wires according to matching
color.
3. Children should be supervised by adults. Item should not be grabbed, as it becomes a tipping
hazard. Keep all away from the transformer, as it heats up during operation.
Please read all instructions carefully before assembling. Save this instruction sheet for future
reference.
D
C
I
J
K
P
Q
V
W
STEP 2
NOTE: The speaker on the Function Control Box located on the (C)
Box
onto the (B) Support Poles as shown, and secure by aligning the quick-connect
push buttons into the pre-drilled holes.
F
E
L
S
R
X
Y
C
B
Frame should be facing front. Assemble the (C)
Model#5124441
H
G
M
N
T
B
Function Control
Frame
Function Control Box
1/5
