Kyocera EcoPro EP C170N Installation Manual

EP C170N/EP C220N/EP C270N

Installation Guide

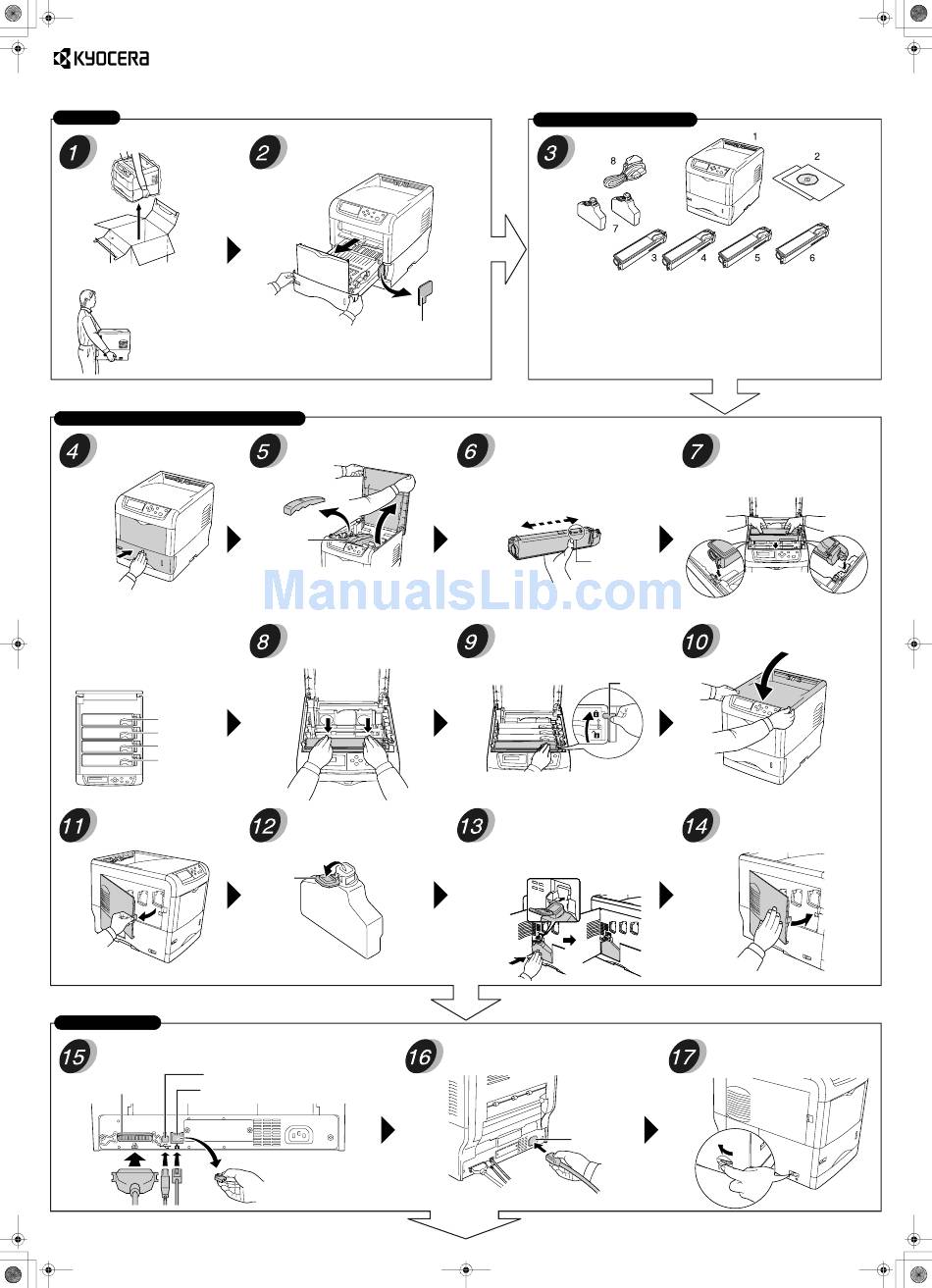

Unpacking
Unpack the printer and components.
When carrying the printer,
always hold the right and
left sides as shown.
Rear
Install the Toner Containers and Waste Toner Box
Close the paper transfer unit tightly.
This example shows installing the black toner
container.
Note
Ensure the toner container is in the correct
location for that color.
Magenta (M)
Cyan (C)
Yellow (Y)
Black (K)
Open the left cover.
Make Connections
Connect the printer to your computer. (The connecting cable is sold
separately.)
Parallel Interface
USB Interface
(EP C270N only)
Network Interface (Ethernet)
Remove the filler.
Filler
Open the top cover and remove the
packing item.
Packing Item
Push down on the container until it
clicks firmly into place.
Open the cap of the waste toner box.
Cap
Remove the cap, when using
the network interface.
Important!
Kyocera Mita assumes no liability for any damage caused by an improper
installation of the printer.
Check Parts and Components
1. Printer
2. Documentation and software
• Installation Guide (this sheet)
• Other Printed Matters
• CD-ROM
3. Magenta Toner Container
4. Cyan Toner Container
5. Yellow Toner Container
6. Black Toner Container
Hold the toner container with the markings
(caution notes, etc.) facing downward and
shake it 5 or 6 times as shown.
Toner Supply
Opening
Do not push the center of the container or touch the toner
supply opening during this procedure.
Apply light pressure to the container and
push the blue lock lever back towards the
locked symbol as far as it will go.
Follow the procedure above to install the other color toner
containers.
Position the bottom of the waste toner box
in the receptacle and push the box down
until it snaps firmly into place.
Connect the provided power cord to the connector.
Power Cord
Connector
Continued on the
Basic installation is now complete. Before using the printer, set the color registration. Refer to
Reverse page
"Setting the Color Registration" procedure on the reverse page.
7. Waste Toner Boxes (one is
spare)
8. Power cord
Place the new toner container in the
printer with the markings facing
upward.
Close the top cover.
Lock Lever
Close the left cover.
Turn on ( | ) the power switch located on
the left side of the printer.
