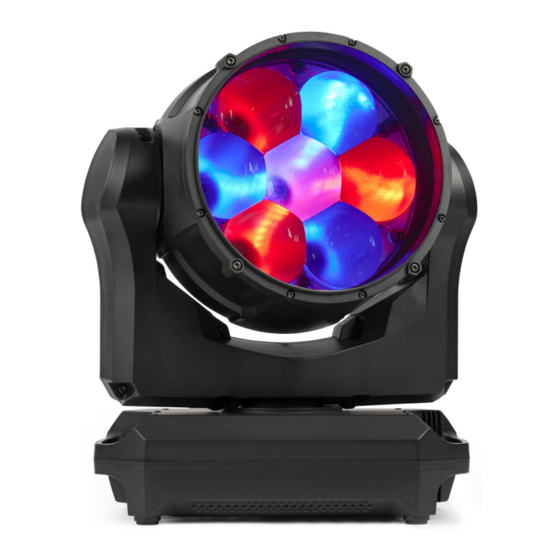

MAC Aura XIP
User Manual
(with Installation and Safety Manual attached)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Martin MAC Aura XIP and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Martin MAC Aura XIP

Summary of Contents for Harman Martin MAC Aura XIP

  • Page 1 MAC Aura XIP User Manual (with Installation and Safety Manual attached)
  • Page 2 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.

  • Page 3: Table Of Contents

    Contents Introduction ................4 Operating the fixture .

  • Page 4: Introduction

    Introduction Warning! Before installing, operating or servicing the MAC Aura XIP lighting fixture, read the latest version of the Safety and Installation Manual that is attached to this User Manual, paying particular attention to the Safety Precautions section. Thank you for selecting a MAC Aura XIP moving head lighting fixture from Martin®. The MAC Aura XIP is a premium moving head wash light with a radical aura filament effect and full pixel control with video mapping capabilities onto the beam, aura, or both.

  • Page 5: Data Links

    Data links Warning! Before installing the MAC Aura XIP, read the latest version of the fixture’s Safety and Installation Manual that is attached to this User Manual, paying particular attention to the Safety Precautions section. The MAC Aura XIP has two pairs of connectors for control data In/Out: •...
  • Page 6 Tips for reliable data transmission via Ethernet cable • Use shielded twisted-pair Ethernet cable of type S/UTP, SF/UTP, S/STP or SF/STP only. The cable must be rated Cat 5e or better. • The cable shield must be electrically connected to connector housings, and the other devices on the data link must also support shielded connections.

  • Page 7: Effects

    Effects This section gives details of the effects available in the MAC Aura XIP. See the DMX protocol table on page 27 for a list of channels and commands used to control the effects via DMX. Where fine control is available, the main control channel sets the first 8 bits (the most significant byte or MSB), and the fine channels set the second 8 bits (the least significant byte or LSB) of the 16-bit control byte.

  • Page 8: Pan And Tilt

    Pan and tilt The MAC Aura XIP offers 540° of pan and 220° of tilt. See the pan/tilt orientation reference drawings at the end of this user manual for a guide to the direction of pan and tilt movement. 16-bit pan and tilt control are available. In each case, the second (LSB) DMX channel adjusts the position set on the first (MSB) channel.

  • Page 9: Pixel Mapping

    Pixel mapping Extended and Ludicrous DMX modes give individual control of the Beam pixels and Aura filaments. These are numbered as shown below. Beam pixels 1 - 7, Aura filaments 1 - 12. Fixture in hanging orientation, pan at 50%, display and connectors at back of fixture Figure 1.

  • Page 10: Control Panel

    Control panel You can configure individual fixture settings (such as the fixture’s DMX address), read out data, execute service operations and view error messages using the fixture’s backlit graphic display and control panel. DMX ADDRESS DMX RANGE 1–48 A - Mains power IN G - LCD Display B - Mains power THRU/OUT H - Status LED...
  • Page 11 • RED: Error detected. - If ERROR MODE is set to NORMAL, the error message will be shown in the display. - If ERROR MODE is set to SILENT, display the error message by entering the menus and going to →...
  • Page 12 Activating service mode Holding the MENU and ENTER buttons I and K both pressed in while powering the fixture on puts the fixture into service mode, in which pan and tilt are disabled and a SERV warning appears in the display. Service mode removes the risk of unexpected head movement during service adjustments.

  • Page 13: Control Options

    Control options You can control the MAC Aura XIP using DMX and/or Martin P3 protocol. The fixture auto-senses the type of data that it is receiving and will respond correctly with no need for manual protocol selection. The following options are available: •...

  • Page 14: P3 Video

    mixing, Aura CTC, Aura Green-Magenta shift, fading between Aura DMX and P3 video control and the Aura virtual color wheel. It also offers 16-bit control of Aura dimming. • Extended mode includes all the functionality of Basic Mode but adds 8-bit RGB color mixing control of each individual Beam pixel.
  • Page 15 Supported RDM PIDs The fixture supports the standard RDM PIDs (Parameter IDs) required by ESTA plus manufacturer-specific PIDs that give a range of configuration options. See the following tables. Standard RDM Parameter IDs allowed allowed RDM parameter IDs Notes Network Management DISC_UNIQUE_BRANCH DISC_MUTE DISC_UN_MUTE...
  • Page 16  IPV4_CURRENT_ADDRESS   IPV4_STATIC_ADDRESS  INTERFACE_APPLY_CONFIGURATION Control   IDENTIFY_DEVICE Highlight device in rig  RESET_DEVICE   PERFORM_SELFTEST  SELF_TEST_DESCRIPTION Manufacturer-specific RDM Parameter IDs allowed allowed RDM parameter IDs (slot 21-22) Notes DMX protocol   DMX_RESET_ENABLE Fixture behavior ...

  • Page 17: Fixture Setup

    Fixture setup The onboard control panel lets you configure the fixture using a range of fixture settings. Note that many of these settings are also available on the Control / settings DMX channel (see “Adjusting settings via DMX” on page 25). DMX address The fixture lets you set its DMX address or DMX start channel from 001 to the highest number available in one 512-channel DMX universe that let you operate the fixture completely.
  • Page 18 - LIMIT PAN/TILT lets you define minimum and maximum limits for pan and tilt angles so that you can install fixtures close to obstacles (such as other fixtures or trusses) with no risk of collision, so that the beam will only hit a certain area of a stage or set, or so that you can avoid the fixture shining into the eyes of the audience.
  • Page 19 differ significantly from the colors obtained in Extended Color Mode. Multiple fixtures in the same installation should normally all be set to either Extended or Calibrated Color Mode in order to ensure the most consistent color behavior • VIDEO TRACKING optimizes performance if the MAC Aura XIP is used with a video source. In normal use, the fixture processes the signal it receives, tracking (or smoothing out) changes in values in order to ensure smooth fading between colors and/or intensities.

  • Page 20: Managing Fixture Settings

    - DISPLAY CONTRAST lets you adjust the contrast of the LCD display on the fixture’s integrated control panel. • ERROR MODE enables or disables error warnings. - If set to NORMAL, the display is activated and lights up if the fixture needs to report an error. - If set to SILENT, the fixture does not light the display with error warnings but error messages can still be read when the display is activated manually.

  • Page 21: Temperatures

    • RDM UID displays the fixture’s factory-set unique ID for identification in RDM systems. • FAN SPEEDS provides separate status readouts from the fixture’s cooling fans. Temperatures The TEMPERATURES menu provides separate temperature readouts for each of the fixture’s PCBs. You can choose to see the current readout or the minimum and maximum temperature levels since the fixture was last powered on.

  • Page 22: Manual Control

    • In the TEST PAN/TILT menu, choose PAN or TILT, make sure that the fixture base is held securely and that there is no danger of the fixture falling over or head colliding, then press ENTER to start the test sequence.

  • Page 23: Calibration

    Calibration Martin fixtures are adjusted and calibrated at the factory, and further calibration should only be necessary if fixtures have been subjected to abnormal shocks during transport or if normal wear and tear has affected alignment after an extended period of use. You can also use calibration to fine-tune fixtures for a particular location or application.
  • Page 24 2. Read the firmware release notes carefully to check for any instructions or warnings, and copy the firmware file to the root directory of a USB stick. 3. Disconnect the data link from the MAC Aura XIP. 4. Insert the USB stick into the MAC Aura XIP’s USB host socket. The fixture should recognize the USB →...

  • Page 25: Adjusting Settings Via Dmx

    Adjusting settings via DMX Certain fixture settings and parameters can be adjusted from the DMX controller on Channel 19, the Fixture Control/Settings channel. Commands sent on this channel override any settings entered in the fixture’s onboard control menus. To help you avoid accidentally applying a setting that may disrupt a light show, for example, the commands must be held for a certain time before they are applied.
  • Page 26 1. Set the effect to a specific value via DMX (for example, set all the fixtures in a group to DMX value 200 on the zoom channel). 2. Select ‘Enable calibration adjustment’ on the Control/Settings channel and hold for 5 seconds to activate.

  • Page 27: Dmx Protocol

    DMX protocol Compact Mode MAC Aura XIP firmware version 1.0.0 Fade Default Channel DMX Value Function type value Strobe / Intensity Strobe/shutter effect 0 - 19 Shutter closed 20 - 49 Shutter open Snap Strobe, slow → fast 50 - 200 201 - 210 Shutter open Random strobe, slow →...
  • Page 28 Fade Default Channel DMX Value Function type value Light blue (Lee 118) Medium blue green (Lee 116) Dark green (Lee 124) Primary green (Lee 139) Moss green (Lee 089) Fern green (Lee 122) Jas green (Lee 738) Lime green (Lee 088) Spring yellow (Lee 100) Deep amber (Lee 104) Chrome orange (Lee 179)
  • Page 29 Fade Default Channel DMX Value Function type value No function Fast pan and tilt speed (default setting) – 1 sec. (menu override - setting returns to Fast pan and tilt speed after power on/off) Smooth pan and tilt speed – 1 sec. (menu override - setting returns to Fast pan and tilt speed after power on/off) No function...

  • Page 30: Basic Mode

    Basic Mode MAC Aura XIP firmware version 1.0.0 Channels 1 - 20: as in Compact Mode Beam P3 Mix P3 Mix DMX Mode 0 - 26 Intensity and colors fully controlled by DMX, P3 pixel data ignored Mixed Mode 27 - 228 Cross-fade from DMX control of intensity and colors to P3 control of intensity and colors: Snap...
  • Page 31 Offset shift 290° Offset shift 300° Offset shift 310° Offset shift 320° Offset shift 330° Offset shift 340° Snap cont. Offset shift 350° Synchronized: all fixtures start FX cycles at same time No function 37 - 100 101 - 120 Random start (Channel 23 controls overall speed) 121 - 140 Random duration...
  • Page 32 Half CT blue (Lee 202) Steel blue (Lee 117) Lighter blue (Lee 353) Light blue (Lee 118) Medium blue green (Lee 116) Dark green (Lee 124) Primary green (Lee 139) Moss green (Lee 089) Fern green (Lee 122) Jas green (Lee 738) Lime green (Lee 088) Spring yellow (Lee 100) Deep amber (Lee 104)

  • Page 33: Extended Mode

    Extended Mode MAC Aura XIP firmware version 1.0.0. See “Pixel mapping” on page 9 for details of Beam pixel numbering. Channels 1 - 36: as in Basic Mode Beam Pixel color (Pixel Color Control of 7 x Beam LEDs, Global Beam RGB channels are added to this using HTP) Pixel 1 Red Fade...

  • Page 34: Ludicrous Mode

    Ludicrous Mode MAC Aura XIP firmware version 1.0.0. See “Pixel mapping” on page 9 for details of Aura filament numbering. Channels 1 - 57: as in Extended Mode Aura Filament color (Filament Color Control of 12 x Aura LEDs, Global Aura RGB channels are added to this using HTP) Filament 1 Red Fade...
  • Page 35 Filament 10 Green Fade 0 - 255 0 - 100% Filament 10 Blue Fade 0 - 255 0 - 100% Filament 11 Red Fade 0 - 255 0 - 100% Filament 11 Green Fade 0 - 255 0 - 100% Filament 11 Blue Fade 0 - 255...

  • Page 36: Fx: Pre-Programmed Effects

    FX: pre-programmed effects The table on the following pages lists the pre-programmed dynamic FX (effect macros) available in the MAC Aura XIP. To control the FX you can: • Select an effect (or two effects that can run simultaneously) by sending the values listed in the table. •...
  • Page 37 Aura color modifier FX (226-236) These FX shift the color(s) set by the RGB channels, RGB pixel channels, virtual color wheel and P3 pixels. Aura Time FX (240) The Aura Video Slo-Mo FX sets the output of Aura filaments to the average of the last xxx video frames (DMX or P3), to create a slow-motion effect.
  • Page 38 Effects details Available in MAC Aura XIP firmware version 1.0.0. Effect value No FX Beam Intensity All Modifies pulse width of strobe patterns selected via the Beam Beam Strobe Pulse Width strobe/shutter channel Beam blackout Strobe Flashes of Beam going dark Beam 2 x Strobe Bursts of two strobe flashes Beam 3 x Strobe...
  • Page 39 Beam Line Spin Fade Diagonal line spinning with crossfade Beam Cross (Y) Spin Step Cross pattern spinning without crossfade Beam Cross (Y) Spin Fade Cross pattern spinning with crossfade Chase between cross pattern and circle pattern without Beam Cross (Y) Circle (O) Step crossfade Beam Cross (Y) Circle (O) Fade Chase between cross pattern and circle pattern with crossfade...
  • Page 40 Beam Electric Arc Mimic electric arc Beam Plasma Mimic plasma No function 99-101 Beam Spectrum Shifter FX Shift color spectrum with FX speed channel controlling the Beam Spectrum Shifter Static offset versus the starting color Step through offset colors with FX speed channel controlling Beam Spectrum Shifter Step the maximum offset versus the starting color Fade through offset colors with FX speed channel controlling...
  • Page 41 Aura Build Up / Step Down Filaments turning on/off in order without crossfade Aura Build Up / Fade Down Filaments turning on/off in order with crossfade Aura Build Up / Random Step Down Filaments turning on/off in random order without crossfade Aura Build Up / Random Fade Down Filaments turning on/off in random order with crossfade Aura Random 1 Filament Step...
  • Page 42 Aura Rainbow Filaments Step Rainbow pattern without crossfade Aura Rainbow Filaments Fade Rainbow pattern with crossfade Aura Red-Yellow Filaments Step Variations in red-yellow tint without crossfade Aura Red-Yellow Filaments Fade Variations in red-yellow tint with crossfade Aura Yellow-Green Filaments Step Variations in yellow-green tint without crossfade Aura Yellow-Green Filaments Fade Variations in yellow-green tint with crossfade...
  • Page 43 Beam-Aura Step Beam-Aura chase without crossfade Beam-Aura Fade Beam-Aura chase with crossfade Aura Ramp Beam Flash Aura fade plus Beam flash Beam Ramp Aura Flash Beam fade plus Aura flash Full Thunderstorm Mimic thunderstorm Full Welding Mimic welding Full 3-Step Strobe Chase Beam, Aura, both No function 252-255...

  • Page 44: Control Panel Menus

    Control panel menus MAC Aura XIP firmware version 1.0.0. Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) DMX address (default address = 1). The DMX address range is limited so that the DMX ADDRESS 1 –...
  • Page 45 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) LINEAR Optically linear dimming curve SQUARE LAW Square law dimming curve DIMMER CURVE INV SQ LAW Inverse square law dimming curve S-curve (fixture emulates incandescent S-CURVE lamp voltage linear RMS dimming curve) Color temperature and dimming...
  • Page 46 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Enable error messages and warnings in NORMAL display Disable error messages and warnings in ERROR MODE display (the status LED will still light to SILENT indicate fixture status if an error has been detected or the fixture has a warning)
  • Page 47 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Longest period fixture has been wet LONGEST 0 ... XXX HR without a dry break since last powered on If fixture is wet, how long since it was last CURRENT 0 ...
  • Page 48 Menu level 1 Menu level 2 Menu level 3 Menu level 4 Notes (Default settings in bold print) Show all error and warning messages ERROR LIST Empty or up to 20 errors stored in memory. Run cooling fans at high speed to dislodge FAN CLEAN ON/OFF dust and debris.

  • Page 49: Service And Display Messages

    Service and display messages The MAC Aura XIP gives service and maintenance information by displaying a large 3- or 4-character short code and a smaller full-text message in the fixture’s display. The short code is visible at a distance, allowing easier reading with the fixture still in the rig, for example, while the full-text message gives more detailed information.

  • Page 50: Error Messages

    Short code Long message Explanation User interface (LCD display and control panel) PCB sensor detects UITW* UI TEMP HIGH abnormally high operating temperature.* Fixture has been wet for an extended period. To remove the warning, a complete dry-off procedure is required, especially before storing/transporting the fixture or re-using it in wet conditions.
  • Page 51 Short code Long message Explanation SEER SACN SOURCES EXCEEDED Number of sACN control sources exceeded. Safety loop circuit activated. A temperature circuit breaker has shut SLER SAFETY LOOP down LEDs. Circuit breaker resets automatically after temperature has returned to normal operating range. TSER TILT SENSOR ERROR Fixture unable to retrieve data from Tilt position sensor.

  • Page 52: Control Orientation Reference

    Control orientation reference Pan and tilt control Home position / Front of fixture Display Power Input DMX disconnected Tilt range = 22 ° Tilt = DMX 0 Tilt = DMX 32768 Tilt = DMX 65535 DMX 0 DMX 65535 Pan = DMX 32768 Pan = DMX 32768 Pan = DMX 32768 Pan range = 540°...

  • Page 53: Zoom Control

    Zoom control Zoom Wide = DMX 65535 Zoom Narrow = DMX 0 Control orientation reference...
  • Page 54 www.martin.com...
  • Page 55 MAC Aura XIP Safety and Installation Manual avec consignes de sécurité en français mit Sicherheitshinweise auf Deutsch...
  • Page 56 Martin is a registered trademark of HARMAN PROFESSIONAL DENMARK ApS registered in the United States and/or other countries.
  • Page 57 Contents Safety Information ..............4 Précautions d’emploi .

  • Page 58: Safety Information

    The latest software, manuals and other documentation for all Martin products are available for download at www.martin.com Technical Support If you have questions about how to install or operate the fixture safely, please contact Harman Professional Technical support: • For technical support in North America, please contact: HProTechSupportUSA@harman.com Phone: (844) 776-4899 •...
  • Page 59 P R O T E C T I O N F R O M E L E C T R I C S H O C K • Before connecting any devices to the fixture’s power throughput socket, check the maximum current draw of all the devices that you will connect to power in a chain.
  • Page 60 • Refer any service operation not described in this manual or in the MAC Aura XIP User Guide to Martin Service or an authorized Martin Service partner. • The light source contained in this fixture shall be replaced by Martin Service or an authorized Martin Service partner only.
  • Page 61 • If the fixture is installed in a location where it may cause injury or damage if it falls, install as described in this manual a secondary attachment such as a safety cable that is approved by an official body such as TÜV as a safety attachment for the weight that it secures.

  • Page 62: Précautions D'emploi

    Les derniers logiciels, manuels et autres documents de tous les produits Martin sont disponibles au téléchargement à l’adresse www.martin.com. Assistance technique Si vous avez des questions sur la façon d’installer ou d’utiliser l’appareil en toute sécurité, veuillez contacter l’Assistance technique de Harman Professional : MAC Aura XIP Safety and Installation Manual...
  • Page 63 • pour contacter l’Assistance technique en Amérique du Nord, veuillez écrire à l’adresse suivante : HProTechSupportUSA@harman.com Téléphone : (844) 776-4899 • pour contacter l’Assistance technique à l’extérieur de l’Amérique du Nord, veuillez contacter votre distributeur national. P R O T E C T I O N C O N T R E L E S E L E C T R I S A T I O N S •...
  • Page 64 • N’utilisez pas l’appareil sous des températures ambiantes inférieures à -20° C (-4° F). Séchez l’appareil soigneusement comme décrit dans ce manuel avant de le stocker ou de le transporter dans un flight case ou tout autre conditionnement si la température ambiante doit descendre sous 5° C (41° F) : la chute de température sous les limites du gel associée à...
  • Page 65 • Lorsque vous suspendez l’appareil avec une vis M12 et un collier, assurez-vous que la vis pénètre d’un minimum de 20 et d’un maximum de 25 mm (min 0.8 / max 1 inch) dans la base de l’appareil une fois convenablement serrée.

  • Page 66: Sicherheitshinweise

    Sicherheitshinweise GERMAN / DEUTSCH WARNUNG! Lesen Sie die Sicherheitshinweise, bevor Sie das Produkt installieren, in Betrieb nehmen, verwenden oder reparieren. Die folgenden Warnhinweise werden in dieser Anleitung und auf dem Produkt verwendet: GEFAHR! GEFAHR! WARNUNG! WARNUNG! WARNUNG! WARNING! Bedienungs- Sicherheitsrisiko. Hochspannung.
  • Page 67 Technische Unterstützung Wenn Sie Fragen zur sicheren Installation und zum sicheren Betrieb dieses Produkts haben, wenden Sie sich bitte an den technischen Support von Harman Professional: • Nordamerika: HProTechSupportUSA@harman.com, Telefon: (844) 776-4899 • Rest der Welt: Bitte wenden Sie sich an Ihren nationalen Vertrieb.
  • Page 68 Wassereintritt oder Überhitzung aufweisen. Verwenden Sie das Gerät erst nach Beendigung der Reparatur. • Verwenden Sie das Gerät nicht bei einer Umgebungstemperatur unter -20° C. Trocknen Sie das Gerät sorgfältig, wie in dieser Anleitung beschrieben, bevor Sie es lagern oder zum Transport in ein Flightcase verpacken, wenn die Temperatur unter den Gefrierpunkt fallen könnte.
  • Page 69 • Verwenden Sie keinen einzelnen Omega-Adapter mit Befestigungsklemme zur Montage des Gerätes. • Wenn Sie das Gerät mit einer klemme und einer M12-Schraube montieren, muss die Schraube nach Anzug mindestens 20 mm und darf höchstens 25 mm in das Gehäuse eindringen. •...

  • Page 70: Introduction

    Introduction Thank you for selecting the MAC Aura XIP lighting fixture from Martin®. This Safety and Installation Manual is supplied with the fixture. It gives details of installing and servicing the fixture. The MAC Aura XIP User Guide, containing full instructions to help you set up, control and monitor the fixture, is available in multiple languages for download from the MAC Aura XIP area of the Martin website at www.martin.com.

  • Page 71: Physical Installation

    Physical installation Installation safety Warning! Read the Safety Information section at the beginning of this manual before connecting the fixture to AC mains power. Powerful light can damage the control panel display. Do not point the output from other lighting fixtures at the MAC Aura XIP.

  • Page 72: Installation Orientation

    Installation orientation See Figure 3. An arrow marked FRONT is provided on the base of the fixture to show the direction of the front of the fixture. You should normally install the fixture with the arrow pointing towards the target to be illuminated.
  • Page 73 Mounting on a truss with a single rigging clamp The MAC Aura XIP can be clamped to a truss or similar rigging structure in any orientation using a rigging clamp and M12 bolt. The bolt must be high-strength steel (grade 8.8 minimum) and the rigging clamp must be approved for the weight that it supports.

  • Page 74: Ac Power

    AC power Warning! Read the Safety Information section at the beginning of this manual before connecting the fixture to AC mains power. For protection from electric shock, the fixture must be electrically connected to ground (earth). The AC mains power distribution circuit must be equipped with a fuse or circuit breaker and ground-fault (earth-fault) protection.
  • Page 75 Warning! The MAC Aura XIP does not have a power On/Off switch. As soon as you connect an energized power input cable to the fixture or apply power to a power input cable that has already been connected, the fixture will power up: check that there is no safety risk from head movement or intense light output.

  • Page 76: Installation Physique

    Installation physique FRENCH / FRANCAIS Instructions de sécurité Attention ! Lisez les Informations de Sécurité en début de manuel avant de connecter l’appareil au secteur. Un éclairement puissant peut endommager l’afficheur du panneau de contrôle. Ne braquez aucun autre projecteur directement sur le MAC Aura XIP. Pour éviter la collision des têtes lorsque des MAC Aura XIP sont placés côte à...

  • Page 77: Orientation

    Orientation Voir Figure 11. Une flèche repérée FRONT sous l’appareil indique l’avant de l’appareil. Cette flèche devrait pointer normalement vers la zone à éclairer. N’installez pas l ’appareil avec son panneau de connectique vers le haut dans des endroits humides. Assurez-vous que les câbles arrivent par le bas de l’appareil.
  • Page 78 2. Alignez le premier collier et son embase avec 2 points de montage de la base, puis engagez les deux inserts à quart de tour dans les emplacements correspondants de la base. 3. Voir Figure 13. Tournez les leviers des inserts à quart de tour de 90º dans le sens horaire pour verrouiller.
  • Page 79 N’utilisez pas les poignées pour fixer l’élingue de sécurité à l’appareil - utilisez uniquement les points dédiés. Figure 15: Points de fixation de l’élingue de sécurité 2. Vérifiez qu’il n’y a pas de matière combustible à moins de 0.2 m (8 in.) ou de surfaces à éclairer à moins de 1.0 m (3.3 ft.) de l’appareil, et qu’il n’y a pas de matériaux inflammables à...

  • Page 80: Alimentation

    Alimentation FRENCH / FRANCAIS Attention ! Lisez les Informations de Sécurité en début de manuel avant de connecter l’appareil au secteur. Pour une protection adaptée contre les électrisations, l’appareil doit être mis à la terre (masse). Le circuit électrique d’alimentation doit être équipé d’un fusible ou d’un disjoncteur, et d’un dispositif de protection différentiel.
  • Page 81 Si vous devez installer un connecteur Neutrik powerCON TRUE1 sur un câble d’alimentation, suivez les consignes figurant sur le site Web Neutrik, à l’adresse www.neutrik.com. Attention ! Le MAC Aura XIP n’est pas équipé d’interrupteur ON/OFF. Dès le branchement d’un câble d’alimentation sous tension à...

  • Page 82: Montage

    Montage GERMAN / DEUTSCH Sichere Montage Warnung! Lesen Sie die Sicherheitshinweise am Anfang dieser Anleitung, bevor Sie das Gerät mit der Stromquelle verbinden. Andere Scheinwerfer dürfen das Display des MAC Aura XIP nicht anleuchten. Intensiver Lichteinfall kann das Display beschädigen. Der Mittenabstand zweier MAC Aura XIP muss mindestens 350 mm (13.8 in.) betragen, um die Kollision der Köpfe auszuschließen.

  • Page 83: Orientierung

    Orientierung Siehe Bild 19. An der Basis des Gerätes markiert ein FRONT Pfeil die Vorderseite des Gerätes. Das Gerät sollte immer so installiert werden, dass der FRONT Pfeil zur beleuchteten Fläche zeigt. In einer feuchten Umgebung darf das Gerät nicht mit dem Anschlussfeld nach oben weisend montiert werden.
  • Page 84 Montage an einer Truss mit einer Befestigungsklemme Der MAC Aura XIP kann mit einer Klemme und einer M12-Schraube (Güte 8.8 oder besser) in beliebiger Orientierung an einer Truss oder ähnlichen tragenden Struktur befestigt werden. Die Klemme muss für das Gewicht des Gerätes zugelassen sein. Beide Anschlagmittel müssen in einwandfreiem Zustand sein. Warnung! Prüfen Sie sorgfältig die Eindringtiefe der Schraube in die Basis des Gerätes nach Anzug der Schraube.

  • Page 85: Stromquelle

    Stromquelle GERMAN / DEUTSCH Warnung! Lesen Sie die Sicherheitshinweise am Anfang dieser Anleitung, bevor Sie das Gerät mit der Stromquelle verbinden. Zum Schutz vor elektrischem Schlag muss das Gerät elektrisch geerdet werden. Die Stromquelle muss mit einer Sicherung und einem Fehlerstrom-Schutzschalter (RCD) vor Überlast geschützt sein.
  • Page 86 Warnung! Der MAC Aura XIP hat keinen Netzschalter. Das Gerät ist eingeschaltet, sobald es mit einer aktiven Stromquelle verbunden wird. Stellen Sie sicher, das kein Sicherheitsrisiko durch die Bewegung des Kopfes oder den Austritt intensiven Lichts besteht. Verbinden des Gerätes mit der Stromquelle: 1.

  • Page 87: Service And Maintenance

    Service and maintenance Warning! Read the Safety Information chapter at the beginning of this manual before servicing the MAC Aura XIP. Important! Excessive dust, smoke fluid, and particle buildup degrades performance, causes overheating and will damage the fixture. Damage caused by inadequate cleaning or maintenance is not covered by the product warranty.

  • Page 88: Servicing The Air Filter

    • Use a vacuum cleaner to remove dust and dirt – do not use a pressurized air jet. A vacuum cleaner will remove dirt from the fixture and from the area where you are working. An air jet may blow dirt into cooling areas and components, causing blockages and affecting cooling.
  • Page 89 4. See Figure 26. Lift the base cover off the base. Figure 26: Removing the base cover 5. See Figure 27. A blower is located close to the control panel The blower is a push fit. You can lift it out of its recess in the base to give better access to the metal gauze filter.

  • Page 90: Using The Fixture

    Using the fixture Before using the fixture, download and read the latest version of the MAC Aura XIP User Guide from the MAC Aura XIP area of the Martin website at www.martin.com. The User Guide contains details of: • The effects available in the fixture. •...

  • Page 91: Troubleshooting

    Troubleshooting Problem Probable cause(s) Remedy Check that power is switched on and cables are No power to fixture. plugged in. Contact Martin Service or authorized service partner. Do not remove base or yoke covers, One or more of the fixtures is attempt to replace a fuse or carry out any repairs or completely dead.

  • Page 92: Compliance And Legal

    Supplier’s Declaration of Conformity Harman Professional, Inc. have issued an FCC Supplier’s Declaration of Conformity for this product. The Declaration of Conformity is available for download from the MAC Aura XIP area of the Martin website at www.martin.com Canadian Interference-Causing Equipment Regulations - Règlement sur le Matériel Brouilleur du Canada...
  • Page 93 Disposing of this product Martin products are supplied in compliance with Directive 2012/19/EC of the European Parliament and of the Council of the European Union on WEEE (Waste Electrical and Electronic Equipment), where applicable. Help preserve the environment! Ensure that this product is recycled at the end of its life. Your supplier can give details of local arrangements for the disposal of Martin products.
  • Page 94 www.martin.com...
