Ambic EasiFoamer™ - Quick Start Guide
It is important that you follow these simple steps to ensure trouble free operation of the
EasiFoamer™ system, and to avoid problems arising from common installation errors.
Black Tubing = Air
Blue Tubing = Chemical
7
1
4

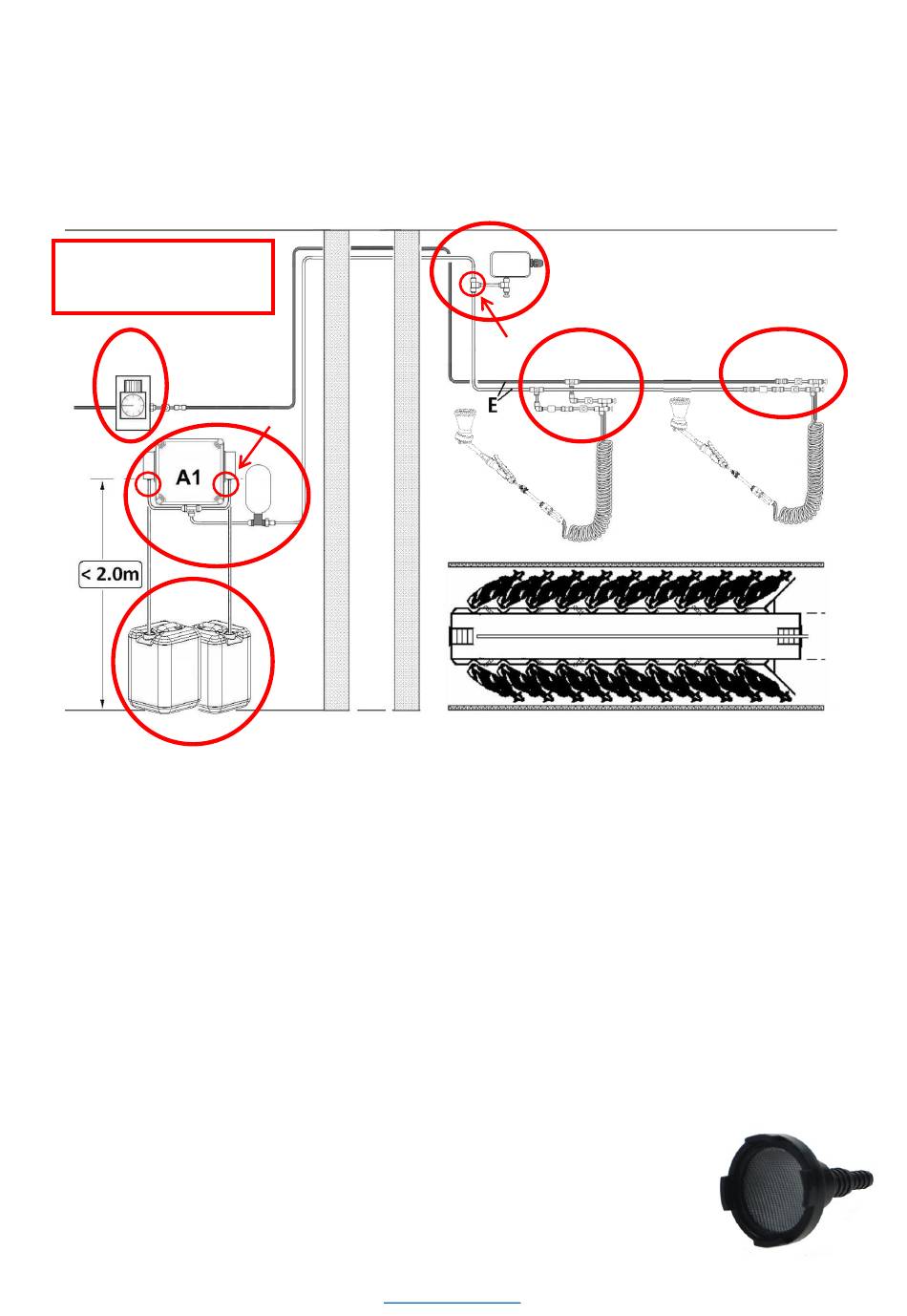

1. Correct position for the EasiFoamer™ control unit
The EasiFoamer™ control unit should be positioned at eye level for ease of access to the keypad
(maximum height 2 metres) and no more than 3 metres distant from the chemical container(s). Do
not install in a wash down area.

2. Correct position for the pressure switch unit

The pressure switch unit should be mounted ABOVE the level of the POWER UNIT (A1), and above
the level of the DISTRIBUTION LINE (E), as shown in the diagrammatic illustration above. This will
ensure that the pump cuts in and out correctly to ensure a steady supply of foam to the
EasiFoamer™ applicators.

3. Connecting the pressure switch to the distribution line

A 'Tee' fitting is used to connect the pressure switch to the distribution line. Ideally this should be
positioned on a vertical section of the distribution line, after the highest point.

4. Make sure the intake filter is fitted to the chemical intake line

Fitting an intake filter (with integral non-return valve) will ensure that the
chemical line is not contaminated with foreign matter that may block the
non-return valves and harm the performance of the system.
Important Installation Information
5
Please note you may have a single or dual pump unit (dual pictured above)
