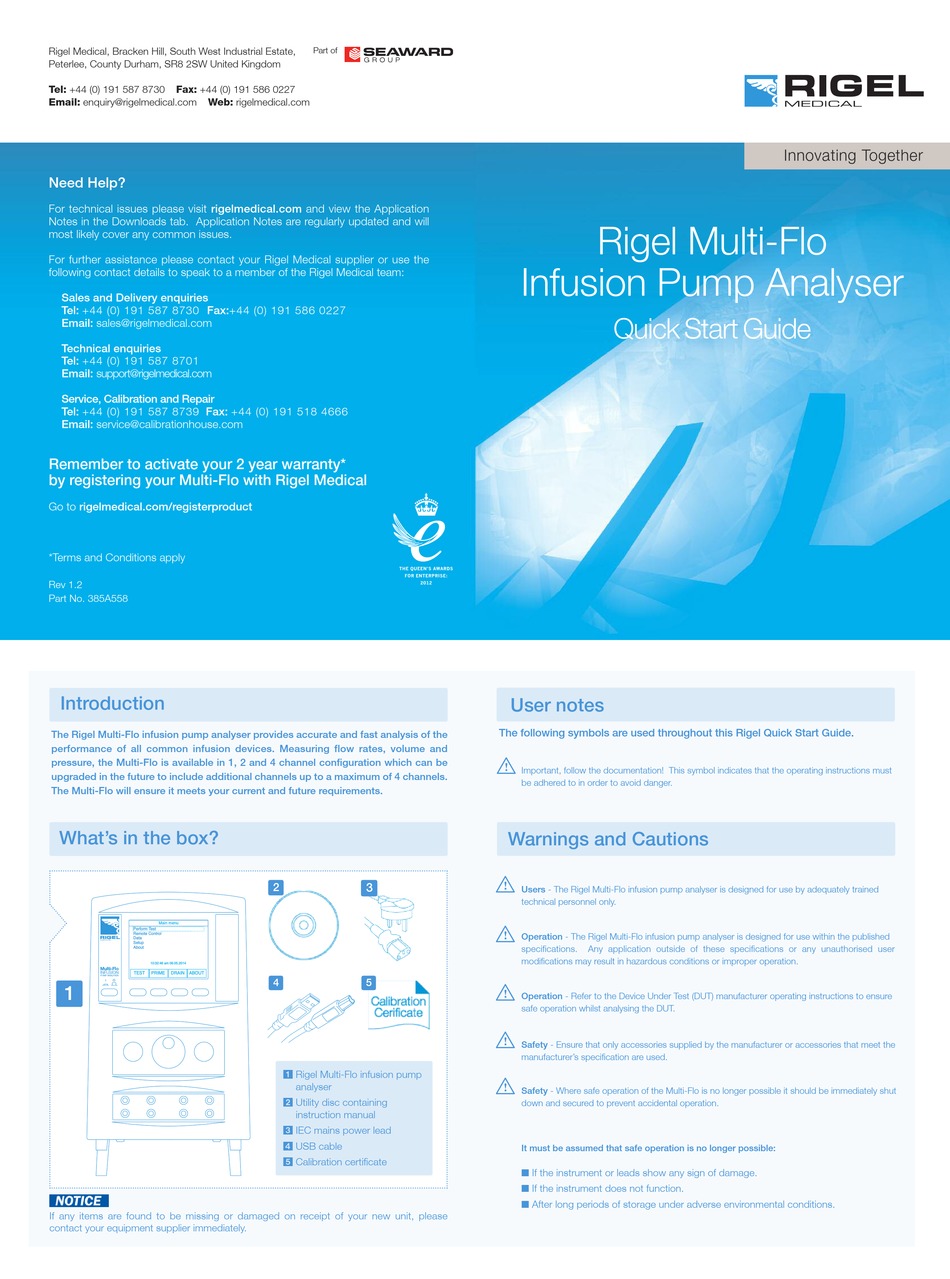

Rigel Medical Multi-Flo Quick Start Manual

Rigel Medical Multi-Flo Quick Start Manual

Infusion pump analyser

Advertisement

Quick Links

Rigel Medical, Bracken Hill, South West Industrial Estate,
Peterlee, County Durham, SR8 2SW United Kingdom
Tel: +44 (0) 191 587 8730
Fax: +44 (0) 191 586 0227
mail: enquiry@rigelmedical.com
Web: rigelmedical.com
Need Help?
For technical issues please visit rigelmedical.com and view the Application
Notes in the Downloads tab. Application Notes are regularly updated and will
most likely cover any common issues.
For further assistance please contact your Rigel Medical supplier or use the
following contact details to speak to a member of the Rigel Medical team:
Sales and Delivery enquiries
Tel: +44 (0) 191 587 8730 Fax:+44 (0) 191 586 0227
Email: sales@rigelmedical.com
Technical enquiries
Tel: +44 (0) 191 587 8701
Email: support@rigelmedical.com
Service, Calibration and Repair
Tel: +44 (0) 191 587 8739 Fax: +44 (0) 191 518 4666
Email: service@calibrationhouse.com
Remember to activate your 2 year warranty*
by registering your Multi-Flo with Rigel Medical
Go to rigelmedical.com/registerproduct
*Terms and Conditions apply
Rev 1.2
Part No. 385A558
Introduction

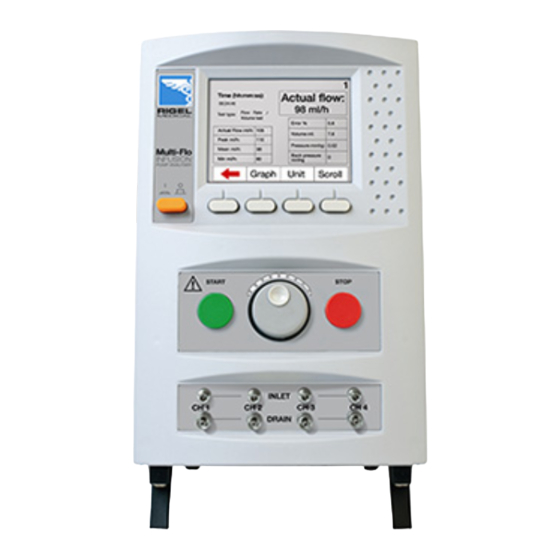

The Rigel Multi-Flo infusion pump analyser provides accurate and fast analysis of the
performance of all common infusion devices. Measuring flow rates, volume and
pressure, the Multi-Flo is available in 1, 2 and 4 channel configuration which can be
upgraded in the future to include additional channels up to a maximum of 4 channels.
The Multi-Flo will ensure it meets your current and future requirements.
What's in the box?
Perform Test
Remote Control
Data
Setup
About
10:32:46 am 06.05.2014
TEST
PRIME
DRAIN ABOUT
1
If any items are found to be missing or damaged on receipt of your new unit, please
contact your equipment supplier immediately.
Part of
2
3
4
5
Rigel Multi-Flo infusion pump
analyser
Utility disc containing
instruction manual
IEC mains power lead
USB cable
Calibration certificate
Rigel Multi-Flo
Infusion Pump Analyser
Quick Start Guide
User notes
The following symbols are used throughout this Rigel Quick Start Guide.
i
Important, follow the documentation! This symbol indicates that the operating instructions must
be adhered to in order to avoid danger.
Warnings and Cautions
i
Users - The Rigel Multi-Flo infusion pump analyser is designed for use by adequately trained
technical personnel only.
i
Operation - The Rigel Multi-Flo infusion pump analyser is designed for use within the published
specifications.
Any application outside of these specifications or any unauthorised user
modifications may result in hazardous conditions or improper operation.
i
Operation - Refer to the Device Under Test (DUT) manufacturer operating instructions to ensure
safe operation whilst analysing the DUT.
i
Safety - Ensure that only accessories supplied by the manufacturer or accessories that meet the
manufacturer's specification are used.
i
Safety - Where safe operation of the Multi-Flo is no longer possible it should be immediately shut
down and secured to prevent accidental operation.
It must be assumed that safe operation is no longer possible:
I If the instrument or leads show any sign of damage.
I If the instrument does not function.
I After long periods of storage under adverse environmental conditions.
Innovating Together
