  • Page 2 Calibration Statement The PatSim 200 Patient Simulator is fully calibrated and found to be within the specified performance and accuracy at the time of production. The Seaward Group provides its products through a variety of channels; therefore, it may be possible that the calibration date on the provided certificate may not represent the actual date of first use.
  • Page 3 Important, follow the documentation! This symbol indicates that the operating instructions must be adhered to in order to avoid danger. If the PatSim 200 is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.

  • Page 4: Table Of Contents

    RIGEL MEDICAL PatSim 200 USER MANUAL 1. Introduction 1.1. Getting to know your PatSim 200 1.2. In the Box 1.3. Additional & Optional Accessories 1.4. Charging 1.5. Battery Status 1.6. Powering On/Off 2. Getting Started 2.1. Setup 2.2. About 2.3. Screen Brightness 2.4.
  • Page 5 RIGEL MEDICAL PatSim 200 USER MANUAL 7. Support 7.1. Contact Us...

  • Page 6: Introduction

    The PatSim 200 from Rigel was designed to make patient simulation quicker. Unlike other Patient Simulators, the PatSim 200 uses a home and recall function to easily move between tests and store your most used sequences, no more clicking and scrolling through 'tree style' hierarchy to perform each test.

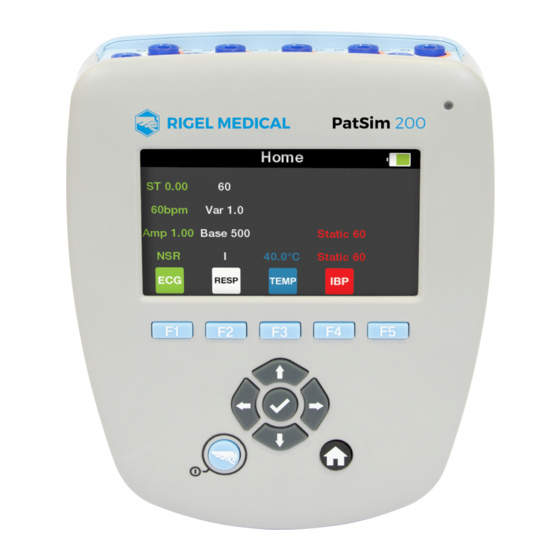

  • Page 7: Getting To Know Your Patsim 200

    RIGEL MEDICAL PatSim 200 USER MANUAL 1.1. Getting to know your PatSim 200 Charging LED status Temperature output Function keys F1-F5 IBP1 output Navigation keys IBP2 output Rigel key on/off Universal ECG connections x10 Home screen button Micro USB power input 1.2.

  • Page 8: Additional & Optional Accessories

    Whilst the charger is connected to the unit and energised, the LED light on the top right of the top fascia will be illuminated. Note: The LED does not indicate the charging status. Whilst the PatSim 200 is powered on, you will also see the below symbols on the display. Bulk Charging Trickle Charging The PatSim 200 may be used whilst charging however displayed signal quality may be reduced on some monitor types.

  • Page 9: Battery Status

    RIGEL MEDICAL PatSim 200 USER MANUAL 1.5. Battery Status During normal use, the PatSim 200 automatically checks the battery status and shows the closest representation using the symbols below. Fully charged Battery empty When the battery is completely empty the unit will warn the user that it is about to turn off before shutting down.

  • Page 10: Getting Started

    PatSim 200 USER MANUAL 2. Getting Started 2.1. Setup In the PatSim 200 there are options to change the language, temperature units and auto off time of the instrument. Selecting the Rigel key in any screen will display the Settings menu.

  • Page 11: About

    RIGEL MEDICAL PatSim 200 USER MANUAL Available Settings Language English German French Spanish Polish Simplified Chinese Temperature °C °F Auto Off 2 min 5 min 10 min 30 min 60 min 2.2. About From the Settings screen information about the tester can be viewed. Highlight About using the up and down navigation keys and select using the tick button.

  • Page 12: Screen Brightness

    RIGEL MEDICAL PatSim 200 USER MANUAL 2.3. Screen Brightness The screen brightness can be altered using the left or right navigation keys whilst in the Home screen.

  • Page 13: Favourite Simulations

    RIGEL MEDICAL PatSim 200 USER MANUAL 2.4. Favourite Simulations Up to five favourite simulation settings can be saved for recall at any time. 2.4.1. Default Settings The unit will be delivered with five default settings as detailed below. Memory Location...

  • Page 14: Recalling A Favourite Setting

    RIGEL MEDICAL PatSim 200 USER MANUAL 2.4.2. Recalling a Favourite Setting Selecting the Rigel key in any screen will display the Settings menu. Selecting one of the five function keys allows access to the corresponding / default settings. In the Recall Settings screen a message asking if you are sure is displayed.

  • Page 15: Adding A New Favourite Setting

    RIGEL MEDICAL PatSim 200 USER MANUAL 2.4.3. Adding a New Favourite Setting Selecting the Rigel key in any screen will display the Settings menu. Holding one of the function keys for 3 seconds will save the current settings to that memory location.

  • Page 16: Simulation Settings

    RIGEL MEDICAL PatSim 200 USER MANUAL 3. Simulation Settings The PatSim 200 is capable of the below simulations: • ECG wave forms Arrhythmias Performance Waveforms Pacer Waveforms Fetal Maternal • Respiration • Temperature • Invasive Blood Pressure (2 Channel) A list of all settings available for each simulation are available at the end of each section.

  • Page 17: Ecg Settings

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.1. ECG Settings Selecting F1 from the Home screen selects the ECG Menu with the current settings displayed. Note: All ECG waveform images are representations specifically for Lead II...

  • Page 18: Normal Sinus Rhythm

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.1.1. Normal Sinus Rhythm Selecting F1 in the ECG Menu displays the Normal Sinus Rhythm menu. This screen shows the current settings. The up & down navigation keys can be used to highlight the parameter to change and the left &...
  • Page 19 RIGEL MEDICAL PatSim 200 USER MANUAL To leave any of these screens select the back button, F1, to go back to the previous menu or the Home button to go back to the Home screen. Amplitude (lead II) 0.05 mV to 0.45 mV (0.05 mV steps) 0.5 mV to 5.5 mV (0.5 mV steps)

  • Page 20: Arrhythmias

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.1.2. Arrhythmias Selecting F2 in the ECG Menu displays the Arrhythmias menu. The up & down arrow keys can be used to highlight the type of arrhythmia to simulate and selected using the tick button.
  • Page 21 RIGEL MEDICAL PatSim 200 USER MANUAL To leave any of these screens select the back button, F1, to go back to the previous menu or the Home button to go back to the Home screen. Available Arrhythmia Settings Ventricular Asystole...
  • Page 22 RIGEL MEDICAL PatSim 200 USER MANUAL Premature Premature Atrial Contraction Premature Nodal Contraction Premature Left Ventricle Contraction Premature Left Ventricle Contraction - Early Premature Left Ventricle Contraction - R on T Premature Right Ventricle Contraction Premature Right Ventricle Contraction - Early...

  • Page 23: Performance Waveform

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.1.3. Performance Waveform Selecting F3 in the ECG Menu displays the Performance Waveform menu. This screen shows the current settings. The up & down navigation keys can be used to highlight the parameter to change and the left & right navigation keys to select the required parameter.

  • Page 24: Pacer Waveforms

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.1.4. Pacer Waveforms Selecting F4 in the ECG Menu displays the Pacer Waveforms menu. This screen shows the current settings. The up & down navigation keys can be used to highlight the parameter to change and the left & right navigation keys to select the required parameter.
  • Page 25 RIGEL MEDICAL PatSim 200 USER MANUAL To leave any of these screens select the back button, F1, to go back to the previous menu or the Home button to go back to the Home screen. Available Pacer Waveforms Simulated Rhythms...

  • Page 26: Fetal Maternal

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.1.5. Fetal Maternal Selecting F5 in the ECG Menu displays the Fetal Maternal menu. This screen shows the current settings. The up & down navigation keys can be used to highlight the parameter to change and the left & right navigation keys to select the required parameter.

  • Page 27: Respiration Settings

    RIGEL MEDICAL PatSim 200 USER MANUAL Available Fetal Simulation Settings Maternal heart rate (fixed) 80 bpm Fetal heart rate (selectable) 60, 90, 120, 140, 150, 210 and 240 bpm Fetal heart rate (IUP) 140 bpm at beginning, then varying with pressure...

  • Page 28: Temperature Settings

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.3. Temperature Settings Selecting F3 from the Home screen displays the Temperature menu. This screen shows the current settings. The left & right navigation keys can be used to select a preferred setting. Alternatively, the function keys, F1 to F4, can be used as fast keys to select a corresponding temperature.

  • Page 29: Invasive Blood Pressure Settings

    RIGEL MEDICAL PatSim 200 USER MANUAL 3.4. Invasive Blood Pressure Settings Selecting F4 from the Home screen displays the Invasive Blood Pressure menu. This screen shows the current settings. Use function keys F1 or F2 to select the required channel. The up & down navigation keys can be used to highlight the parameter to change and the left &...
  • Page 30 RIGEL MEDICAL PatSim 200 USER MANUAL To leave this menu select the Home button to go back to the Home screen. Available IBP Settings Channels Static Pressure -10, 5, 0, 20, 40, 50, 60, 80, 100, 150, 160, 200, 240, 320,...

  • Page 31: Maintaining The Patsim 200

    4. Maintaining the PatSim 200 4.1. Cleaning the PatSim 200 The PatSim 200 case can be cleaned with a damp cloth with, if necessary, a small amount of mild detergent. However, care must be taken to prevent excessive moisture around the socket panel or in the lead storage area.

  • Page 32: Specifications

    RIGEL MEDICAL PatSim 200 USER MANUAL 5. Specifications 5.1. Technical Specifications General ECG Simulation Full 12 lead ECG with independent outputs for each signal lead Lead I Lead II 100% Lead III Lead V1 Lead V2 Lead V3 100% Lead V4...
  • Page 33 RIGEL MEDICAL PatSim 200 USER MANUAL Atrial Conduction Waveforms First Degree AV Block Left Bundle Branch Block Right Bundle Branch Block Second Degree AV Block - Mobitz I Second Degree AV Block - Mobitz II Third Degree AV Block Premature Waveforms...
  • Page 34 RIGEL MEDICAL PatSim 200 USER MANUAL Respiration Simulation Rates 0, 5, 10, 15, 30, 40, 60, 80, 120, 180 brpm Resistance Variations Accuracy ±10% Base resistances Accuracy ±5% Lead selection 1 (LA), 2(LL) user selectable Apnoea Simulation Manual on/off Temperature Simulation...

  • Page 35: General Specifications

    RIGEL MEDICAL PatSim 200 USER MANUAL 5.2. General Specifications General Specifications Mains power/Battery info 3.7V 3900mAh 14.4WH Li-Ion battery 5V 1A USB micro-B power supply 100-240V ~ 50/60Hz 0.18A max. Charge time (new battery) Up to 6 hours Battery life...

  • Page 36: Appendix

    RIGEL MEDICAL PatSim 200 USER MANUAL 6. Appendix 6.1. Invasive Blood Pressure Socket Wiring Diagram The wiring diagram for any of the IBP sockets is as follows: Notes: 1, Pinout: +VE Excitation No Connection +VE Output VE Excitation No Connection...
  • Page 37 RIGEL MEDICAL PatSim 200 USER MANUAL 7. Support 7.1. Contact Us Sales and Delivery enquiries Tel: +44 (0) 191 586 3511 Fax: +44 (0) 191 586 0227 Email: sales@rigelmedical.com Technical enquiries Tel: +44 (0) 191 586 3511 Email: support@rigelmedical.com Service, Calibration and Repair...
