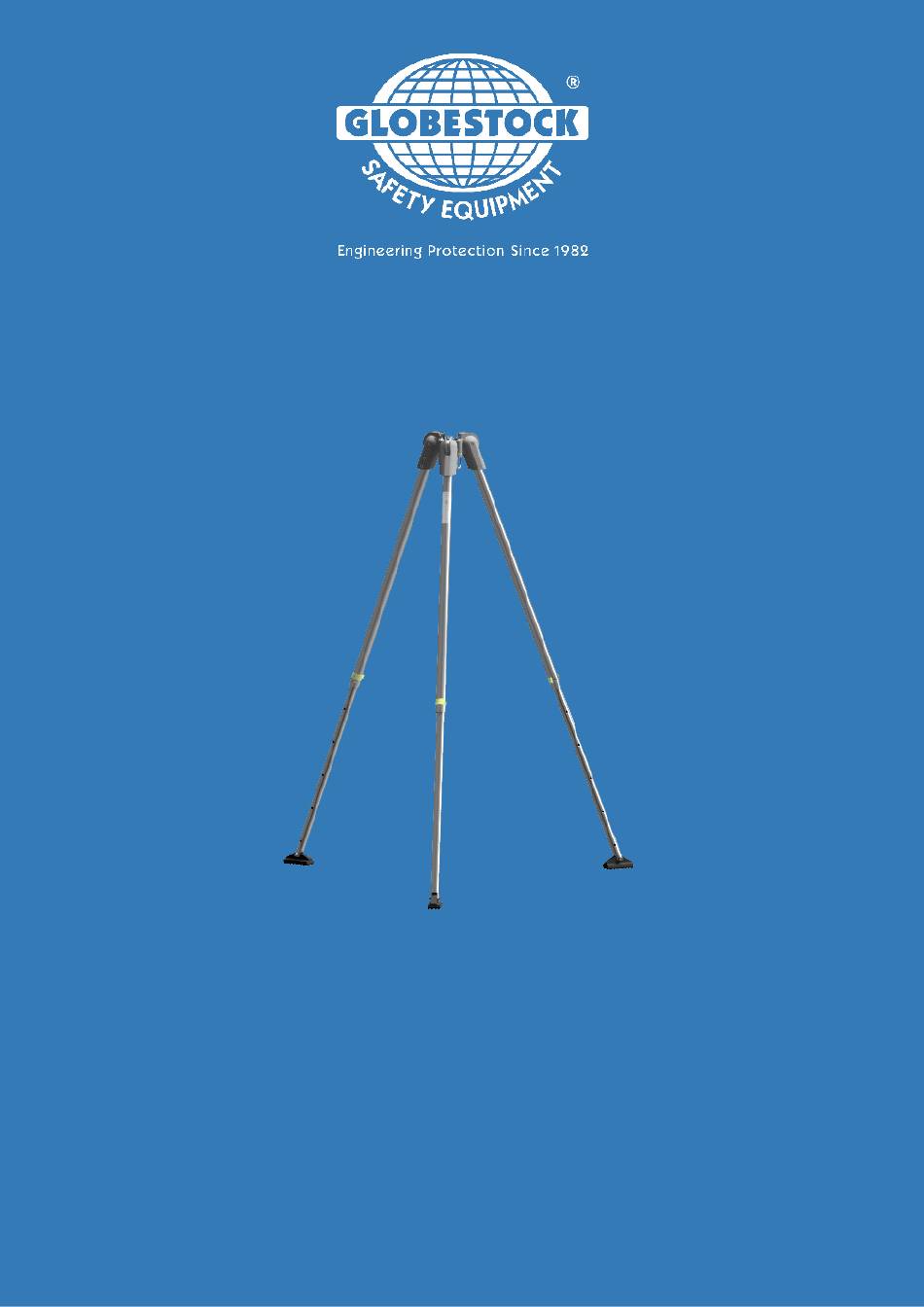

- Page 1 SERVICE MANUAL Tripod Series: 210 Issue: 003 Date: 03/08/21...
- Page 2 • Valved dust mask NOTE: This manual is only a basic reference for fully trained and approved personnel. It cannot replace training. Before carrying out any work, first identify the unit, then refer to the relevant sub-assembly and final assembly drawings. www.globestock.co.uk +44(0) 1691 654 966 Globestock Ltd, Mile Oak Industrial Estate, Maesbury Road, Oswestry, Shropshire, SY10 8GA UK...
- Page 3 210 Series Assessment Remove all components and accessories from the tripod before servicing. Where necessary, components should be cleaned. All components should be examined for damage, corrosion, excessive wear and to ensure they are suitable for a further period of use. Ensure fasteners are present and secure where fitted.
- Page 4 Ensure the legs fold open and close freely. Inspect the Head left and right head bolt and that when in travel position Bolt the legs are parallel to one another. Adjust if necessary. Check that the rope guide-locking ring rotates and is held in position by the ball spring plunger.
- Page 5 Testing Static Load Testing Extend the legs to full height, then secure with the leg adjustment clips. To load lest the tripod, suspend a 600kg test load from the bow-nut. The tripod must support the test load for at least 15 seconds. Final Checks (Following Testing) Inspect all fasteners and joints for correct adjustment and movement.
- Page 7 230 Series Assessment Remove any of the following components or sub-assemblies as necessary to enable servicing. See the assembly drawings for lubricant or retaining compound details. Inspect any accompanying accessories, including varying sizes of arrester brackets. Ensure the thread for the clamp body lever is in good condition and can be 34 m easily screwed in and out of the threaded hole in the...
- Page 8 Inspect the head castings and ensure: There are no signs of damage or cracks. Pay particular attention to possible hair-line cracks. The legs open and close smoothly and the locating pin holes align correctly. Inspect the head locking pin and ensure: It is in good condition with no signs of damage.
- Page 9 Testing Static Load Testing Extend the legs to full height, then secure with the leg adjustment clips. To load test the tripod, suspend a 600kg test load from either of the bow-nuts. The tripod must support the test load for at least 15 seconds. Final Checks (Following Testing) Inspect all fasteners and joints for correct adjustment and movement.
- Page 10 TRIPOD CHAIN HOIST LOAD CELL TEST FIXTURE 230 Compact 230 Standard 210 Series...
- Page 14 Globestock Ltd. reserve the right to change specifications without prior notice. All information herein is copyright protected by Globestock Ltd. 2021. The Globestock logo and name is a registered trademark of Globestock Ltd. +44 (0) 1691 654 966 | info@globestock.co.uk | www.globestock.co.uk...
