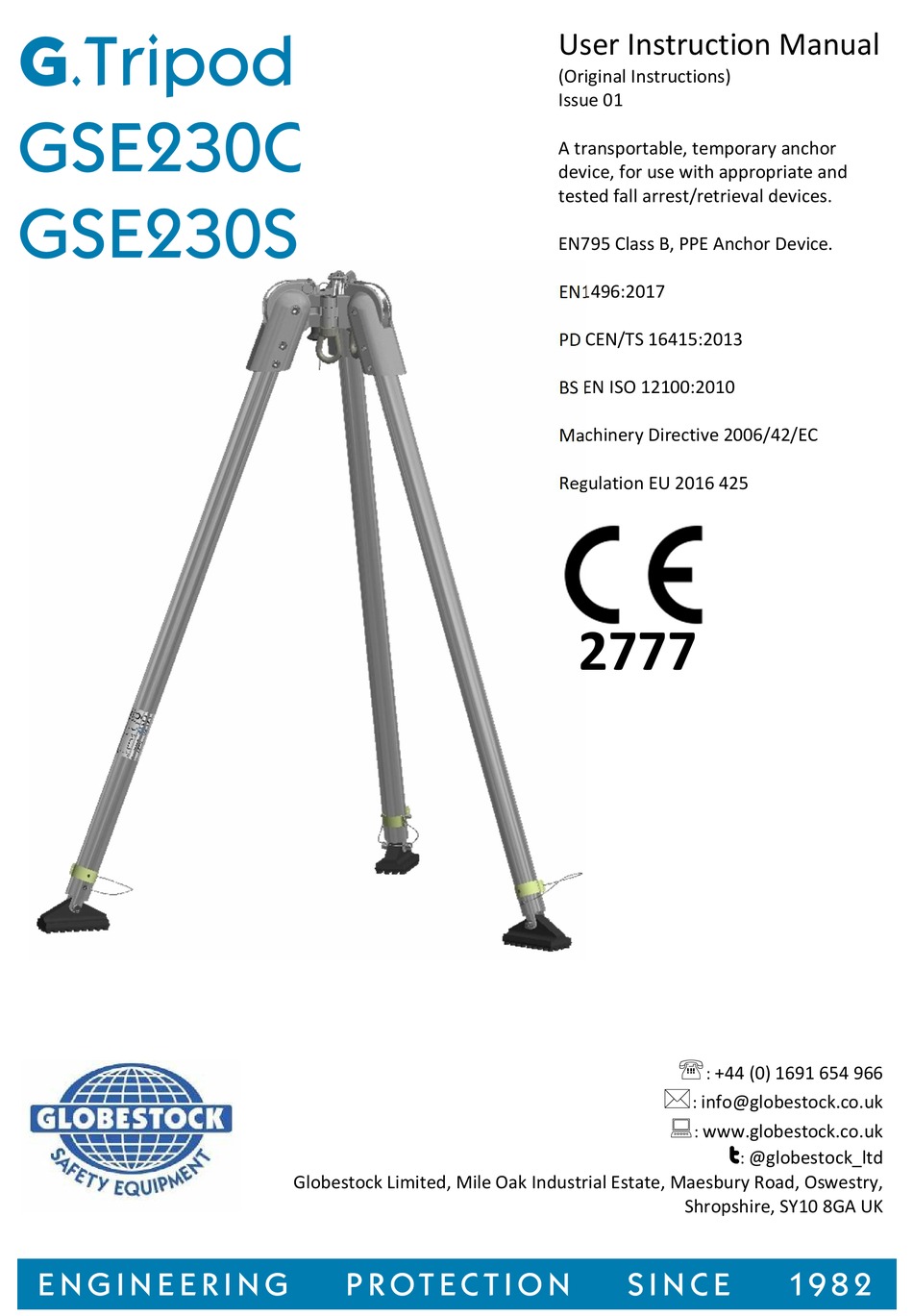

User Instruction Manual
(Original Instructions)
Issue 01
A transportable, temporary anchor
device, for use with appropriate and
tested fall arrest/retrieval devices.
EN795 Class B, PPE Anchor Device.
EN1496:2017
PD CEN/TS 16415:2013
BS EN ISO 12100:2010
Machinery Directive 2006/42/EC
Regulation EU 2016 425
2777
+44 (0) 1691 654 966
:
info@globestock.co.uk
:
www.globestock.co.uk
:
t
@globestock_ltd
:
Globestock Limited, Mile Oak Industrial Estate, Maesbury Road, Oswestry,
Shropshire, SY10 8GA UK

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G.Tripod GSE230C and is the answer not in the manual?

Questions and answers

Related Manuals for Globestock G.Tripod GSE230C

Summary of Contents for Globestock G.Tripod GSE230C

  • Page 1 PD CEN/TS 16415:2013 BS EN ISO 12100:2010 Machinery Directive 2006/42/EC Regulation EU 2016 425 2777  +44 (0) 1691 654 966  info@globestock.co.uk  www.globestock.co.uk  @globestock_ltd Globestock Limited, Mile Oak Industrial Estate, Maesbury Road, Oswestry, Shropshire, SY10 8GA UK...

  • Page 2: Table Of Contents

    Contents Notified body responsible: ..............................3 EU Type Examination Certification ............................ 3 Ongoing Conformity (Module D) ............................3 Important Notice ................................4 G.Tripod ..................................5 Considerations For Use..............................6 Inspection Before Use ..............................7 Setup For Use ................................. 7 Attaching To The G.Tripod ............................

  • Page 3: Notified Body Responsible

    SATRA Technology Europe Ltd, Bracetown Business Park, Clonee, Co. Meath D15 YN2P Ireland. Notified Body Number 2777 Ongoing Conformity (Module D) Machinery Directive SGS Fimko Ltd. Takomotie 8,00380 Helsinki, Finland Notified Body Number: 0598. EU Declaration Of Conformity available at https://www.globestock.co.uk/technical/declarations-of-conformity/ Issue 01...

  • Page 4: Important Notice

    It is prohibited to make any alterations or additions to this equipment without the prior, written consent of Globestock Ltd. Any necessary repair will be carried out by Globestock Ltd, or by an authorised Globestock Ltd service agent, in line with our procedures.

  • Page 5: G.tripod

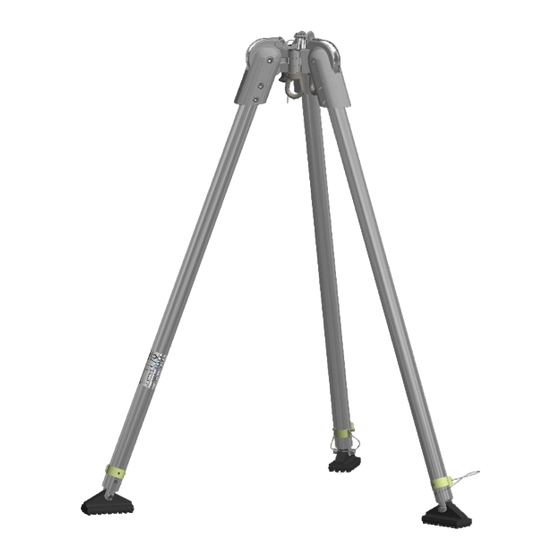

    2. G.Tripod The G.Tripod is a lightweight, transportable, aluminium tripod typically used during confined space access or down hole applications. It is suitable for use as a fall arrest anchorage device. It is available in two sizes, Compact (GSE230C) and Standard (GSE230S). For Example: Used mounted over entrance hole, for personnel entering areas of restricted access or for confined space entry.

  • Page 6: Considerations For Use

     Should any doubt arise about the safe condition of this device, or it has been used to arrest a fall, DO NOT USE.  Return to Globestock or a Globestock authorised servicing agency for assessment, service and re- certification, before further use ...

  • Page 7: Inspection Before Use

     Check for the presence and legibility of the product label. 5. Setup For Use If in any doubt please contact either a specialist or Globestock Ltd for advice. Where possible, the equipment should be setup in a safe area and then be moved into place by two or more people, so that it is ready for use.
  • Page 8  Raise the G.Tripod to the required height. Take the first leg and extend it to the desired height setting. Repeat with the remaining legs. Fix the legs at the required lengths with the retained leg adjustment clip, passing the pin through the holes in the outer and inner leg tubes. ...

  • Page 9: Inspection & Maintenance

    Repairs or servicing should never be carried out on site or in the field, and should only be completed by the manufacturer or a service agent approved by the manufacturer. Do not tamper with or modify the unit. Any alterations or additions to the equipment can only be carried out with the prior written consent of Globestock Ltd.

  • Page 10: G.tripod Specifications

    7. G.Tripod Specifications Maximum Height Leg Span Folded GSE230S GSE230C Maximum Height 2.31m 1.75m Anchor Point Height 2.14m 1.58m Leg Span 1.75m 1.32m Folded Height 1.53m 1.22m Weight 20.8kg 18.0kg Product Label Definitions 1. Model Number 2. Manufacturers contact details 3.
