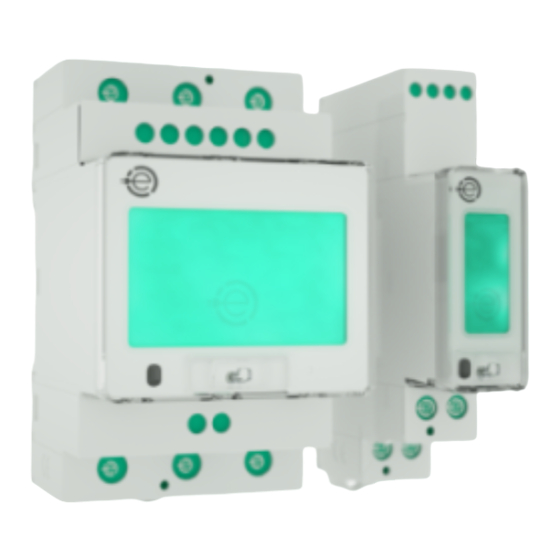

Summary of Contents for Free2Move eSolutions MIDcoounter

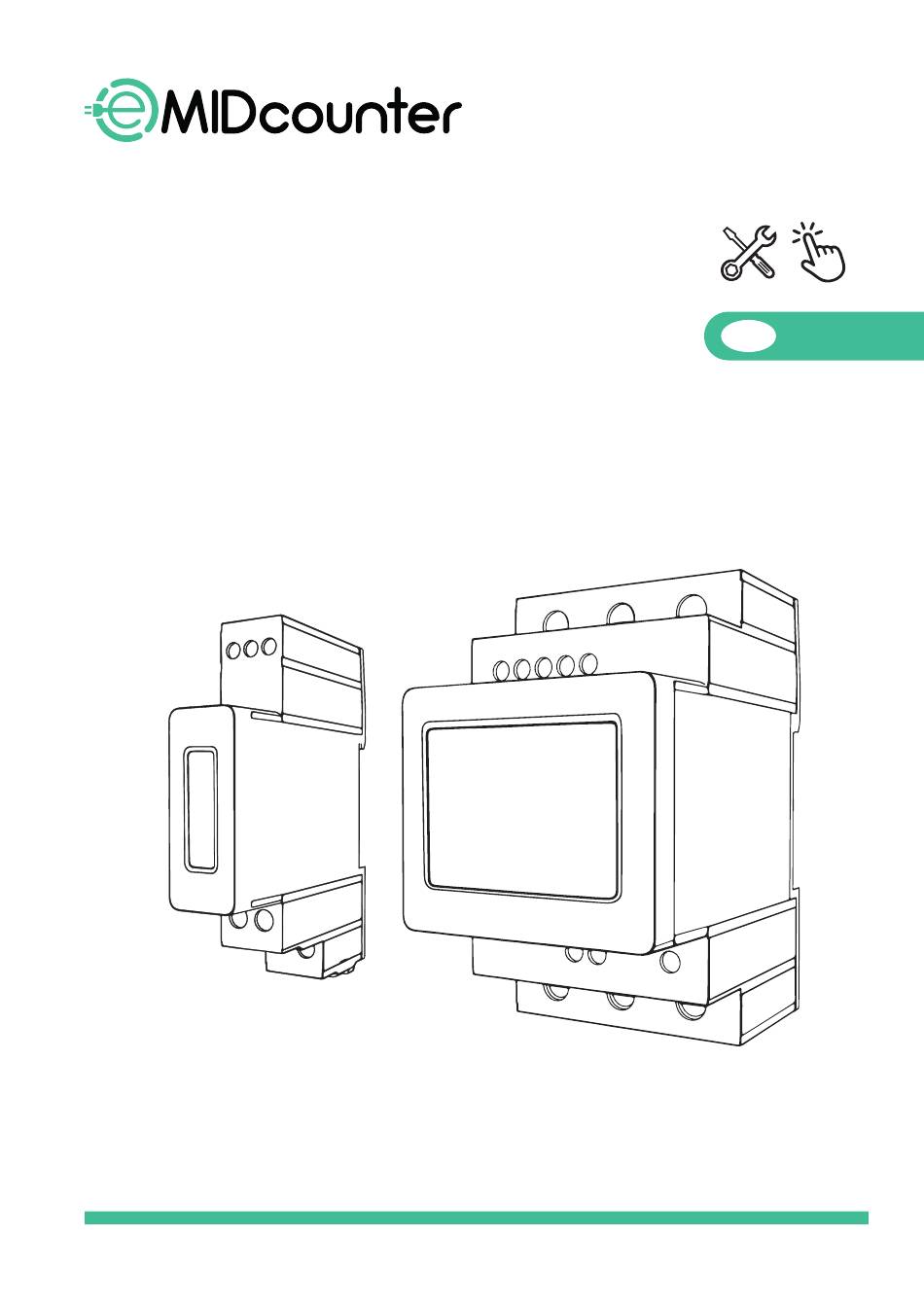

- Page 1 INSTALLATION AND USER MANUAL...
- Page 2 Such behavior can cause serious danger and harm to you and to the people, things or animals around you. Only energy meters provided by Free2move eSolutions S.p.A. are compatible. Installation must be performed by qualified personnel in accordance with local regulations.
- Page 3 For the three-phase or single-phase electrical connection, refer to the dedicated installation manual included in the MIDcounter package. Feed the Modbus communication cables through the wallbox box sheath (C). Suggested cable: STP class 5E, 0.5 mm section. Use the following order for connecting the communication cables from the MIDcounter to the wallbox.
- Page 4 MIDcounter AND PowerMeter INSTALLATION If the MIDcounter is installed together with the PowerMeter, they must be connected as shown in the diagram below: Eletrical panel Eletrical panel RS485 Port CN12 MIDcounter Wallbox RS485 Port CN12 MIDcounter Wallbox Utility Meter PowerMeter Utility Meter PowerMeter Loads...
- Page 5 Now configure both the PowerMeter and MIDcounter. Set the device address as following: Device address: 001 (PowerMeter) Device address: 002 (MIDcounter) Then set the following parameters on both devices: Bits per second: 38400 bit/s Parity: Even Stop bit: 1 ...
- Page 6 CONFIGURATION OF THE MIDcounter Download eSolutions Charging, a dedicated App available for Android and iOS that allows you to configure your wallbox and monitor the operating parameters. o not try to install th Log in on the App and associate the wallbox to your profile by framing the personal QR code printed on your wallbox, on the back of the external cover.
- Page 7 Registered office Free2move eSolutions S.p.A Piazzale Lodi, 3 20137 Milan - Italy esolutions.free2move.com...
