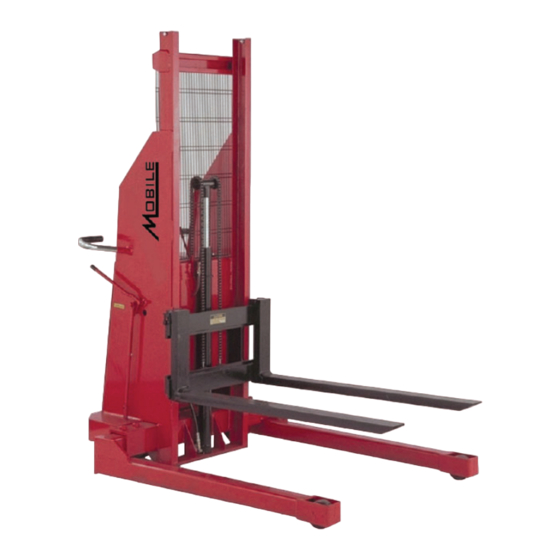

- Page 2 STACKER INSTRUCTION MANUAL The Mobile Stackers are lifting devices featuring easy, flexible, reliable and safe operation suitable for transportation of loads in such applications as warehouses, manufacturing facilities, storerooms and workshops, and require no special training or certification. In order to help you use this piece of equipment correctly, please read the instruction manual carefully before operating.
- Page 3 Ensure that the operator’s feet are clear of the frame when moving the unit. The battery should not be allowed to run down completely so Mobile Stackers are equipped with a 10 amp onboard charger. To recharge the battery simply plug the charger into any standard 110 volt outlet. The required charge time depends on the amount of usage.
- Page 4 Remove assembly and let oil drain from unit to flush the Carriage will not raise Pump valve assembly opening. Reassemble. Carriage will not lower Release plunger Adjust valve screen. MOBILE INDUSTRIES Inc. Tel: 905-279-5370 / 800-527-4612 Fax: 905-279-7384 / 800-952-5097 www.mobilept.com / info@mobilept.com...
- Page 5 Mobile Standard Battery Model Stacker Parts List Item Part Part Name 1001 Screen Assembly, Safety 1002 Spring, Compression 1003 Washer, Flat 1004 Pad, Brake 1005 Bolt & Nut 1006 Bolt, Hexagon 1007 Door 1008 Caster 1009 Bolt 1010 Cylinder Packing Kid...
