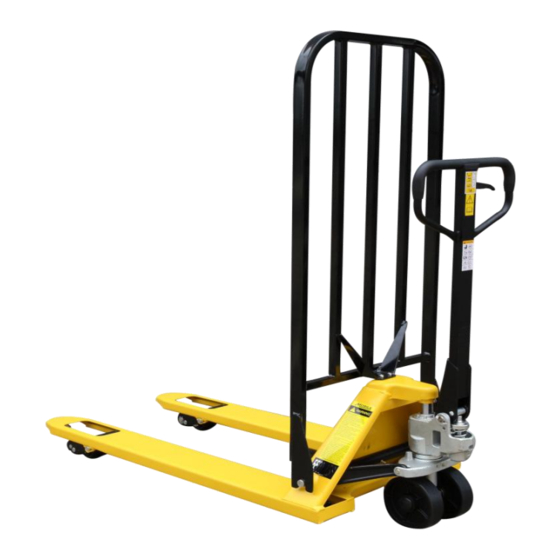

- Page 1 OPERATING INSTRUCTIONS Parts List ECO I-55 w/ Load Backrest Note: Owner and operator MUST read and understand the operating instructions before using the Hand Pallet Truck.
-
Page 2: General Specifications
Thank you for using our pallet truck. Your pallet truck is made of high quality steel and is designed for the horizontal lifting and transport of loads on a pallet or standardized containers on a level, fixed base. For your safety and correct operation, please carefully read this instruction before using it. NOTE: All of the information reported herein is based on data available at the moment of printing. -
Page 3: To Adjust Release Device
When attaching the handle, you had better squat just behind the pallet truck. Then you: 2.1 Insert the draw-bar onto the pump piston (303), then use a hammer to insert the axle with hole (105A) into the hydraulic pump. (See fig. 2 ). 2.2 Let control handle(117 or 120G) to the ‘LOWER’... -
Page 4: Maintenance
DRIVE position functions properly. 3.2 If the forks descend while pumping in the DRIVE position, turn the nut(104) or screw(318) counter-clockwise until the forks do not lower. 3.3 If the forks do not descent when the control handle (117 or 120G) is in the LOWER position, turn the nut(104) or screw (318) clockwise until raising the control handle(117 or 120G) lowers the forks. -
Page 5: Troubles Shooting
TROUBLES SHOOTING Trouble Clause Fixing Methods 1 The forks can -The hydraulic oil is not enough. -Pour in the oil. not be up the max. height. -Without hydraulic oil. -Fill in the oil. The forks can -The oil has impurities. -Change the oil. - Page 7 LIST of DRAW-BAR Description Qty. Remark 18E101 Release Rod 18E102+103 Chain Adjusting Bolt 18E104 Adjusting Nut 105A 18E105 Axle with Hole 18E106 Elastic Pin 18E107 Bushing 18E108 Roller Pin 18E109 Pressure Roller 109A 18E109A Bushing 18E111 Stop Rubber 18E112 Elastic Pin 18E113 Blade Spring 18E114...
- Page 9 LIST OF FORK FRAME Description Qty. Remark 18E202 Elastic Pin For Type A 202G 18E202G Bolt For Type G 18E203 Rock - Arm 18E204 Bushing 18E205 Shaft 18E206 Bushing 18E207 Bushing 18E208 Retaining Ring 18E210 18E209 Joint 18E211 For Type C 18E212 Pushing Rod B209...
- Page 10 NOTE: *-- For double wheel; #-- For single wheel...
- Page 11 Type Y hydraulic pump Description Qty. Remark Mobile # 18E301 Spring Cap 18E302 Spring 18E303 Pump Piston 18E304 Dust Ring 18E305 Seal 18E306 Dust Cover 18E307 Locking Ring 18E308 Washer 18E309 Bearing PU steering wheel 18E310P-1 Rubber steering wheel 18E310R-1...
- Page 13 QUICK LIFTING HYDRAULIC PUMP Mobile # Description Qty. Remark 301F 18E301F Spring Cap 302F 18E302F Spring 303F 18E303F Pump Piston for Quick Lifting 322FA 18E2 Pump for Quick Lifting 335F 18E335F 336F 18E336F Cap of Pin 337F 18E337F O - Ring...
- Page 14 Load Backrest Mobile # Description Qty. Remark 18ELBR1 Bolt 18ELBR2 Spring Washer 18ELBR3 Washer 18ELBR4 Load Back Rest...
- Page 15 MOBILE INDUSTRIES INC. 3610 Mavis Road, Mississauga, Ontario, L5C 1W2, CANADA Tel: (905) 279-5370 Toll-free: 800-527-4612 Fax: (905) 279-7384 Toll-free: 800-952-5097 E-mail: intl@mobilept.com Website: www.mobilept.com...
