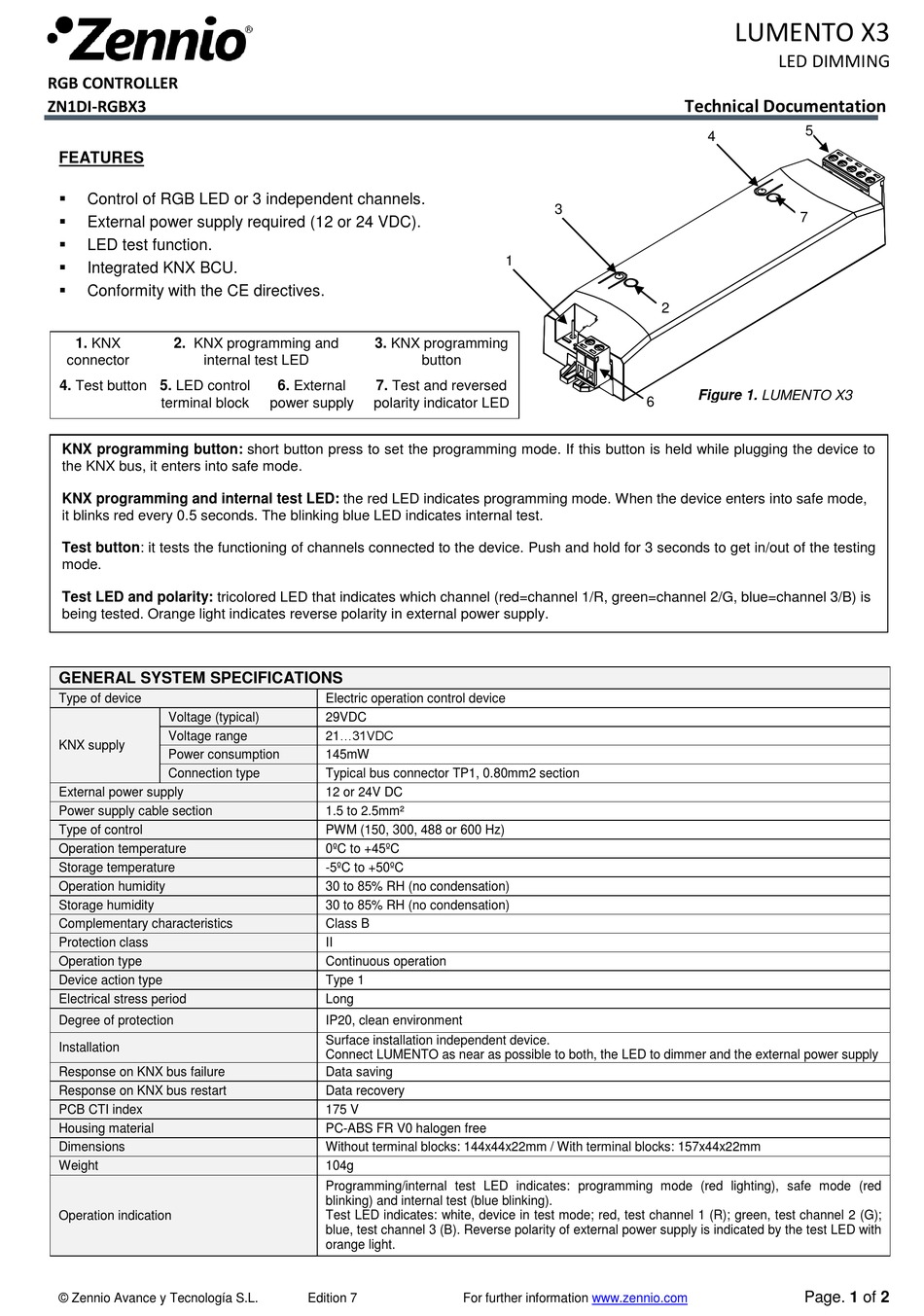

Zennio LUMENTO X3 Technical Documentation

RGB CONTROLLER
ZN1DI-RGBX3

FEATURES


Control of RGB LED or 3 independent channels.

External power supply required (12 or 24 VDC).

LED test function.

Integrated KNX BCU.

Conformity with the CE directives.
1. KNX 2. KNX programming and
connector internal test LED
4. Test button 5. LED control
terminal block
KNX programming button: short button press to set the programming mode. If this button is held while plugging the device to
the KNX bus, it enters into safe mode.
KNX programming and internal test LED: the red LED indicates programming mode. When the device enters into safe mode,
it blinks red every 0.5 seconds. The blinking blue LED indicates internal test.
Test button: it tests the functioning of channels connected to the device. Push and hold for 3 seconds to get in/out of the testing
mode.
Test LED and polarity: tricolored LED that indicates which channel (red=channel 1/R, green=channel 2/G, blue=channel 3/B) is
being tested. Orange light indicates reverse polarity in external power supply.

GENERAL SYSTEM SPECIFICATIONS

Type of device
Voltage (typical)
Voltage range
KNX supply
Power consumption
Connection type
External power supply
Power supply cable section
Type of control
Operation temperature
Storage temperature
Operation humidity
Storage humidity
Complementary characteristics
Protection class
Operation type
Device action type
Electrical stress period
Degree of protection
Installation
Response on KNX bus failure
Response on KNX bus restart
PCB CTI index
Housing material
Dimensions
Weight
Operation indication
© Zennio Avance y Tecnología S.L.
3. KNX programming
button
6. External 7. Test and reversed
power supply polarity indicator LED
Electric operation control device
29VDC
21...31VDC
145mW
Typical bus connector TP1, 0.80mm2 section
12 or 24V DC
1.5 to 2.5mm²
PWM (150, 300, 488 or 600 Hz)
0ºC to +45ºC
-5ºC to +50ºC
30 to 85% RH (no condensation)
30 to 85% RH (no condensation)
Class B
II
Continuous operation
Type 1
Long
IP20, clean environment
Surface installation independent device.
Connect LUMENTO as near as possible to both, the LED to dimmer and the external power supply
Data saving
Data recovery
175 V
PC-ABS FR V0 halogen free
Without terminal blocks: 144x44x22mm / With terminal blocks: 157x44x22mm
104g
Programming/internal test LED indicates: programming mode (red lighting), safe mode (red
blinking) and internal test (blue blinking).
Test LED indicates: white, device in test mode; red, test channel 1 (R); green, test channel 2 (G);
blue, test channel 3 (B). Reverse polarity of external power supply is indicated by the test LED with
orange light.
Edition 7
3
1
For further information www.zennio.com
LUMENTO X3
LED DIMMING
Technical Documentation
5
4
7
2
Figure 1. LUMENTO X3
6
Page. 1 of 2
