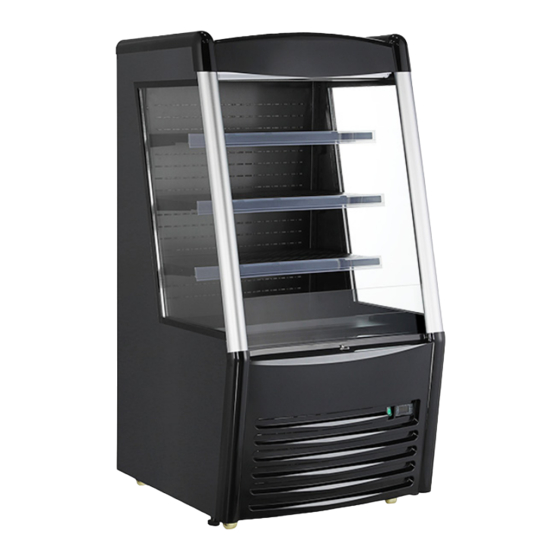

- Page 1 Refrigerated Showcases Models RS-CN-0390, 0260 Items 47514, 47515 Instruction Manual Revised - 09/23/2022 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model RS-CN-0390 / Model RS-CN-0260 Section Page Disclaimer -------------------------------------------------------------------------------------------- 3 General Information --------------------------------------------------------------------------- 4 - 5 Safety and Warranty --------------------------------------------------------------------------- 5 - 7 Technical Specifications -------------------------------------------------------------------------- 8 Operation ----------------------------------------------------------------------------------------- 8 - 9 Maintenance ----------------------------------------------------------------------------------- 9 - 10... -
Page 3: Disclaimer
Disclaimer OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO A FLOOR... -
Page 4: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 5: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 6 SUITABLE FOR HIGH TRAFFIC AREAS WHERE NOISE LEVELS ARE NOT A CONCERN. OMCAN IS NOT RESPONSIBLE FOR DIMINISHED COOLING OR ANY DAMAGES DUE TO WATER LEAKS. WARRANTY FOR WATER LEAKS IS VOID IF THE AMBIENT ROOM TEMPERATURE EXCEEDS 75°F AND 55% RELATIVE HUMIDITY, AND THE APPLIANCE DRAIN IS NOT CONNECTED DIRECTLY TO...
- Page 7 1 YEAR PARTS AND LABOUR WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule an Omcan authorized service technician to repair the equipment locally. Unauthorized maintenance will void the warranty. Warranty covers electrical and part failures not improper use.
-
Page 8: Technical Specifications
Technical Specifications Model RS-CN-0390 RS-CN-0260 Capacity 390 L / 13.77 cu.ft. 260 L / 9.18 cu.ft. Material Stainless Steel Compressor Power 3/4 HP Rated Current 6.7A Refrigerant R290 / 148g Temperature Range 0 - 12°C / 32 - 53.6°F Max Ambient Temp Rating 24°C / 75°F... -
Page 9: Operation
3. Take out the filter. CHECK FOR LEAKS Observe all connectors and welding joints for oil stains. This indicates that there is a leak, please call Omcan if you notice any oil stains. ALWAYS OBSERVE THE OPERATION OF THE UNIT, IN THE EVENT OF ANY ABNORMAL SOUNDS... -
Page 10: Troubleshooting
Maintenance SUPPLY AND CALL OMCAN. Troubleshooting Trouble Causes Solutions Strange noise under the Fan blade broken. Power off and fix the blade. bottom shelf. Non-refrigerating in spite of Unit off. Power on. normal operation. Melting process. Stop melting. Refrigerant leaking. - Page 11 Troubleshooting NOTE Following occurrences are not problems: • The murmur of water is heard when the refrigerator is working. It is a normal occurrence as the coolant is circulating in the system. • When the weather is damp, condensation might be found on the outside of the refrigerator. It is caused by high humidity.
-
Page 12: Parts Breakdown
Parts Breakdown Model RS-CN-0390 47514... - Page 13 Parts Breakdown Model RS-CN-0390 47514 Item No. Description Position Item No. Description Position Item No. Description Position 60672 Feet for 47514 61224 Dry Filter for 47514 61182 Evaporator Cover for 47514 Left Wind Screen of Evaporator for 60561 Rear Wheels for 47514...
- Page 14 Parts Breakdown Model RS-CN-0260 47515...
- Page 15 Parts Breakdown Model RS-CN-0260 47515 Item No. Description Position Item No. Description Position Item No. Description Position AL334 Night Curtain for 47515 AG596 Evaporator Fan Motor 110V for 47515 61224 Dry Filter for 47515 AL335 Board Ahead Curtain for 47515 AL354 Holder for Condenser Motor for 47515 68302...
-
Page 16: Electrical Schematics
Electrical Schematics Model RS-CN-0390 47514 Model RS-CN-0260 47515... -
Page 17: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... - Page 18 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
-
Page 19: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
