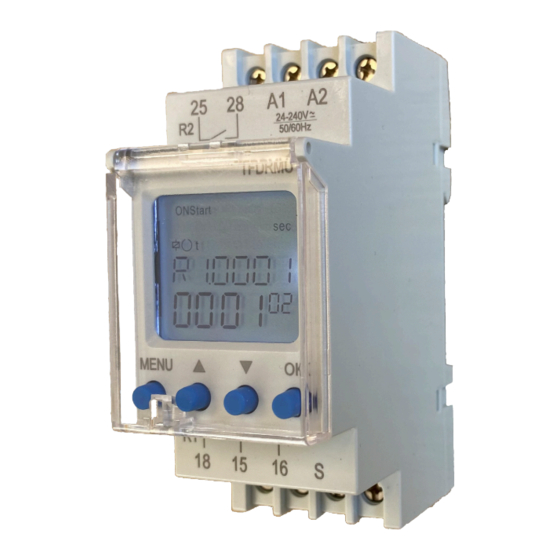

Tempatron TFDRMU User Manual

Digital multifunction timer
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

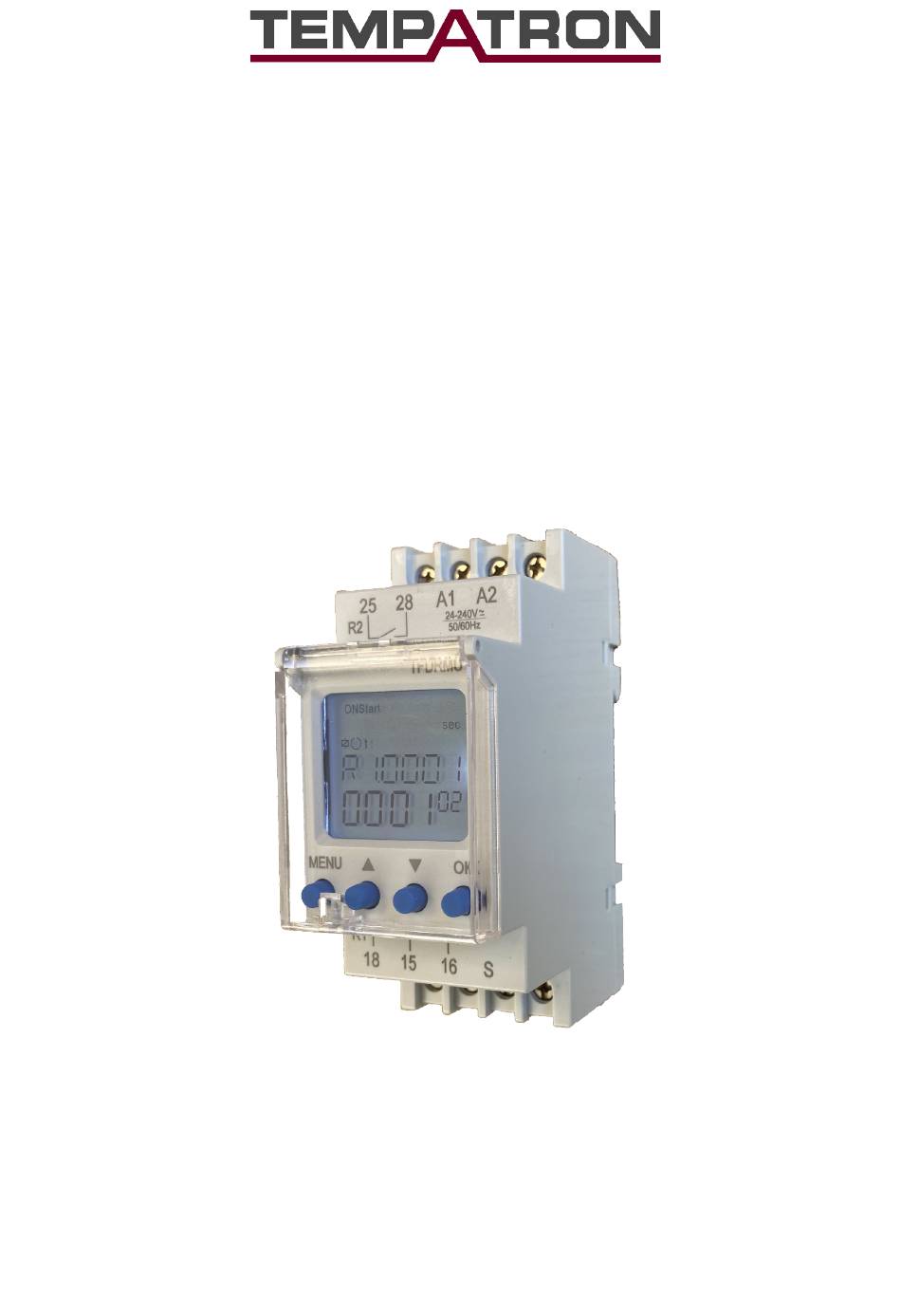

TFDRMU
Digital Multifunction Timer
User Manual
Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK.
Telephone: +44(0)1621 859500 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TFDRMU and is the answer not in the manual?

Questions and answers

Related Manuals for Tempatron TFDRMU

Summary of Contents for Tempatron TFDRMU

  • Page 1 TFDRMU Digital Multifunction Timer User Manual Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK. Telephone: +44(0)1621 859500 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk...

  • Page 2: Wiring Connections

    Please read this document carefully before using this product. The product guarantee will become invalidated by any damage to the timer caused by not following the instructions in the user manual. Tempatron do not accept any liability for personal injury, material damage or capital losses which may arise by not following the instructions in the user manual.

  • Page 3: Front Panel Display Functions

    FRONT PANEL DISPLAY FUNCTIONS TFDRMU Start mode indicator (On/Off/S pulse) ONStart Seconds or minutes indicator Output relay status indicator R1/R2 relay selected indicator R1.9999 Setpoint time value Timing function mode 0001 Run time value MENU Keypad DISPLAY SYMBOLS KEYS Output Relay ON...

  • Page 4: Operation Mode Setting

    OPERATION MODE SETTING Select MODE and press the OK key. Select output relay 1 or output relay 2 with the keys and press the OK key. Choose the desired timing function mode (from 01 to 24, see pages 5-7 for the options) with the keys and press the OK key.
  • Page 5 T2 TIME DELAY SETTING Select the T2 time setting menu and press the OK key. Select output relay 1 or output relay 2 with the keys and press the OK key. If a time in seconds (up to 9999 seconds) is required select SEC with the keys and press the OK key.
  • Page 6 05 Delayed Pulse (0.5 second) SUPPLY The time period T starts when the supply voltage is applied. At the end of the time period, VOLTAGE the output relay energises for 0.5sec before de-energising. OUTPUT RELAY 0.5s 0.5s 06 Interval (Close to Start) SUPPLY VOLTAGE With the supply voltage applied to the timer the output relay energises when the start...
  • Page 7 15 Single Delayed Cycle with Variable On and Off Times SUPPLY With the supply voltage applied the output relay is de-energised for time period T1 then VOLTAGE energises for time period T2. Removing and then reapplying the supply voltage to the timer will restart this timing process.
  • Page 8 Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK. Telephone: +44(0)1621 859500 Fax: +44(0)1621 855335 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk Tempatron Industrial Controls is a division of Eltime Ltd. © Eltime Ltd. Tempatron TFDRMU Digital Timers 06/2020...
