Tempatron TT33 User Manual

Digital multifunction timer
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
TT33
Digital Multifunction Timer
User Manual
Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK.
Telephone: +44(0)1621 859500 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT33 and is the answer not in the manual?

Questions and answers

Related Manuals for Tempatron TT33

Summary of Contents for Tempatron TT33

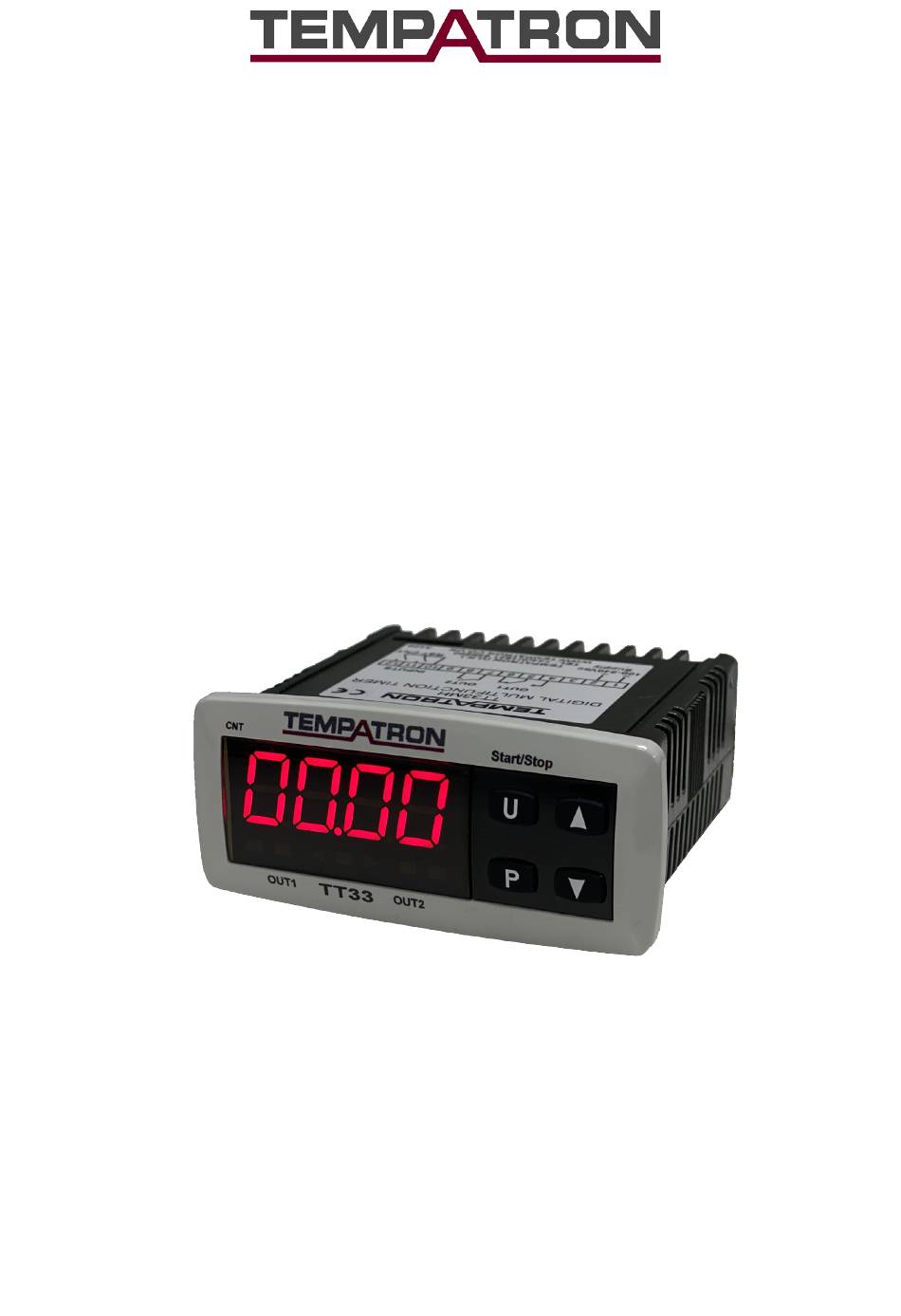

  • Page 1 TT33 Digital Multifunction Timer User Manual Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK. Telephone: +44(0)1621 859500 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk...

  • Page 2: Wiring Connections

    Please read this document carefully before using this product. The product guarantee will become invalidated by any damage to the timer caused by not following the instructions in the user manual. Tempatron do not accept any liability for personal injury, material damage or capital losses which may arise by not following the instructions in the user manual.

  • Page 3: Front Panel Display Functions

    FRONT PANEL DISPLAY FUNCTIONS TT33 KEYS & DISPLAY SYMBOLS Press and release to set the time delays (if programmed with the parameter). Press for 5 seconds to enter the programming mode. Press again to access the parameter edit mode and confirm the values. In programming mode press together with the key to change the programming level of the parameters.

  • Page 4: Parameter Setting Mode

    SET TIME PROGRAMMING (FAST MODE) 1. To set the delay times (set times) press the key, the SET LED will illuminate and the display will show (parameter acronym) and its programmed value. To change the value press the key to increase the value shown or the key to decrease it.

  • Page 5: Reset Parameters To Default Value

    CUSTOMISED PARAMETER PASSCODE PROTECTION All parameters are configured by default as protected. To make certain parameters programmable without protection whilst keeping the protection on other parameters, the procedure is as follows: - Enter program mode using the passcode and with the keys, select the parameter that must be accessible without passcode protection.
  • Page 6 = 3 Monostable Start/Stop Activating the CNT input and keeping it active, starts the timer counting and the count then stops on the value reached when the CNT input is deactivated (without disabling the output if this was activated). The next CNT impulse resumes the count from the point it stopped, RESET and so on, until the Reset signal.
  • Page 7 OUT2 OPERATING MODES The second output (OUT2) can be programmed in one of 5 different operating modes with the parameter. = oF OUT2 disabled = 1 OUT2 operates exactly the same as OUT1 to give a double output contact = 2 Instantaneous Contact Start OUT2 is energised during the counting process and remains energised until the Reset OUT1...

  • Page 8: Programmable Parameters

    Passcode disabled Passcode for parameters protection 1 to 9999 Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK. Telephone: +44(0)1621 859500 Fax: +44(0)1621 855335 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk Tempatron Industrial Controls is a division of Eltime Ltd. © Eltime Ltd. Tempatron TT33 Digital Timers 10/2020...
