Summary of Contents for Tempatron TF48
- Page 1 Tempatron Industrial Controls is a division of Eltime Ltd. TF48 Multifunction Digital Timer User Manual Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK. Telephone: +44(0)1621 859500 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk...
- Page 2 Please read this document carefully before using this product. The product guarantee will become invalidated by any damage to the timer caused by not following the instructions in the user manual. Tempatron do not accept any liability for personal injury, material damage or capital losses which may arise by not following the instructions in the user manual.

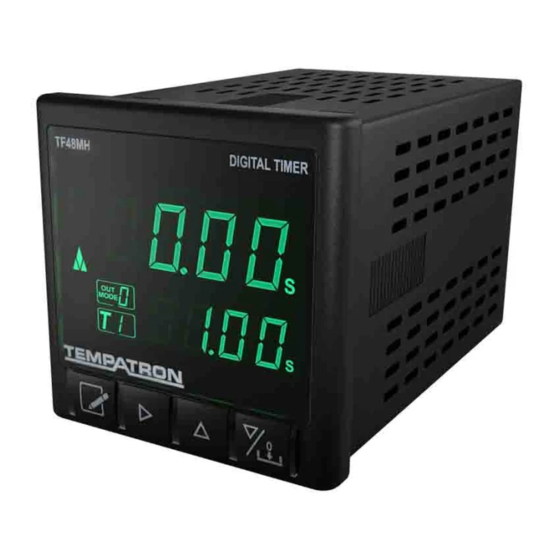

- Page 3 FRONT PANEL DISPLAY FUNCTIONS Run time value (in operation mode) Output status indicators Menu and parameter name (in programming mode) 4 digit 7 segment green LED display with 10mm high digits Counting direction indicator Output mode indicator (in operation mode) Signal input status indicators Timer setpoint selection indicator Setpoint time value (in operation mode)
- Page 4 Page 4...
- Page 5 QUICK EXPLANATION DETAILED EXPLANATION TIMING MODES MODE 0 DELAY ON ENERGISE, INTERVAL or DELAYED PULSE (CLOSE TO START, RESET WHEN START OPENS) Count Up selected Count Down selected set to HOLD, the output is continuous until the power is removed from the timer or the START input or Count Up selected RESET input is switched.
- Page 6 QUICK EXPLANATION DETAILED EXPLANATION TIMING MODES MODE 5 DELAYED CYCLE or IMMEDIATE CYCLE WITH EQUAL ON AND OFF TIME (CLOSE TO START, RESET WHEN START OPENS) Count Up selected Count Down selected is set to HOLD, output 1 cycles off/on for T1 and output 2 cycles off/on for T2 while the START input is closed Count Up selected...
- Page 7 QUICK EXPLANATION DETAILED EXPLANATION TIMING MODES MODE A DELAYED CYCLE or IMMEDIATE CYCLE WITH VARIABLE ON AND OFF TIMES (CLOSE TO START, RESET WHEN START OPENS) Count Up selected Count Down selected Count Up selected Count Down selected MODE b DOUBLE OUTPUT DELAYED CYCLE or IMMEDIATE CYCLE WITH VARIABLE ON AND OFF...
- Page 8 2. The maximum panel thickness should be 9mm. POWER SUPPLY Tempatron: Eltime House, Hall Road, Maldon, Essex, CM9 4NF UK. Telephone: +44(0)1621 859500 Fax: +44(0)1621 855335 Email: sales@tempatron.co.uk Web: www.tempatron.co.uk Tempatron Industrial Controls is a division of Eltime Ltd. © Eltime Ltd. Tempatron TF48 Digital Timers 06/2019...
