User's Manual

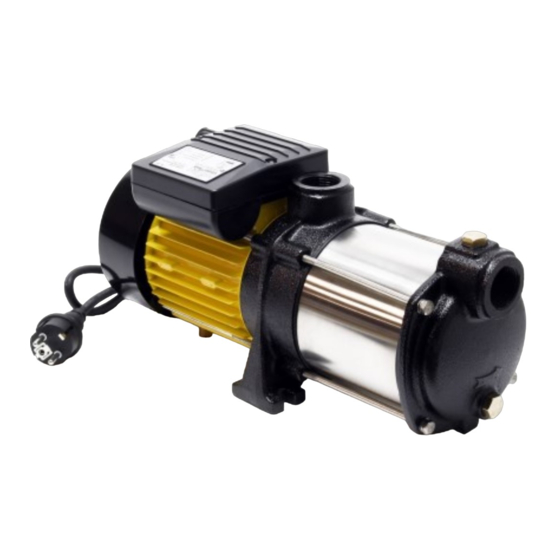

Multi-stage Centrifugal Pump
51545–51547
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Related Manuals for XPOtool 51545
Summary of Contents for XPOtool 51545
- Page 1 User’s Manual Multi-stage Centrifugal Pump 51545–51547 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 51545–51547 Page 2 The Tool Experts 10 2022-1...
- Page 3 In both cases, the flow at the outlet is reduced if the connection be bad. Checks before start • Make sure that the existing mains voltage and frequency match the specifications on the name- plate of the device. https://www.XPOtool.com Item 51545–51547 Page 3 The Tool Experts 10 2022-1...
- Page 4 Electric connections The one-phase motor has been installed with a thermo-protection. With a three-phase pump, this protection should be realised by the user. https://www.XPOtool.com Item 51545–51547 Page 4 The Tool Experts 10 2022-1...
- Page 5 Technical drawing and parts list № Name № Name № Name Driving wheel Fan cover Pump holder Outlet Bracket Mechanic seal Terminal box Rotor system Inlet housing Wrapped stator Pressure plug https://www.XPOtool.com Item 51545–51547 Page 5 The Tool Experts 10 2022-1...
- Page 6 Item 51545–51547 Page 6 The Tool Experts 10 2022-1...
-
Page 7: Troubleshooting
Air in suction line Check if suction line is well sealed. Suction valve leaking Clean suction valve. Suction strainer (suction valve) blocked Clean suction basket. Max. suction lift exceeded Check suction lift. https://www.XPOtool.com Item 51545–51547 Page 7 The Tool Experts 10 2022-1... - Page 8 Clean pump and replace worn parts. stances Thermo-switch switches off pump Cause Solution Engine overloaded – excessive friction due to for- Dismantle and clean pump, prevent sucking-in of eign particles foreign matter (Filter). https://www.XPOtool.com Item 51545–51547 Page 8 The Tool Experts 10 2022-1...
- Page 9 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 51545–51547 Page 9 The Tool Experts 10 2022-1...
