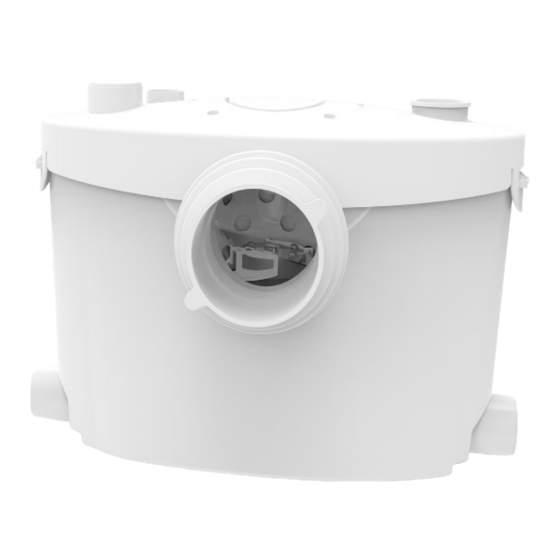

XPOtool 63898 User Manual

Macerator waste pump
Hide thumbs

Advertisement

Quick Links

Download this manual
User's Manual
Macerator Waste Pump
63898
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps and technical data may deviate insignificantly due to continuous further
developments.

Advertisement

loading
Need help?

Need help?

Do you have a question about the 63898 and is the answer not in the manual?

Questions and answers

Related Manuals for XPOtool 63898

Summary of Contents for XPOtool 63898

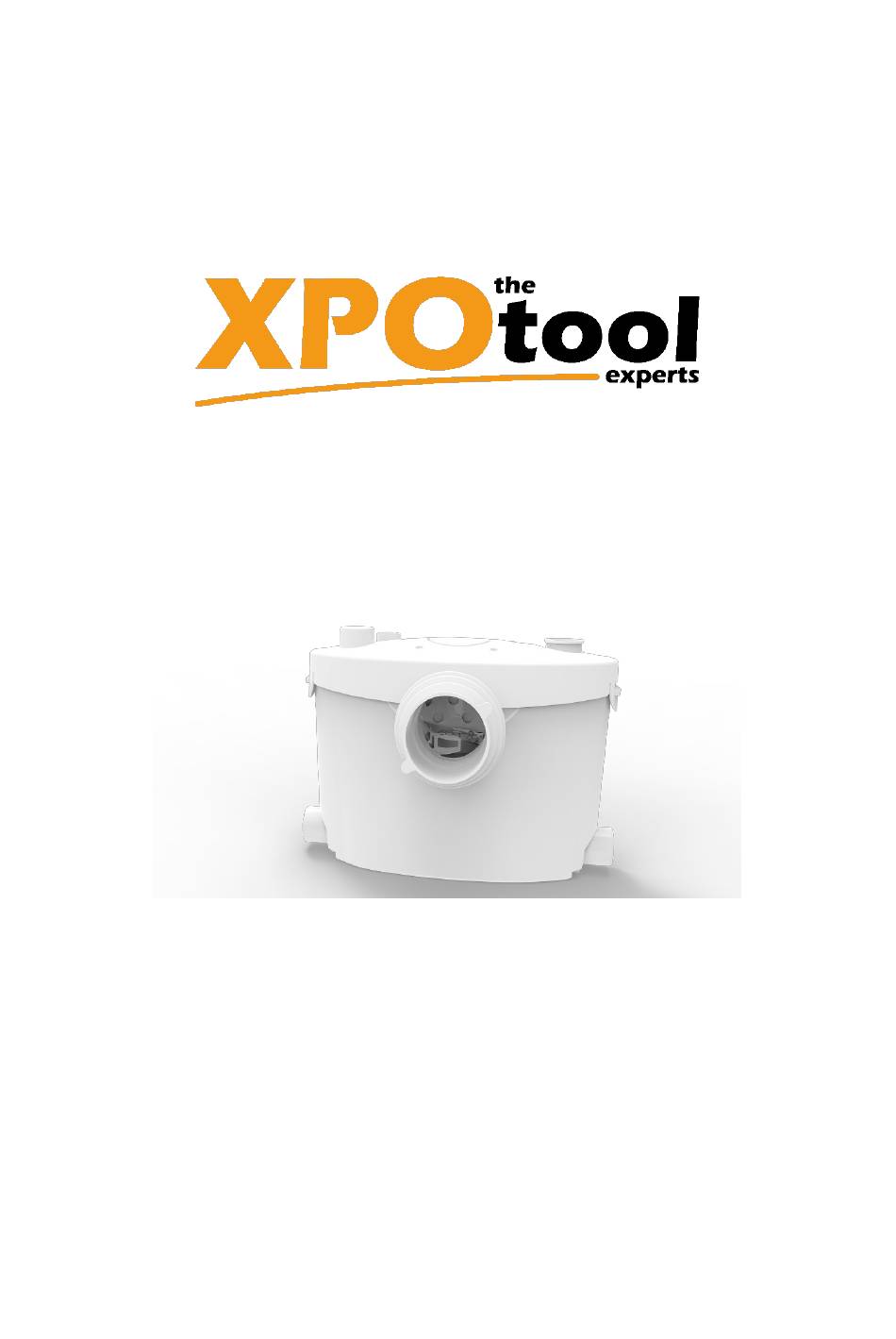

  • Page 1 User’s Manual Macerator Waste Pump 63898 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps and technical data may deviate insignificantly due to continuous further...
  • Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler – Germany E-mail: service@wiltec.info Tel: +49 2403 55592-0 Fax: +49 2403 55592-15 https://www.XPOtool.com Item 63898 Page 2 The Tool Experts 12 2022-1...
  • Page 3 Only dispose of your toilet paper, faeces, and waste water via the device. Any other kind of waste must not be thrown into the toilet. • Avoid that too much hair enters the device. https://www.XPOtool.com Item 63898 Page 3 The Tool Experts 12 2022-1...
  • Page 4 Inlet for toilet ⌀ 100 mm Emergency outlet ⌀ 10 mm Inlet ⌀ 40 mm Outlet ⌀ 23/28/32/44 mm (2 pieces) Inlet ⌀ 40 mm Repair flap Inlet ⌀ 40 mm (optional) Vents https://www.XPOtool.com Item 63898 Page 4 The Tool Experts 12 2022-1...
  • Page 5 Figures Figure 1: Dimensions (in mm) Figure 2: Spare parts https://www.XPOtool.com Item 63898 Page 5 The Tool Experts 12 2022-1...
  • Page 6 There must a minimum distance of 17 cm between the drain and floor when you use the side inlet. • Use a filter in the shower and toilet to prevent hair from getting into the device. Figure 4: Connections https://www.XPOtool.com Item 63898 Page 6 The Tool Experts 12 2022-1...
  • Page 7 Figure 5: Inlet covers (covers for non-use of inlets) Figure 6: Optional intake for additional equipment Figure 7: Fixations https://www.XPOtool.com Item 63898 Page 7 The Tool Experts 12 2022-1...
  • Page 8 Figure 9: Repair Open the upper repair flap to repair the ventilation switch and to take the block out. The entire motor and control system can as well be easily exchanged. https://www.XPOtool.com Item 63898 Page 8 The Tool Experts 12 2022-1...
  • Page 9 Item 63898 Page 9 The Tool Experts 12 2022-1...
  • Page 10 Figure 10: Heads and draws Figure 11: Flow rates https://www.XPOtool.com Item 63898 Page 10 The Tool Experts 12 2022-1...
  • Page 11 The minimum size between the outlet of the toilet and rear wall is 255 mm. Figure 13: Elbow fittings We recommend two 45° elbow fittings instead of one 90° elbow fitting. https://www.XPOtool.com Item 63898 Page 11 The Tool Experts 12 2022-1...
  • Page 12 The overheating protection of the motor is switched on as soon as the motor is overheated. Pull the plug out of the socket and plug it in again. After a waiting time of around 30–60 min, the device will work normally again. https://www.XPOtool.com Item 63898 Page 12 The Tool Experts 12 2022-1...
  • Page 13 The waste pump does not require any special maintenance; yet, it is advisable to check the operation and pipe connections at least once in a year. • Replace the activated carbon filter once in a year. https://www.XPOtool.com Item 63898 Page 13 The Tool Experts 12 2022-1...

  • Page 14: Troubleshooting

    The motor runs, but does not pump housing blocked is not wet; that vent opening in suck up water. pump housing is not blocked. Clear obstruction. Check non-re- Outlet or tubing obstructed turn valve. https://www.XPOtool.com Item 63898 Page 14 The Tool Experts 12 2022-1...
  • Page 15 Back- flow from lifting station. Check and clean the pressure Starting level has changed switch line. Suction line diameter too small Use larger diameter pipe. https://www.XPOtool.com Item 63898 Page 15 The Tool Experts 12 2022-1...
  • Page 16 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 63898 Page 16 The Tool Experts 12 2022-1...
