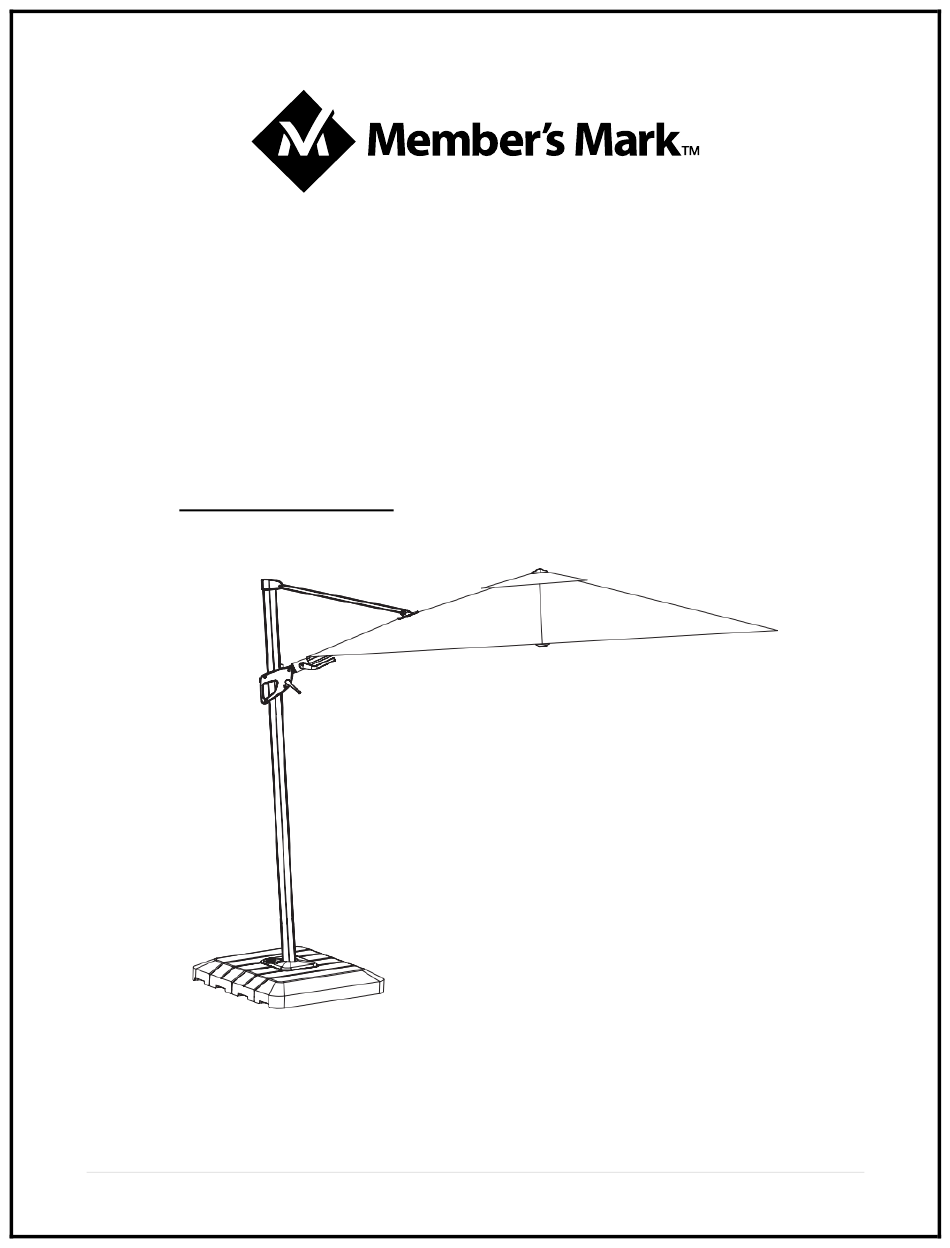

Assembly Instructions & User's Manual
for
Member's Mark 10ftx10ft Square Cantilever
Umbrella
Model Number: YJAF-819D
Customer Assistance
: 1-888-690-9800
(spare/replacement parts)
or Email: cs@sunvillahome.com
THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION.
PLEASE READ AND KEEP FOR FUTURE REFERENCE.
1 |
P a g e
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Member's Mark YJAF-819D
Summary of Contents for Member's Mark YJAF-819D
- Page 1 Assembly Instructions & User’s Manual Member’s Mark 10ftx10ft Square Cantilever Umbrella Model Number: YJAF-819D Customer Assistance : 1-888-690-9800 (spare/replacement parts) or Email: cs@sunvillahome.com THIS ASSEMBLY MANUAL CONTAINS INPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE. P a g e...
-
Page 2: Table Of Contents
Table of Contents Quality Statement ............................. 3 Important Safety Information ........................ 3 Before Assembly ............................3 Care & Use ..............................3 Package Contents ............................ 4 Product Information ..........................5 Components .............................. 5 Hardware ..............................6 Tools ................................6 Step 1 – Step 13 ............................7 Troubleshooting ............................. -
Page 3: Quality Statement
Quality Statement Important Safety Information • Please read all instructions carefully before assembling this product. • Where applicable, and for your safety, assembly by an adult is strongly recommended. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item. -
Page 4: Package Contents
Package Contents Component Description Quantity Component Description Quantity Lower Bracket Side Base Upper Bracket Middle Base Base Tube KD Base Cap Crank KD Base Cover Sunshade Fiber Glass Pole Pedal Umbrella Cloth Cover Rotation Hub Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 5: Product Information
Product Information Dimensions: 117” x 118” x 104” (298cm x 300cm x 265cm) Components Lower Bracket Upper Bracket Base Tube Qty 1 Qty 1 Qty 1 Crank Sunshade Pedal Qty 1 Qty 1 Qty 1 Rotation Hub Side Base Middle Base Qty 1 Qty 2 Qty 2... -
Page 6: Hardware
Hardware M6x20 Bolt M6x10 Bolt (extra in case M10x20 Bolt Qty: 1 missing) Qty: 4 Qty: 2 M10x25 Bolt Washer (φ10) Qty: 4 Qty: 8 Tools Hex Wrench-S8 (Included) Hex Wrench-S5 (Included) Hex Wrench-S4 (Included) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e... -
Page 7: Step 1 - Step 13
Step 1 – Step 13 Step 1 Before you start any assembly steps, first locate where you will place your new umbrella. After you have set the location for the umbrella base, open the knob on Side Base and Middle Base, fill the bases with sand (not included), then pour water (not included) into them until they can not hold any more (make sure the total weight is not less than 265lbs./120kg). - Page 8 Step 3 Release the M6x10 Bolt (BB) from Sunshade (E) using the Hex Wrench (S5). Detach Base Tube (C) from Sunshade (E) Step 4 Step 5 Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 9 Step 6 Step 7 Step 8 Place Sunshade (E) in Base Tube, securing with previously removed M6x10 Bolt (BB). Tight with Hex Wrench (S5) Need Assistance? Visit us at: samsclub.com/membersmarkhelp P a g e...
- Page 10 Step 9 Insert Crank (D) into the pre-assembled handle on Sunshade (E). Press the button in, to move umbrella up and down. Rotate Crank (D) clockwise to open canopy of Sunshade (E). To raise the canopy, press the button on the handle and lift upward. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 10 | P a g e...
- Page 11 Step 10 Step-on the Pedal (F) on the base to turn around the umbrella. To lower the canopy, gradually rotate the Crank (D) counterclockwise. Release the button to set the canopy in the desired position. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 11 | P a g e...
- Page 12 Step 11 Slowly continue cranking in a clockwise direction for your desired tilt. Do not continue to crank in a clockwise direction once the umbrella stops tilting. Turn the crank counter clockwise to return the umbrella to a straight up position. Need Assistance? Visit us at: samsclub.com/membersmarkhelp 12 | P a g e...
- Page 13 Step 12 When closing the canopy, press the button on the handle, slide it down, then attach the band back to secure the Sunshade (E) Need Assistance? Visit us at: samsclub.com/membersmarkhelp 13 | P a g e...
- Page 14 Step 13 When storing the umbrella, connect the Fiber Glass Pole (L), place the Fiber Glass Pole (L) through the hole of Umbrella Cloth Cover (M) to hold up the Umbrella Cloth Cover (M). Place the Umbrella Cloth Cover (M) on the Sunshade, then pull on the zipper. If need to use, open the zipper. Place the Fiber Glass Pole (L) through the hole of Umbrella Cloth Cover (M) to take down the Umbrella Cloth Cover (M) Need Assistance? Visit us at: samsclub.com/membersmarkhelp 14 |...
-
Page 15: Troubleshooting
Troubleshooting Problem Possible Cause Prevention / Solution The total weight is not up Fill the bases with sand (not included), then The umbrella to standard pour water (not included) into them until they base moves can not hold any more (make sure the total weight is not less than 265lbs./120kg). -
Page 16: Warranty Information
Warranty Information This product component has a 3 years guarantee against defects in material and/or workmanship. If you have any questions regarding the warranty or spare / replacement parts, please call our toll-free number 1-888-690-9800 or email us at cs@sunvillahome.com NOTE: Please consider recycling all applicable packaging material.
