VERSION # 20-06-01
1 / 7
MODEL #
CM3336SC-2PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America Edgewood CM3336SC-2PK
Summary of Contents for Furniture of America Edgewood CM3336SC-2PK

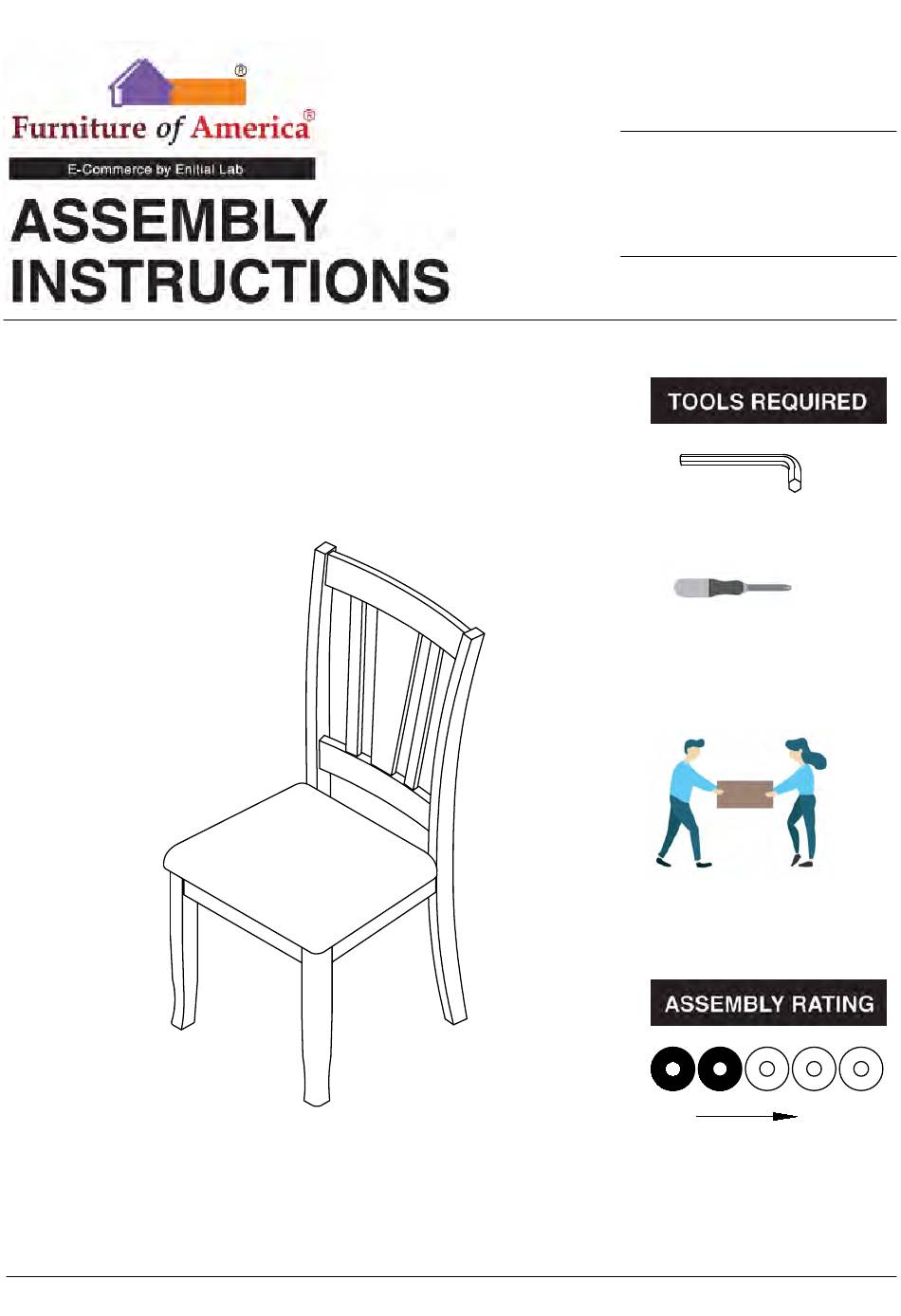

- Page 1 MODEL # CM3336SC-2PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 7...
- Page 5 SIDE CHAIR CM3336SC-2PK #3 2pcs x 2 #1 1pc x 2 #2 1pc x 2 Chair Back Cushion Seat #A 4pcs x 2 #B 4pcs x 2 #C 2pcs x 2 #D 10pcs x 2 Lock Washer Ø1/4" Bolt Ø1/4" x 3" Bolt Ø1/4"...
- Page 6 ASSEMBLY INSTRUCTIONS Align seat (#2) to the chair back (#1), then secure by using bolts (#C) with washers (#D,E). Part #1 x1pc Part #2 x2pcs Hardware #C x2pcs Hardware #D x2pcs Hardware #E x2pcs Secure corner holes of the seat to chair back Hardware #A x4pcs by using bolts (#A) with washers (#D,E).
- Page 7 ASSEMBLY INSTRUCTIONS Part #3 x2pcs Align and secure front legs (#3) to the seat, then secure by Hardware #B x4pcs using bolts (#B) with washers (#D,E). Hardware #D x4pcs Hardware #E x4pcs 7 / 7...
