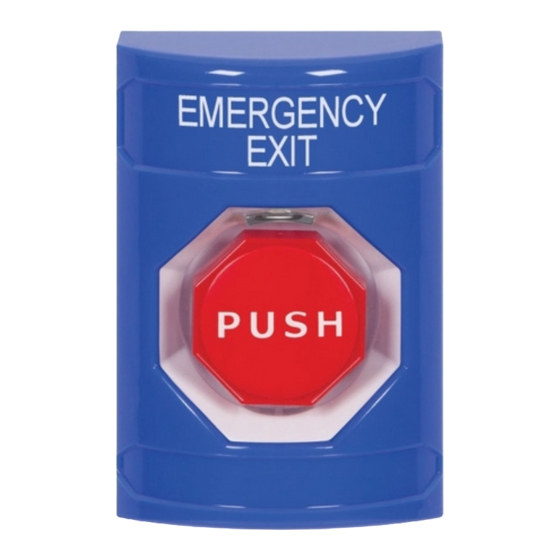

- Page 1 ® Stopper Station Series SS2xx8 Push Button Pneumatic Timer Button for operation Pneumatic Timer Models SS20x8 ALL MODELS COME WITH A SS21x8 Green COLOR MATCHED SURFACE SS22x8 Yellow MOUNT BACKBOX SS23x8 White SS24x8 Blue We protect the things that protect you. ®...
- Page 2 - 2 -...
- Page 4 PRODUCT DIMENSIONS 1.62 in. 1.58 in. (41mm) (40mm) 3.25 in. (82mm) 4.87 in. (124mm) PUSH 1.375 in. (35mm) VIEW SHOWING FRONT HOUSING REMOVAL BUTTON AND SWITCH ASSEMBLY SWITCH HOUSING RED, GREEN, YELLOW, SCREW ALLEN HEAD WHITE AND BLUE #8 - 32 x 3/8 (1) PROVIDED WRENCH (1) PROVIDED - 4 -...
- Page 5 BACKBOX PREPARATION (NOT INCLUDED WITH FLUSH MOUNT COVERS) DRILL POINT LOCATIONS PROVIDED DRILL POINT L DRILL POINT L TIONS PR VIDED TOP AND BOTTOM FOR 1/2 in. OP AND B OP AND B OR 1/2 in. CONDUIT FITTINGS. ONDUIT FIT ONDUIT FIT TINGS DRILL AS NEEDED...
- Page 6 CONTACT DIAGRAM NC (GREEN) (BLACK) NC NO (WHITE) (RED) NO LEAD WIRE COLORS IN PARENTHESIS. CONTACTS One set NO and one set NC SWITCH INFORMATION COUNTERCLOCKWISE CLOCKWISE TIMER RANGE ADJUSTMENT SCREW ADJUSTMENT RANGE - 2 TO 60 SECONDS TIMER FACTORY SET TO MINIMUM TIME SETTING.
- Page 7 INSTALLATION WITH PROVIDED SURFACE BACK BOX ANCHOR ANCHOR ANCHOR (4) PROVIDED (4) PR (4) PR VIDED 71100A-COLOR SURFACE BOX 71100A OR SURF CE B DRILL (4) 3/16 in. DRILL (4) 3/16 in. SCREW #6 x 1-1/4 in. SCREW #6 x 1 1/4 in.
- Page 8 Three year guarantee against breakage of polycarbonate in normal use (one year on electro mechanical and electronic components). Electronic warranty form at www.sti-usa.com/wc14. 2306 Airport Rd • Waterford, MI 48327 Phone: 248-673-9898 • Fax: 248-673-1246 800-888-4STI (4784) • www.sti-usa.com Safety Technology International (Europe) Ltd.
