AIR CONDITIONER
Compact Wall Mounted Type
KEEP THIS MANUAL FOR FUTURE REFERENCE
DIESE ANLEITUNG BITTE SORGFÄLTIG AUFBEWAHREN
CONSERVEZ CE MODE D'EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT
GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO
CONSERVARE QUESTO MANUALE PER OGNI EVENTUALE FUTURO RIFERIMENTO
ΚΡΑΤΗΣΤΕ ΤΟ ΕΓΧΕΙΡΙΔΙΟ ΓΙΑ ΜΕΛΛΟΝΤΙΚΗ ΑΝΑΦΟΡΑ
GUARDE ESTE MANUAL PARA CONSULTA POSTERIOR
СОХРАНИТЕ НАСТОЯЩЕЕ РУКОВОДСТВО ДЛЯ БУДУЩИХ ССЫЛОК
BU KILAVUZU, DAHA SONRA BAfiVURMAK ÜZERE SAKLAYIN
9332428001_OM.indb 1
9332428001_OM.indb 1
OPERATING MANUAL
BEDIENUNGSANLEITUNG
MANUAL DE FUNCIONAMIENTO
MANUALE DI ISTRUZIONI
ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
MANUAL DE INSTRUÇÕES
РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ
KULLANIM KILAVUZU
MODE D'EMPLOI
P/N9332428001
1/7/2011 12:00:18 PM
1/7/2011 12:00:18 PM
Advertisement
Table of Contents
Subscribe to Our Youtube Channel

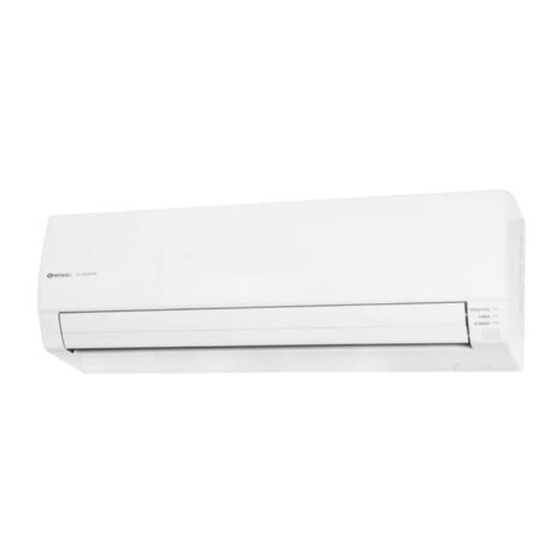

Related Manuals for Hiyasu ASH09UI-LE
Summary of Contents for Hiyasu ASH09UI-LE
- Page 1 OPERATING MANUAL AIR CONDITIONER BEDIENUNGSANLEITUNG Compact Wall Mounted Type MODE D’EMPLOI MANUAL DE FUNCIONAMIENTO MANUALE DI ISTRUZIONI ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ MANUAL DE INSTRUÇÕES РУКОВОДСТВО ПО ЭКСПЛУАТАЦИИ KULLANIM KILAVUZU KEEP THIS MANUAL FOR FUTURE REFERENCE DIESE ANLEITUNG BITTE SORGFÄLTIG AUFBEWAHREN CONSERVEZ CE MODE D’EMPLOI AFIN DE POUVOIR VOUS Y RÉFÉRER ULTÉRIEUREMENT GUARDE ESTE MANUAL PARA PODERLO CONSULTAR EN EL FUTURO CONSERVARE QUESTO MANUALE PER OGNI EVENTUALE FUTURO RIFERIMENTO ΚΡΑΤΗΣΤΕ...
-
Page 2: Table Of Contents
AIR CONDITIONER Compact Wall Mounted Type OPERATING MANUAL CONTENTS P/N9332428001 SAFETY PRECAUTIONS ........En-1 ADJUSTING THE DIRECTION OF FEATURES AND FUNCTIONS ......En-2 AIR CIRCULATION ..........En-11 NAME OF PARTS ..........En-3 SWING OPERATION ..........En-11 PREPARATION .............En-5 10 °C HEAT OPERATION ........En-12 OPERATION ............En-6 MANUAL AUTO OPERATION ......En-12 POWERFUL OPERATION ........En-8 OUTDOOR UNIT LOW NOISE OPERATION ..En-12... -
Page 3: Features And Functions
● Operate only with air fi lters installed. CAUTION! ● Do not block or cover the intake grille and outlet port. ● Ensure that any electronic equipment is at least 3.3ft (1m) away from either the indoor or outdoor units. ●... -
Page 4: Name Of Parts
NAME OF PARTS Fig. 1 Fig. 2 Fig. 3 Fig. 4 Fig. 5 Fig. 6 To facilitate explanation, the accompanying illustra- tion has been drawn to show all possible indicators; in actual operation, however, the display will only show those indicators appropriate to the current operation. En-3 9332428001_OM.indb 3 9332428001_OM.indb 3... - Page 5 Fig. 1 Indoor Unit Fig. 5 Remote Controller 1 Operating Control Panel (Fig. 2) D Signal Transmitter 2 MANUAL AUTO button E 10 °C HEAT button ● When the MANUAL AUTO button is F MODE button pressed in for more than 10 seconds, the forced cooling operation will start.
-
Page 6: Preparation
PREPARATION CAUTION! Turn on the Power ● Take care to prevent infants from acciden- tally swallowing batteries. Turn on the circuit breaker ● When not using the Remote Controller for an extended period, remove the batteries to Load Batteries (AAA/R03/LR03 × 2) avoid possible leakage and damage to the unit. -
Page 7: Operation
OPERATION To Select Mode Operation Press the START/STOP button (Fig.5 N ). The indoor unit's OPERATION Indicator Lamp (green) (Fig. 3 5) will light. The air conditioner will start operating. Press the MODE button (Fig.5 F ) to select the de- sired mode. - Page 8 OPERATION To Stop Operation Press the START/STOP button (Fig. 5 N ). The OPERATION Indicator Lamp (green) (Fig. 3 5) will go out. About AUTO CHANGEOVER Operation AUTO: ● When AUTO CHANGEOVER operation fi rst selected, the fan will operate at very low speed for about a few minutes, during which time the indoor unit detects the room conditions and selects the proper operation mode.
-
Page 9: Powerful Operation
POWERFUL OPERATION Used for quickly cooling or heating the room. Begin Air Conditioner operation before performing this procedure. To use POWERFUL Operation Press the POWERFUL button (Fig. 5 L ). To stop POWERFUL Operation Press the POWERFUL button (Fig. 5 L ) again. Normal operation begins. -
Page 10: Timer Operation
TIMER OPERATION Before using the timer function, be sure that the Remote Controller is set to the correct current time (☞ P. 5). To Use the ON timer ( OFF timer ). To Cancel the Timer Press the START/STOP button (Fig. 5 N ) Press the CANCEL button. -
Page 11: Sleep Timer Operation
SLEEP TIMER OPERATION Unlike other timer functions, the SLEEP timer is used to set the length of time until air conditioner operation is stopped. To Use the SLEEP Timer To Cancel the Timer: While the air conditioner is operating or stopped, press the Press the CANCEL button. -
Page 12: Adjusting The Direction Of Air Circulation
ADJUSTING THE DIRECTION OF AIR CIRCULATION Vertical (up-down) direction of airfl ow is adjusted by pressing the Remote Controller's SET button. Horizontal (right-left) airfl ow direc- tion is adjusted manually, by moving the Airfl ow Direction Louvers. Whenever making horizontal airfl ow adjustments, start air conditioner operation and be sure that the vertical air direction louvers are stopped. -
Page 13: 10 °C Heat Operation
10 °C HEAT OPERATION The room temperature can be maintained at 10 °C by pressing the 10 °C. HEAT button (Fig.5 E ) so as to prevent the room temperature from falling too far. To use 10 °C HEAT OPERATION While 10 °C HEAT OPERATION is in progress, only the following operation Press the 10 °C. -
Page 14: Cleaning And Care
CLEANING AND CARE CAUTION! ● Before cleaning the indoor unit, be sure to turn it off and disconnect the Power Supply Cord. ● Be sure the Intake Grille (Fig. 1 8 ) is installed securely. ● When removing or replacing the air fi lters, be sure not to touch the heat exchanger, as personal injury may result. - Page 15 CLEANING AND CARE Air Cleaning Filter Installation 3. Replace them by 2 new Air cleaning fi lters. 1. Open the Intake Grille and remove the Air 1 Remove the old air cleaning fi lters in reverse order of fi lters. their installation.
-
Page 16: Troubleshooting
TROUBLESHOOTING In the event of a malfunction (burning smell, etc.), immediately stop operation, turn off the electrical WARNING! breaker and consult authorized service personnel. Merely turning off the unit’s power switch will not completely disconnect the unit from the power source. Always be sure to turn off the electrical breaker to ensure that power is completely off. -
Page 17: Operating Tips
TROUBLESHOOTING Symptom Items to check See Page ● Has the circuit breaker been turn off? Doesn’t operate at all: CHECK ONCE MORE ● Has there been a power failure? — ● Has a fuse blown out, or a circuit breaker been tripped? ●... - Page 18 9332428001_OM.indb 17 9332428001_OM.indb 17 1/7/2011 12:02:29 PM 1/7/2011 12:02:29 PM...
