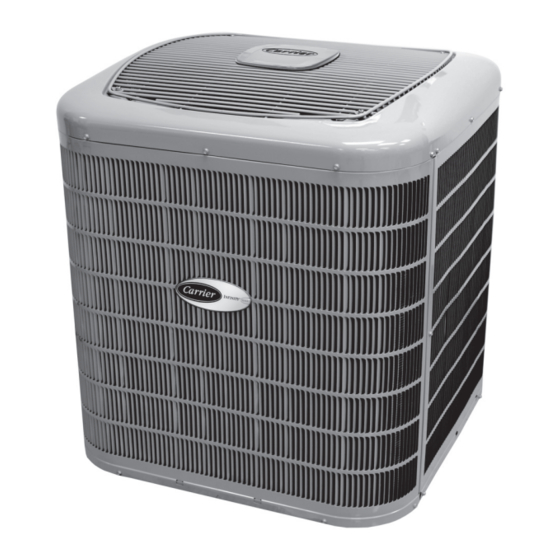

Carrier Infinity 24VNA0 Owner's Manual

24VNA0
®
Infinity Variable Speed Air Conditioner
with Greenspeed
2 to 5 Nominal Tons
A Note About Safety
Any time you see this symbol
unit, be aware of the potential for personal injury.
WARNING signifies hazards that could result in personal injury or
death.
CAUTION is used to identify unsafe practices which could result in
minor personal injury or product and property damage.
NOTE is used to highlight suggestions which will result in enhanced
installation, reliability, or operation.
WARNING
!
PERSONAL INJURY, DEATH AND / OR PROPERTY
DAMAGE HAZARD
Failure to follow this warning could result in personal injury, death or
property damage.
Improper installation, adjustment, alteration, service, maintenance, or
use can cause explosion, fire, electrical shock, or other conditions
which may cause personal injury, death and/or property damage.
Consult a qualified Carrier installer for assistance.
The qualified installer or service agency must use factory-authorized
kits or accessories when modifying this product.
Read and follow all instructions and warnings, including labels shipped
with or attached to unit before operating your new air conditioner.
About Your Air Conditioning System
Our products are designed, tested and built in accordance with US
Department of Energy standardized procedures and other standards;
however, actual operating results and efficiencies may vary based on
manufacturing and supplier tolerances, equipment configuration,
operating conditions and installation practices.
Identifying Your System
Your new Carrier cooling system is what we call a "split system." It has
an outdoor unit and an indoor unit connected to each other with copper
tubing called refrigerant lines. Each of these units has a rating plate with
the model and serial number on it. You will need these numbers when
calling an authorized Carrier dealer about your system.
Using Your New Carrier System
Your Carrier air conditioning system is controlled by a wall-mounted
Infinity Control installed inside your home. See the Infinity Control
Homeowner Guide for more details on system operation.
Infinity Variable Speed Operation
You may notice your system runs for longer periods of time. This
system is designed to meet the cooling needs of the home at a wide range
of conditions. Your indoor temperature will remain more consistent with
fewer drafts, better humidity control, enhanced comfort and enhanced
energy efficiency.
®
Intelligence
Owner's Manual
in manuals, instructions and on the
Cooling Your Home
For cooling operation, make sure the System or Mode control is set to
the appropriate mode, then adjust the Temperature control to your
desired setting. Finally, use the Fan control to select Automatic or On
(runs continuously).
Operation Under Extreme Conditions
Your air conditioner will run as long as necessary to maintain the indoor
temperature selected on your Infinity Control or thermostat. On
extremely hot days, your air conditioner will run for longer periods at a
time than on moderate days. Your system will also run for longer
periods of time under the following conditions:
• Frequent opening of exterior doors
• Operating laundry appliances
• Taking hot showers
• More than the usual number of people present in the home
• More than the normal number of electric lights in use
• Drapes or blinds are open on the sunny side of the home
Sound
Your new variable speed air conditioner is different from most cooling
systems. Because this is a variable speed system, it is designed to operate
at varying speeds depending on the temperature and humidity
conditions. You may notice the sound coming from the outdoor unit
changing from time to time depending on the weather conditions. The
higher speed produces a higher sound. This change of speed allows the
system to operate more efficiently and maintain comfortable conditions
inside the home as the outdoor temperature rises.
variations are normal and do not represent a problem with your system.
ROUTINE MAINTENANCE
WARNING
!
ELECTRICAL SHOCK HAZARD
Failure to follow this warning could result in personal injury or death.
Before installing, modifying, or servicing system, make certain the
main electrical disconnect switch is in the OFF position.
There may be more than 1 disconnect switch. Lock out and tag switch
with a suitable warning label.
NOTE: There may be more than one electrical disconnect switch.
!
CUT HAZARD
Failure to follow this caution may result in personal injury.
Although special care has been taken to minimize sharp edges in the
construction of your unit, be extremely careful and wear appropriate
protective clothing and gloves when handling parts or reaching into the
unit.
CAUTION
These sound
