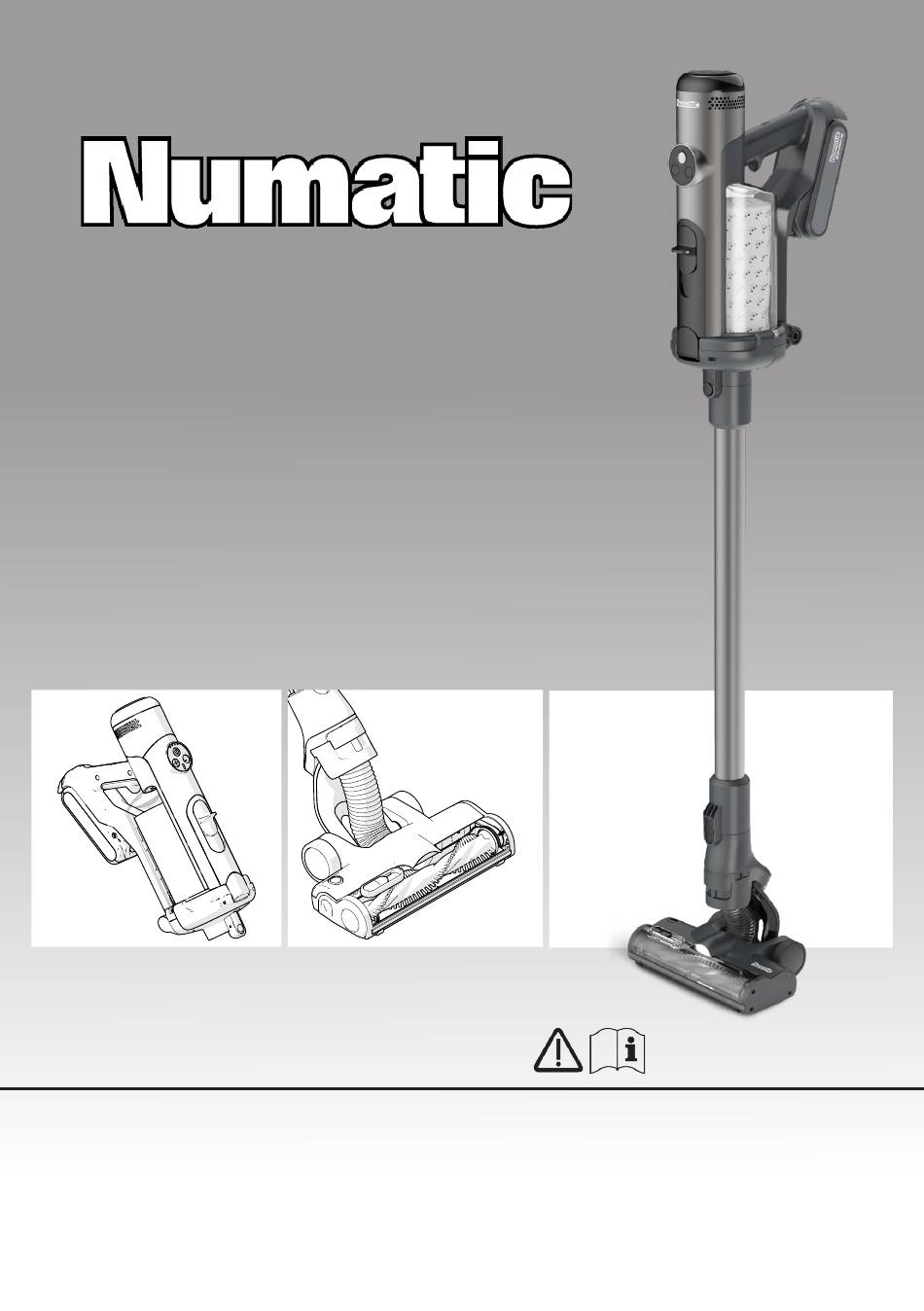

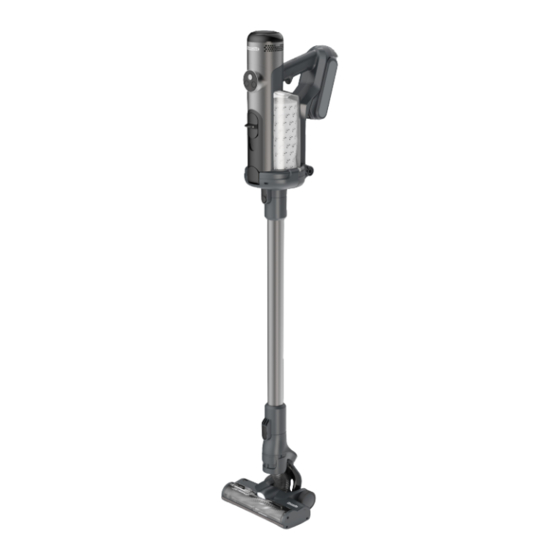

- Page 1 (NQ.100) Original Instructions CAUTION, Read instructions before using the machine KEEP FOR FUTURE REFERENCE numatic.com...
- Page 2 Index Extension handle Page 9 Battery pack Page 4, 5 & 10 Charging Port Page 7 & 10 Filter Pod / Tank Page 8 Hose Page 11 Brush release button Page 12 Brush release panel Page 12 Scent capsule cover Page 6 Control Panel Page 5 &...
- Page 3 Box Contents Main Assembly...
- Page 4 Accessory Fitting Battery Fitting...
-
Page 5: Battery Removal
Battery Removal Control Panel Power on/off Battery life / Charge status Boost mode on/off Brush roll on/off Filter POD full / system blockage... - Page 6 Scent Capsule Fitting Floor Tool Air Bleed Control...
-
Page 7: Charger Wall Mounting
Charger Wall Mounting Use correct fixings for your wall type, which is suitable for the weight of the machine (3.2kg). The use of adhesives is not considered a reliable means of fixing. Routing the charging cable Accessory Storage... - Page 8 Disposable Pod Emptying Disposable Pod Fitting...
- Page 9 Extension Handle Fitting / Removal...
-
Page 10: Machine Charging
Machine Charging Recharge time 150 mins = 100%... - Page 11 Floortool Hose Cleaning / Blockage Removal...
-
Page 12: Machine Data
55 min (Low – Brush ON) 25.2 V Class III 3.2 kg 0.5 dB 16 min (High – Brush OFF) 14 min (High – Brush ON) NQ.100 *Charging Dimensions Rated Power Hand / Arm Vibration Capacity Times L x W x H... -
Page 13: Troubleshooting
Trouble Shooting Problem Possible Reason Solution Large RED light on There may be a blockage in the Check the floorhead hose, wands, control panel is flashing system connections and accessories, remove any blockages, page 11 The filter pod may be full If there are no blockages in the system, eject and replace the filter pod, page 8... - Page 14 (GB) About your machine Rating Label Model Machine yr/wk Serial Number Weight Approval Marks Voltage / Direct Current / Rated Power Company Name & Address Use Lithium-Ion Battery Only WEEE Logo Manufacturer Floor Tool Label Model Weight Voltage / Direct Current / Rated Power Approval Marks Manufacturer Battery Label...
- Page 15 Wet Floor Sign NOTE: A risk assessment should be conducted to determine which PPE should be worn. Failure to rectify the problem or in the event of a breakdown contact your Numatic dealer or the Numatic Technical helpline +44 (0)1460 269268...
- Page 16 Change the fi lter pod frequently. Keep hoses and tubes clear. Replace any worn or damaged parts immediately. Use OEM specifi ed Numatic Scent Capsules only as shown in this manual. Don’t Use to suck up hot ashes or lighted cigarette ends.
-
Page 17: Battery Information
The battery included in this product must only be charged by the Numatic Charger supplied with the product under NO circumstances should an alternative non Numatic charger be used as there is risk severe damage and fi re could result. Only use genuine Numatic parts. Instructions for Use – Charging Batteries The charger is capable of operating at diff erent mains voltages and frequencies without user adjustment. - Page 18 Important Warnings – Batteries Read all the warnings before using the battery. This cleaner uses Numatic Lithium-Ion batteries. Used batteries should be disposed of safely and placed in a sealed plastic bag and then handled according to all locally approved precautions and environmental regulations.
-
Page 19: First Aid Measures
If on checking the battery is found to be operational then a single recharge cycle under observation can • be attempted with the appropriate Numatic charger. If the battery recharges correctly on this single recharge cycle then it can be deemed a good battery. -
Page 20: Schematic Diagram
Schematic diagram DRW-37167 (A00.00) Replacement parts Spares and Accessories 914745 Numatic Battery Pack Assembly (25.2 V) Graphite 915242 Battery Charger - UK Plug 914746 Numatic Floor Tool Graphite 914592 Pack of 10 Pods 914593 Pack of 10 Scent Capsules Notes:... - Page 21 This warranty expressly excludes consumable parts that are considered replaceable from time to time during the normal working life of the machine. Using non Henry or Numatic Pods can be detrimental to both machine performance and life and may invalidate the Warranty.
- Page 22 Notes:...
- Page 24 Tel: 0861 686 284 www.numatic.co.za Numatic International Schweiz AG. Sihlbruggstrasse 3A, 6340 Baar. SCHWEIZ Tel: 0041 (0) 41 76 80 76 - 0 www.numatic.ch Numatic International ULDA. Rua da Boa Viagem, 177 4470.210 Maia. PORTUGAL Tel: +351 220 047 700 www.numatic.pt Numatic International SLU.
