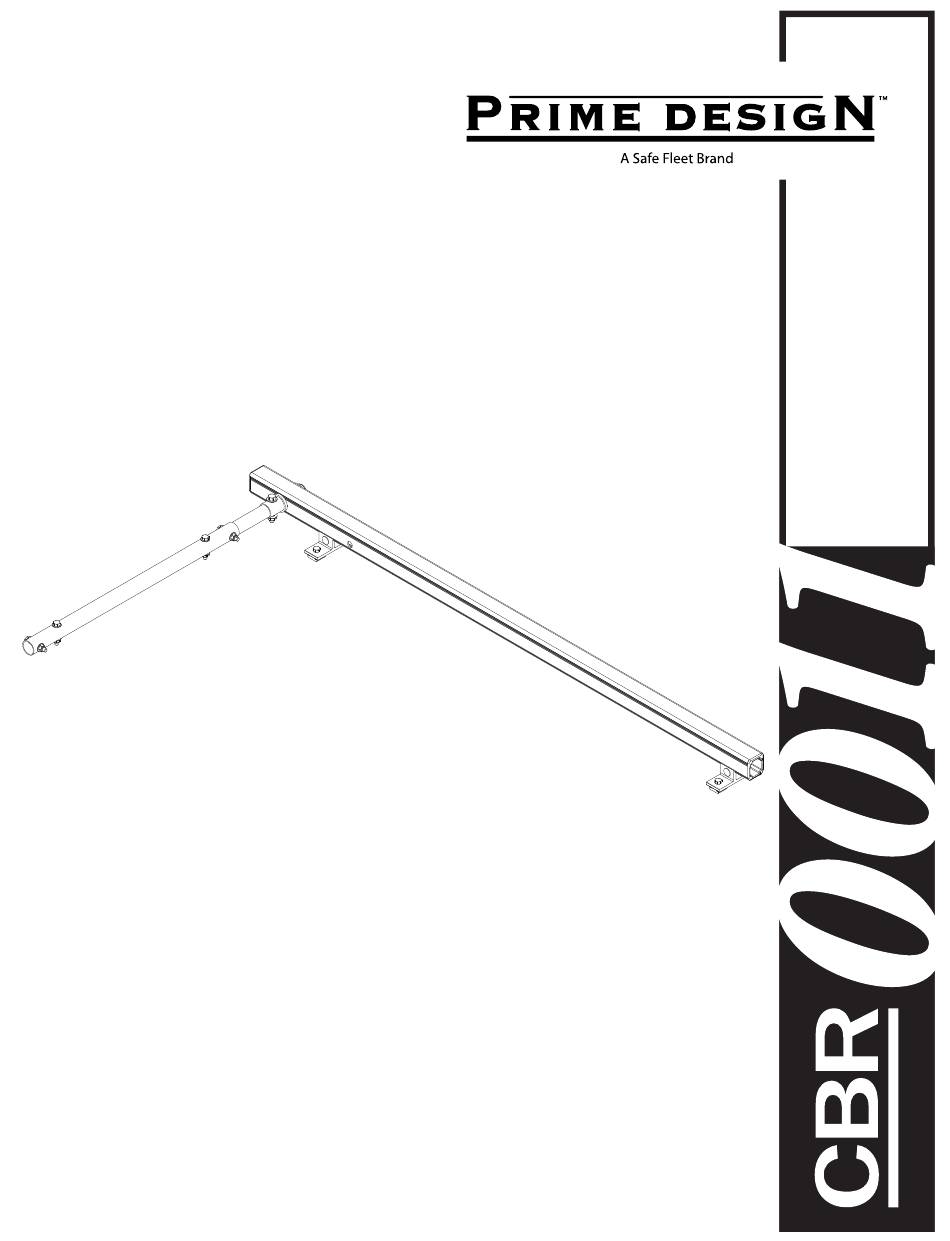

  • Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
  • Page 2: Contents Overview

    CONTENTS OVERVIEW Note: This modular Crossbar kit can be installed as a retrofit conversion or new install. If this is a new install, jump directly to Step 5.1. For the retrofit conversion from a completed two Crossbar rack to a three Crossbar rack: perform Steps 1.1 to 4.2 to prepare rack for the addition of the third Crossbar.
  • Page 3 LEFT ROTATION RETROFIT CONVERSION SEQUENCE L POST Remove and retain for Step 11.1 Remove and retain for Step 11.3 Remove and retain for Step 11.2 Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 4: Front Drive Shaft

    FRONT DRIVE SHAFT Remove and discard the Remove and discard the Connecting Bar hardware. 36” Front Drive Shaft and Drive Arm hardware. CONNECTING BAR Remove and discard the remaining Connecting Bar hardware. Remove and discard the 48” Connecting Bar. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 5 LEFT ROTATION ASSEMBLY SEQUENCE FRONT ROTATION REMOVAL For a retrofit conversion: Remove and replace the black Drive Shaft (B) Bushing. Remove the Rotation Arm to Crossbar hardware from the Front For new installations: Leave the white Drive Arm Bushing (A) Crossbar and discard the steel hardware.
  • Page 6 FRONT CROSSBAR CENTER CROSSBAR Install small .75” (C) and large 1.50” (D) round Caps into the Remove and retain Channel End Front Crossbar holes as shown. Caps and screws for Step 7.4 Loosen Nuts Slide front Mounting Brackets and adjust as shown in Figure A. Loosen bolts Place the new Mounting Brackets under the Front...
  • Page 7 Place the Center Crossbar onto the Mounting Brackets, then position as shown in Figure B. Figure B Torque to 120 in-lbs Same as Front 7.10 White Bushing 7.11 Black Bushing Torque to 55 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 8 CONNECTING BAR FRONT DRIVE SHAFT Torque to 120 in-lbs CONNECTING BAR FASTENERS L POST SEE QUICK START GUIDE FOR ADJUSTMENTS 11.1 Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 9 11.2 11.3 11.4 Torque to 80 in-lbs DRIVE SHAFT SEALING 12.1 12.2 Apply Silicone Sealant to the Connecting Bar ends. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 10: Additional Information

    CYLINDER ADJUSTMENT ADDITIONAL INFORMATION Adjust the Cylinder Flow Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the loaded Ladder Rack. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
  • Page 11 Page Intentionally Left Blank...
  • Page 12 USAM-CBR0011US01 Rev-A 0618...
