GWN7664LR

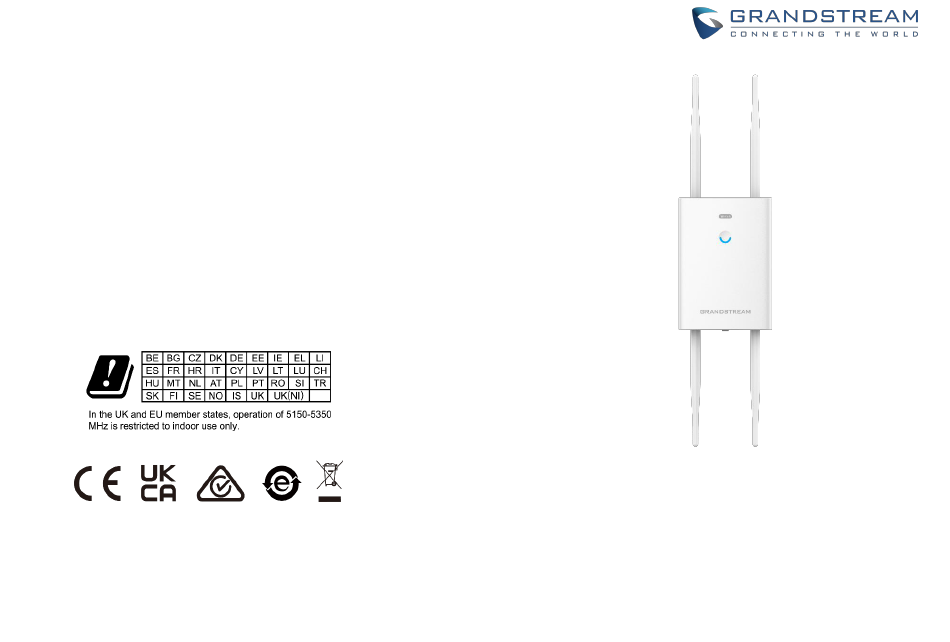

High-Performance Outdoor Long-Range Wi-Fi 6 Access
Point
For Certification, Warranty and RMA information, please visit
Quick Installation Guide
www.grandstream.com
~ 1 ~
~ 2 ~

Advertisement

loading

Related Manuals for Grandstream Networks GWN7664LR

Summary of Contents for Grandstream Networks GWN7664LR

  • Page 1 Grandstream Networks, Inc. 126 Brookline Ave, 3rd Floor Boston, MA 02215. USA Tel : +1 (617) 566 - 9300 Fax: +1 (617) 249 - 1987 www.grandstream.com GWN7664LR High-Performance Outdoor Long-Range Wi-Fi 6 Access Point For Certification, Warranty and RMA information, please visit Quick Installation Guide www.grandstream.com...
  • Page 2 Content English ................... 1 简体中文 ..................9 ~ 3 ~ ~ 4 ~...
  • Page 3 10-90% RH (non-condensing). RESET Press for 7 seconds to reset factory default settings. • Do not power cycle your GWN7664LR during system boot up or firmware upgrade. You may corrupt firmware images and cause the unit to malfunction. PAKEAGE CONTENTS...

  • Page 4: Hardware Installation

    RJ45 Ethernet Cable to power over Ethernet (PoE/PoE+) Switch HARDWARE INSTALLATION GWN7664LR can be mounted on the wall or on a metal bar. Please refer to the following steps for the appropriate installation. Wall Mount Pole Mount 1. Connect the Ethernet cable (RJ45) to the correct ports of your GWN7664LR and insert the cover bracket.
  • Page 5 CONNECT TO GWN7664LR DEFAULT Wi-Fi NETWORK GWN7664LR can be used as standalone access point out of box, or after factory reset with Wi-Fi enabled by default. After powering the GWN7664LR and connecting it to the network, GWN7664LR will broadcast a default SSID based on its MAC address GWN[MAC’s last 6 digits] and a random password.
  • Page 6 GWN Manager, otherwise the configuration interface cannot be written request to info@grandstream.com accessed.  If the GWN7664LR is already paired, make sure to unpair it first, or do a Refer to online documents and FAQ for more detailed information: factory reset. http://www.grandstream.com/our-products ...
  • Page 7 以 太 网 RJ45 端 口 （ 10Mbps/100Mbps NET/POE 件，并导致设备故障。 /1Gbps） ，支持连接至路由器或另一个 包装清单 GWN76xx，支持 PoE/PoE+。 恢复出厂设置按钮。 RESET 按 7 秒恢复出厂默认设置。 上电和连接 GWN7664LR GWN7664LR 可以通过以下步骤使用 PoE 或 PoE+来供电： GWN7664LR 无线接入点 4x 天线 1x 安装支架 2x 捆带 1x 快速安装手册 ~ 9 ~ ~ 10 ~...
  • Page 8 步骤 1：将 RJ45 以太网电缆插入 GWN7664LR 的网络端口。 4. 将自攻螺丝（PA 3.5x33）插入安装支架并用铅笔在墙上标注 步骤 2：将 RJ45 以太网电缆的另一端插入有 PoE/PoE+供电的交 出螺丝孔的安装位置。 换机口。 5. 在标注处钻孔并将壁虎胶塞置入墙内，通过将在壁虎胶塞中 拧入自攻螺丝将 GWN7664LR 固定在墙上。 RJ45 电缆连接到以太网 供电的（PoE/PoE+）交 网络端口 换机或者 PoE/PoE+供电 转换头 硬件安装 GWN7664LR 可安装在墙壁或金属杆上，请参阅下列步骤进行安 装。 壁挂式安装 纵杆安装 1. 将以太网电缆（RJ45）连接到正确的 GWN7664LR 端口并合 1. 将以太网电缆（RJ45）连接到正确的 GWN7664LR 端口并合...
  • Page 9 4. 逆时针旋转闭锁机制打开金属捆带。您可徒手打开或者借助 1. 在设备背面的贴纸上，或者设备的外包装盒上找到设备的 一字螺丝刀。 MAC 地址。 5. 拉直捆带的一端并将其穿过安装支架的背部。 2. 在连接到 GWN7664LR 广播的 SSID， 或 GWN7664LR 所在的局 6. 用捆带围住安装杆并借助一字螺丝刀顺时针拧紧闭锁机制。 域网的电脑上， 用浏览器输入网址： https://gwn_<mac>.local。 例如：如果 GWN7664LR 的 MAC 地址为 00:0B:82:8B:4E:28， 杆 那么浏览器上输入 https://gwn_000b828b4e28.local。 连接到 GWN7664LR 默认的无线网络 方法 2：用 GWN Discovery Tool 发现 GWN7664LR。...
  • Page 10 注意：  确认 GWN7664LR 并没有被配对到另一个 GWN76xx 或者 GWN7000 系列路由器或者 GWN.Cloud 或者 GWN Manager， 否则配置界面将会显示已配对，导致无法登录配置页面。  如果 GWN7664LR 已经被配对，请先解除配对，或者恢复该 设备的出厂设置。  请遵守当地关于频带、发射功率及其他相关法规。  请在 进行 GWN7664LR 的云端管理 。 https://www.gwn.cloud GNU GPL 许可条款已包含在设备固件中，可以通过设备的 Web 用户界面 my_device_ip/gpl_license 进行访问。也可以通过以下 链接访问： http://www.grandstream.com/legal/open-source-software。 如 果 需 要 包 含 GPL 源 代 码 信 息 的 CD ， 请 发 邮 件 到...

  • Page 11: Can Ices-3 (B)/Nmb-3(B)

    For certification information, please refer to User Manuals: http://www.grandstream.com Common part： This equipment complies with radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with minimum distance 25cm between the radiator&...
