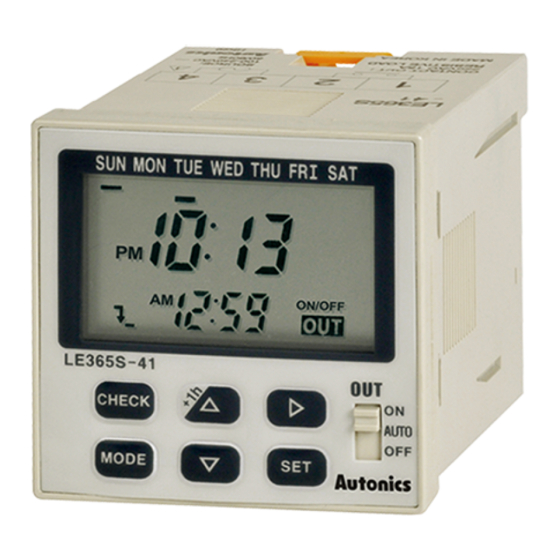

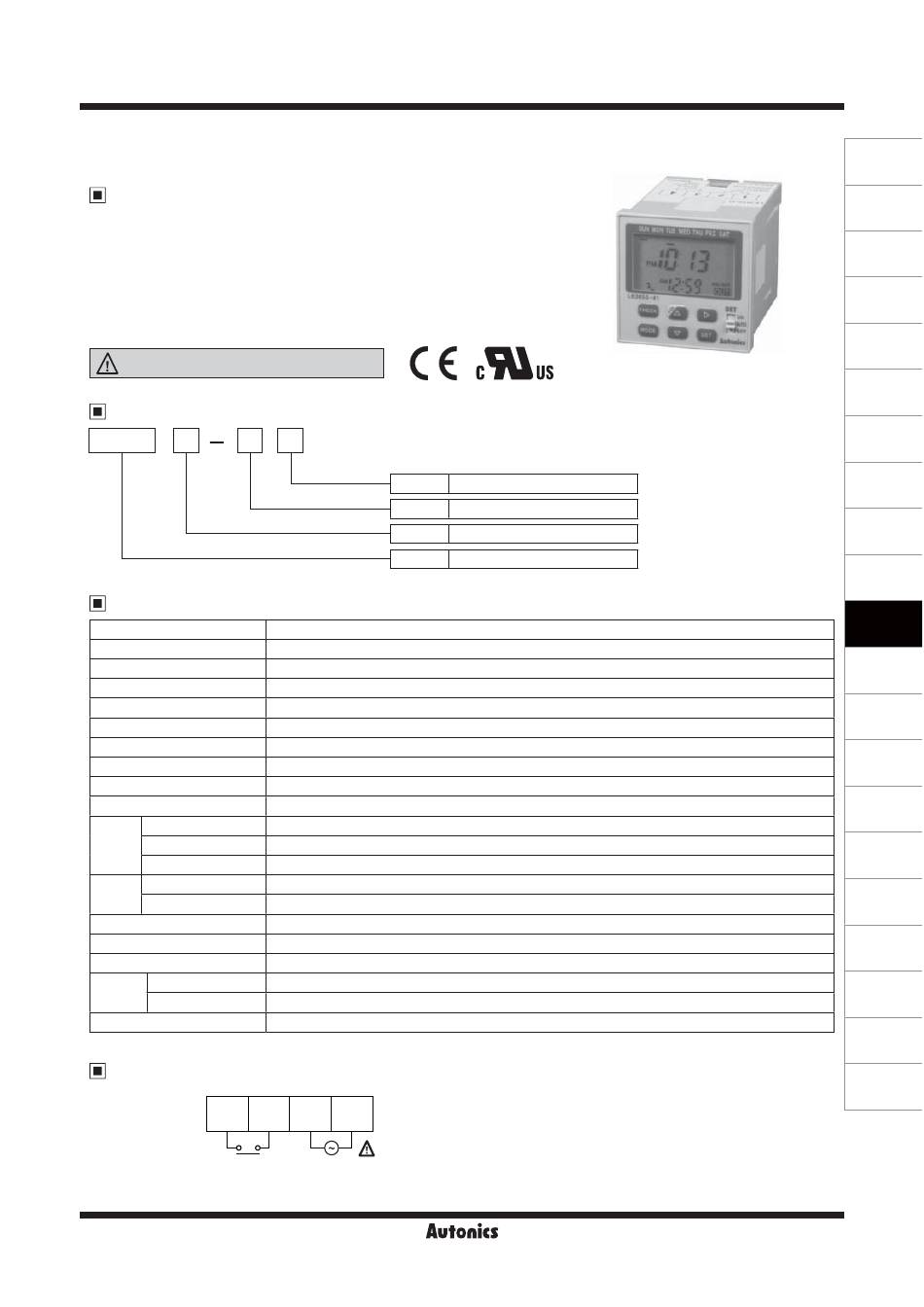

LE365S-41
W48×H48mm, Weekly/Yearly timer
Features
● Easy to check and change the program setting.
● Customizable weekly or yearly unit time setting and
control by user
● Includes daylight saving time function
● 1 independent control output.(Relay)
● Flush and surface, DIN rail mounting are in one unit.
Please read "Caution for your safety" in operation
manual before using.
Ordering information
LE365 S 4
Size
Item
Specifi cations
Model
Power supply
Allowable voltage range
Power consumption
Timing program
Operation mode
Temperature error
Mounting
Time deviation
Memory protection
Contact type
Control
Contact capacity
Output
Output number
Mechanical
Relay
life cycle
Electrical
Insulation resistance
Dielectric strength
Noise strength
Ambient temperature -10 to 55℃, storage: -25 to 65℃
Environ
-ment
Ambient humidity
Unit weight
※Environment resistance is rated at no freezing or condensation.
Connections
1
CONTACT OUT:
250VAC 15A
RESISTIVE LOAD
1
Output
1
Power supply
4
S
LE365
LE365S-41
100-240VAC 50/60㎐
90 to 110% of rated voltage
2.4VA
48 steps for weekly, 24 steps for yearly
ON/OFF mode, cycle mode, pulse mode
Panel fl ush, surface, DIN rail
℃
±15sec/month(25 ) (±4sec/week)
±0.01% ±0.05sec.
Over 5 years(at 25℃)
SPST(Single Pole Single Throw)
250VAC 15A resistive load
Independent 1 output(1a)
Min. 5,000,000 operations(Switching capacity 30 times/minute)
50,000 operations<Switching capacity 20 times/1 minute, at 250VAC 15A(resistive load)>
Min. 100MΩ(at 500VDC megger)
2000VAC 50/60Hz for 1minute
±2kV the square wave noise(pulse width : 1㎲) by the noise simulator
35 to 85%RH, storage: 35 to 85%RH
Approx. 110g
