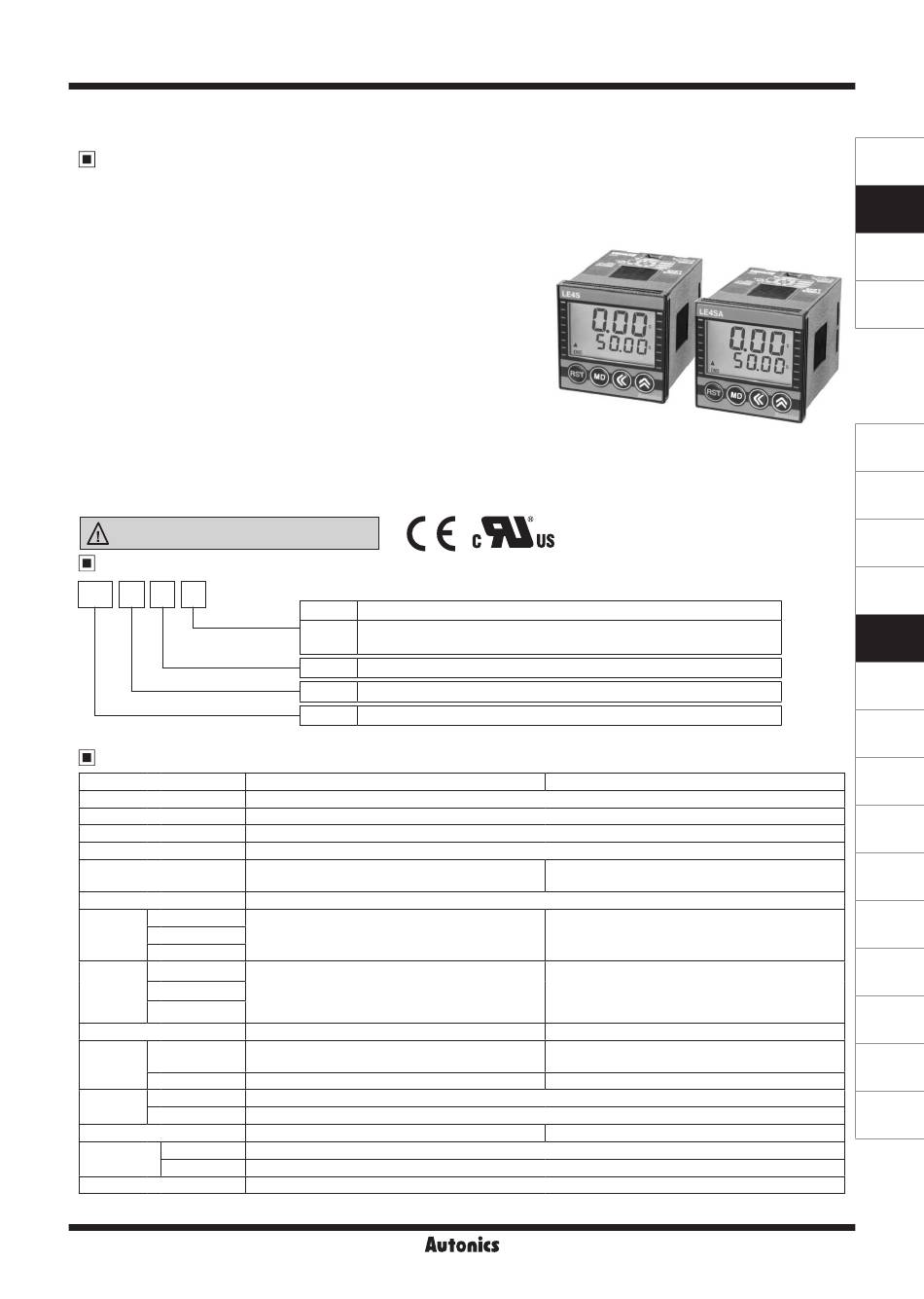

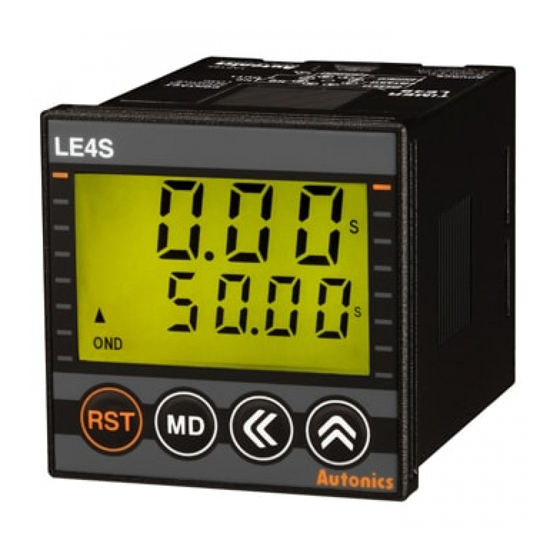

Autonics LE4S Series Manual

DIN W48×H48mm Digital Backlight LCD Timer
Features
● Mounting space saving with compact design
: downsized by approx. 22% in depth compared to existing models
(length of panel on the back side is 56mm)
● Available to set each value and time range separately when
choosing Flicker (FK, FK I) or ON-OFF Delay
(ON OFF D, ON OFF D I) output mode
● Adds Flicker 1 mode (LE4SA)
● Settable One-shot output time (0.01 to 99.99 sec)
(existing model: fixed 0.5 sec)
● Configurable time range (added 9.999 sec)
: Settable by 0.001 sec unit
● Selectable Min. input time: 1ms or 20ms (LE4S)
● Improved return time: 100ms
● Backlight ON/OFF function
● Wide time range (0.01 sec to 9999 hour)
● Lock setting function for saving setting data
● Soft touch setting
● High visibility display with backlight
Please read "Safety Considerations"
in the instruction manual before using.
Ordering Information
LE 4 S
Output
Size
Digit
Item
Specifications
Model LE4S
Function Multi time and Multi operation
Display method LCD display (backlight)
Power supply 24-240VACᜠ 50/60Hz, 24-240VDCᜡ universal
Allowable voltage range 90 to 110% of rated voltage
Max. 4.5VA (24-240VACᜠ 50/60Hz),
Power consumption
Max. 2W (24-240VDCᜡ)
Return time Max. 100ms
START
Min. input
INHIBIT 1ms, 20ms (selectable)
signal width
RESET
• No-voltage input
START
Impedance at short-circuit: max. 1kΩ,
INHIBIT
Input
Residual voltage: max. 0.5VDCᜡ,
RESET
Impedance at open-circuit: min. 100kΩ
Timing operation Signal ON Start
Contact type Time limit SPDT (1c)
Control
output
Contact capacity 250VACᜠ 5A, 30VDCᜡ 5A resistive load
Mechanical Min. 10,000,000 operations
Relay
life cycle
Electrical Min. 100,000 operations (at rated contact capacity)
Output mode 10 operation modes
Ambient temp. -10 to 55℃, storage: -25 to 65℃
Environment
Ambient humi. 35 to 85%RH
Accessory Bracket
※ Environment resistance is rated at no freezing or condensation.
No mark Time-limit SPDT (1c)
Time-limit DPDT (2c),
A
Time-limit SPDT (1c)+Instantaneous SPDT (1c) (selectable)
S DIN W48×H48mm
4 9999 (4-digit)
LE LCD Timer (touch type)
※ 8-pin socket (PG-08, PS-08(N)) is sold separately.
LE4S Series
LE4SA
Max. 4VA (24-240VACᜠ 50/60Hz),
Max. 1.6W (24-240VDCᜡ)
-
-
Power ON Start
Selectable Time limit DPDT (2c), Time limit SPDT (1c)+
Instantaneous SPDT (1c) (depends on operation mode)
250VACᜠ 3A, 30VDCᜡ 3A resistive load
8 operation modes
