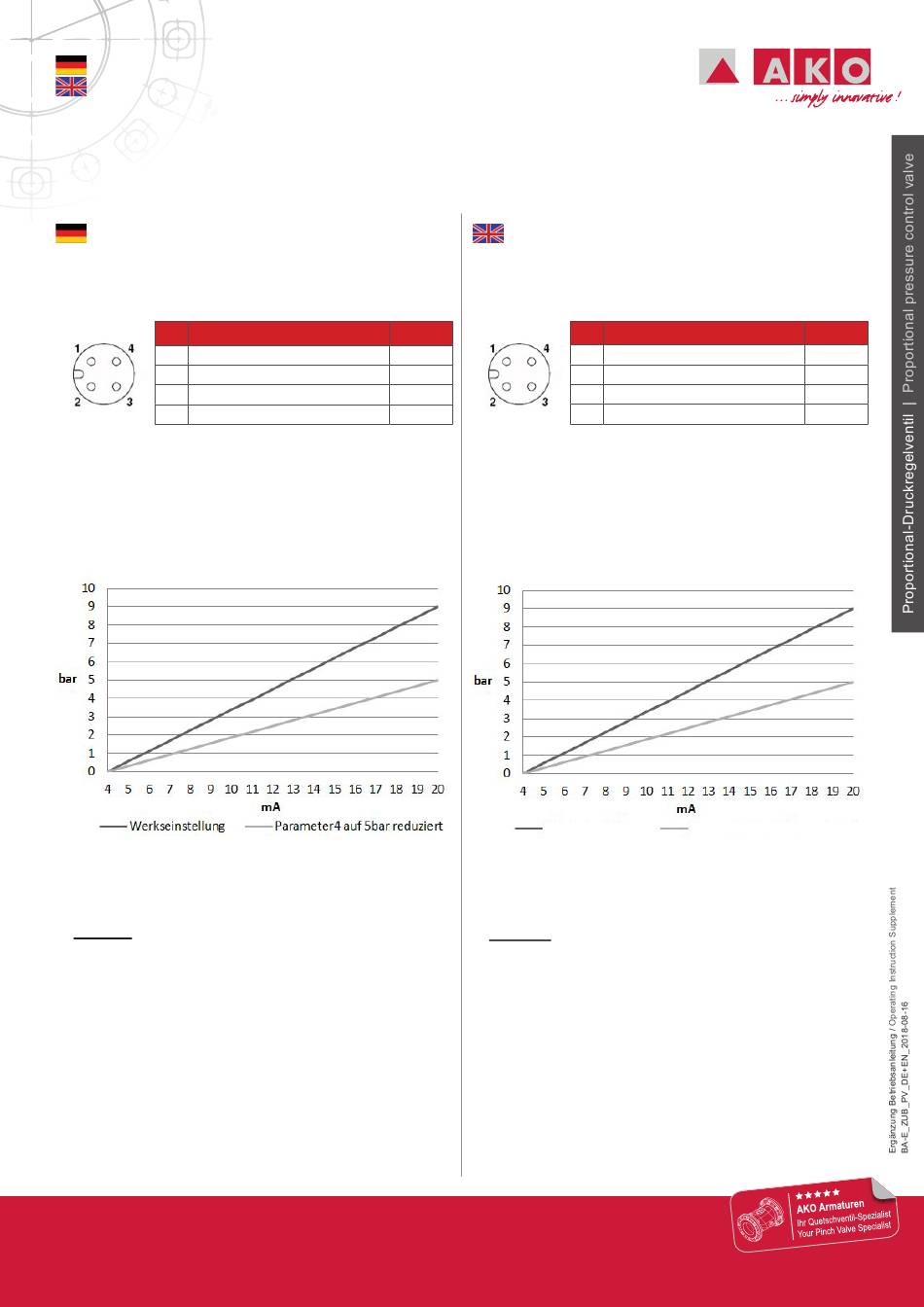

Proportional-Druckregelventil, Typ PV.P171
Proportional pressure control valve, Type PV.P171

► Electrical installation

(Device connector pin assignment for M12 device connector
in the body)
Pin
1
+ 24V DC supply voltage
2
Actual value output
3
Common ground connection
4
Set point input (pos.)
► Setting / assignment of input signal
to output pressure
Factory Setting complete range / span e.g.:
4 - 20 mA input signal
0 - 10 V input signal
Factory settings
It is possible to decrease the maximum output pressure at a
constant input signal range (e.g. max. 5 bar).

► Example:

Operating pressure / feed pressure:
Required control pressure (pinch valve):
Compressed air supply:
(sufficient since it is at least 1 bar higher than the max. required output pressure /
control pressure (pinch valve))
This results in:
4 - 20 mA input signal
Subject to technical changes
+49 6147 9159-0
+49 6147 9159-59
ako@ako-armaturen.de / ako@pinch-valve.com
www.ako-armaturen.de / www.pinch-valve.com
Description
=
0 - 9 bar output pressure
=
0 - 9 bar output pressure
Parameter4 reduced to 5 bar
3,0 bar
ca. 5 bar
6,5 bar
=
0 - 5 bar output pressure
Color
brown
white
blue
black
1
