MRKxx - EXP3 installation
rev.01
A
SSEMBLING INSTRUCTION

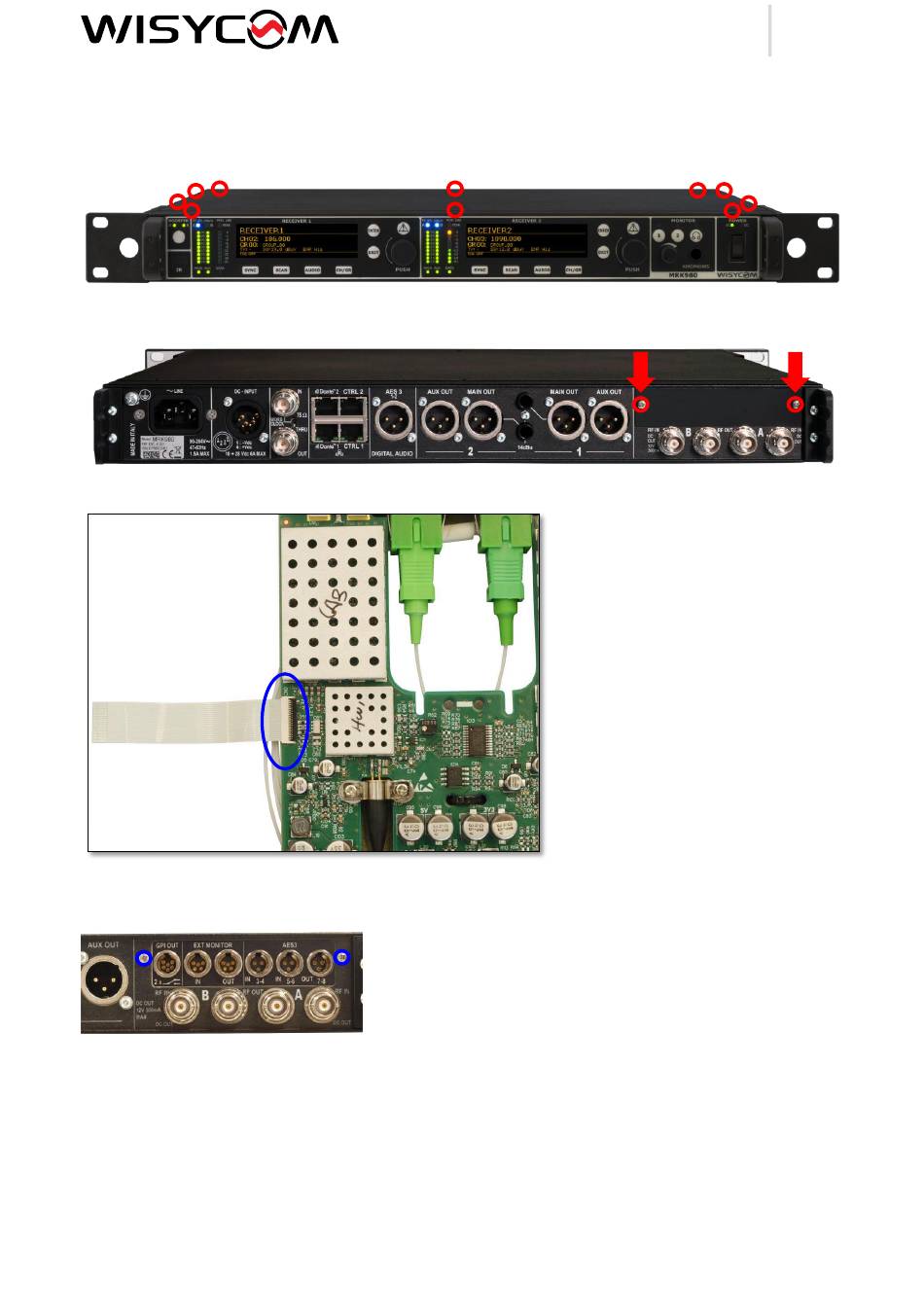

Remove the 10 screws on the top and remove the cover
Remove the 2 screws to remove black metal panel (holding the nuts in the internal part)
Insert the FFC jumper cable (code: CAFFC09) into the EXP3 connector (as in the picture):
For MRK980:
Insert the expantion board EXP3 and fix it to the rear panel with 2 screws (code: VITCCX2506)
