Summary of Contents for Minolta PageWorks Pro 18

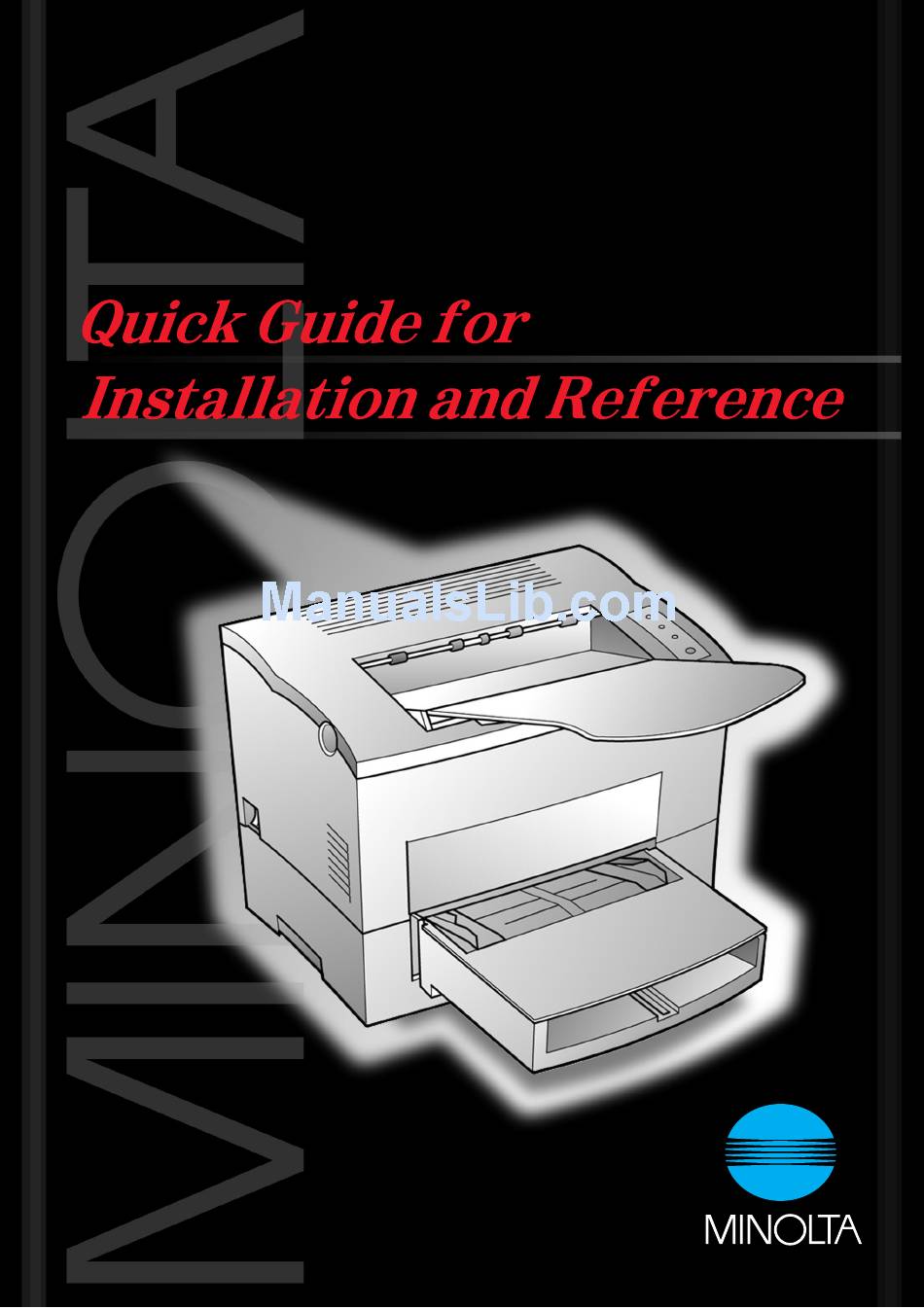

- Page 1 PageWorks 18...
-
Page 2: Table Of Contents
Tray 1... 5 Loading Paper... 7 Connecting the Power Cord ... 8 Turning the Power On/Off ... 8 Printing a Configuration Page... 9 Connecting the Printer to the Computer (Local Connection) ... 10 Installing the Printer Driver ... 11 Troubleshooting ... 15... -
Page 3: Step 1 Unpacking The Printer
Before operating your printer, read the Set-Up Instructions carefully from cover to cover. Use this guide for reference. Take the items and accessories shown above out of the carton. Remove the plastic bag and peel off the shipping tape from the printer. 1. Face-down tray 2. Printer 3. - Page 4 Pull out the plastic-lead strip from the paper feed inlet. Remove the tape strip from the back of the printer. Step 1...
-
Page 5: Reference 1
Printer Parts Top cover release button Power switch Reference 1 Control panel Face-down tray Paper size guide Manual feed tray Tray cover Parallel interface connector Power cord socket Paper size guide Tray 1 (multipurpose tray) Imaging cartridge... -
Page 6: Reference 2
Control Panel The control panel has three indicator lights and one button. Printer is ready. The printer is waiting for paper to be loaded manually. Paper misfeed. Clear the paper misfeed to continue printing. READY indicator (green) PAPER indicator (amber) -
Page 7: Step 2 Attaching The Face-Down Tray
With both hands, gently bend the face-down tray inwards and insert one of its tabs into its holder on the upper portion of the printer. Continue to bend the face-down tray so that it curves enough for the second tab to fit into its holder and release the tray into position. -
Page 8: Step
Using the left and right slots in the printer as guides, gently push Tray 1 until it cannot be inserted any further (as shown in the illustration). Attach the tray cover onto Tray 1. Step 2... -
Page 9: Step 3 Loading Paper
Loading Paper Remove the tray cover from Tray 1. Open all three paper size guides. Replace the tray cover onto Tray 1. Place the paper stack onto the tray, print-side up. Secure the stack by adjusting the paper size guides. Step 3... -
Page 10: Step 4 Connecting The Power Cord
Note DO NOT turn the power OFF while: • printing • the printer is receiving the data from the computer (the indicator on the con- trol panel is blinking) Connect one end of the power cord that comes with the printer to the power cord socket. -
Page 11: Printing A Configuration Page
Printing a Configuration Page Turn the printer on. Make sure that paper is loaded into the printer’s feeding tray. Make sure that both the PAPER and ERROR indicators are off, and the READY indicator is on. Briefly press the panel button to start printing the Configuration Page. -
Page 12: Step 7 Connecting The Printer To The Computer (Local Connection)
Connecting the Printer to the Computer (Local Connection) Make sure that the printer and the computer you are connecting it to are both turned off. Connect one end of the interface cable to the parallel port of the computer. Connect the other end of the cable to the parallel connector on the back of the printer. -
Page 13: Installing The Printer Driver
If the screen does not appear, double-click In- stall.exe from the CD-ROM. • The printer driver must be installed using the CD-ROM’s installer. Do not use the Add Printer wizard from the Printers folder. Installation through the Add Printer wizard will prevent the printer from performing properly. - Page 14 If the screen does not appear, double-click Install.exe from the CD-ROM. • The printer driver must be installed using the CD-ROM’s installer. Do not use the Add Printer wizard from the Printers folder. • Do not check Jogging Tray when it appears in the installation dialog for registering additional options.
- Page 15 Printers box in the Printers dialog. After installing the UniTool Driver, re- install the driver for the PageWorks/Pro 18. 10. Click the Set As Default Printer button so that this printer is selected whenever you begin using your Windows software.
-
Page 16: Installing Dos Printing Utilities
MS-DOS Installing DOS Printing Utilities 1. Connect your printer to the parallel port of your computer. 2. Turn on your computer and start up DOS. 3. Turn on your printer and make sure it is online. 4. Insert the Printer Driver CD-ROM into your computer’s CD-ROM drive. -
Page 17: Troubleshooting
Troubleshooting Clearing a Paper Misfeed Remove the misfed sheet of paper by pulling it in the direction indi- cated by the arrow. Face-down tray Tray 1 Reference 3 Manual feed tray... -
Page 18: Clearing A Paper Misfeed
Clearing a Paper Misfeed Inside the printer Caution • The fusing unit inside the printer can become very hot during operation. Do not touch the area to avoid injury. • Do not touch the image transfer roller. Reference 3... -
Page 19: Solving Print Quality Problems
• Clean the inside of the printer. (Refer to the User’s Manual.) • Change the toner save setting of the printer driver and try to print again. For more details, refer to the “Troubleshooting” and “Maintenance” sections of the User’s Manual. - Page 20 MEMO...
- Page 21 MEMO...
- Page 22 Copyright 1999 MINOLTA CO., LTD Printed in Japan The information contained in this manual is subject to change without notice to incorporate improvements made on the product or products the manual covers. Minolta CO., LTD. Image Information Products Marketing Headquarters, 3-13, 2-chome, Azuchi-machi, Chuo-ku, Osaka. 541-8556, Japan 4110-7741-01 1999.
