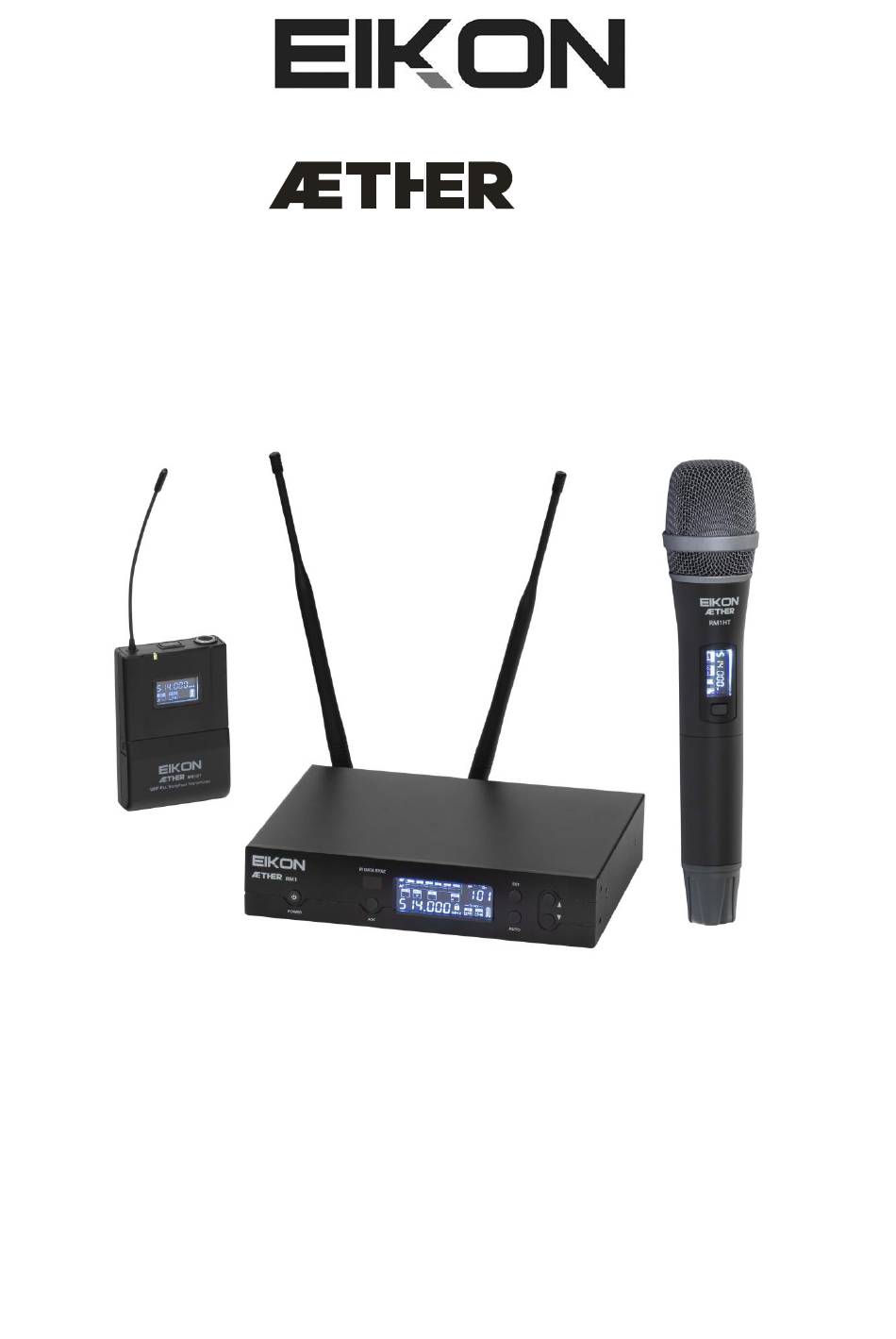

INTRODUCTION Thank you for choosing this EIKON product and for your trust in our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional systems. DESCRIPTION The RM1 Wireless Microphone is a UHF, PLL controlled, true diversity system providing a reliable and high- quality signal transmission and equipped with automatic channel scan and IR sync.
Page 7
b. RF: this meter shows the radio frequency signal level. If the transmitter is ON, the meter must be close to the top. If the transmitter is OFF the meter is completely down. In this condition, if some signal is shown on the meter, it means that there is a RF disturbance: to avoid it you must select a different RF channel.
RM1 MENU SET UP RECEIVER Menu setting: press the "SET" button for two seconds, the icon disappears, the receiver enters EDIT mode. Now it is possible to move, by pressing the SET button in sequence within the 7 functions. GROUP: press the "SET" button once, the GR icon will start flashing, press the button to select the desired group.
VOLUME AUDIO RECEIVER: press the "SET" button for two seconds, the icon disappears press the button to select the output level desired. AUTO SCAN: press the "SET" button for two seconds, the icon disappears press the button AUTO, icon AUTO flashing, the receiver scrolls all the channels in select group to find a free one and selects the best. Please note that when you have more than one RM1 systems to set up, you must leave ON any transmitter you have already set up and synced with its receiver, except the transmitter that you want to set up, which must be off.
Page 10
13. MICROPHONE GRILLE The grille protects the microphone capsule and includes a pop filter. The microphone capsule is dynamic with a cardioid polar pattern. 14. DISPLAY LCD The LCD display shows various information: a) Frequency b) RF level of the transmitter c) Audio Gain of the transmitter d) Charge level of the battery.
RM1BT BODYPACK TRANSMITTER See FIG. 2 at page 25 20. ANTENNA This is the transmitting antenna: do not force it, disconnect it or try to replace it with a different one. 21. LED POWER when the power button is pressed, the LED lights up indicating that the transmitter is in operation. 22.
Always remember to remove the batteries if you do not use the microphone for a long period of time: this will avoid the corrosion of the battery contacts. ACCESSORIES The following table shows all the accessories available for the RM1 system (for more information visit the web site www.eikon-audio.com): Code Description AETHERSPLIT...
TROUBLESHOOTING Issue Indicator Status Solution No sound or faint sound Receiver LCD off • Make sure AC adapteris securely plugged into electrical outlet and into DC input connector on rear panel of receiver. • Make sure AC electrical outlet works and is supplying proper voltage.
