INDEX DISPOSAL OF OLD ELECTRICAL & ELECTRONIC EQUIPMENT ............4 SAFETY INSTRUCTIONS ........................4 IN CASE OF FAULT ......................... 4 PACKAGING, SHIPPING AND COMPLAINT ..................4 WARRANTY AND PRODUCTS RETURN .................... 4 MAINTENANCE AND DISCLAIMER ....................5 POWER SUPPLY ..........................5 WARNING POSSIBLE HEARING DAMAGE! ..................
Proel products have operating warranty and comply their specifications, as stated by manufacturer. • EIKON warrants all materials, workmanship and proper operation of this product for a period of two years from the original date of purchase. If any defects are found in the materials or workmanship or if...
Clean only with dry cloth. • EIKON products have been expressly designed for audio application, with signals in audio range (20Hz to 20kHz). Proel has no liability for damages caused in case of lack of maintenance, modifications, improper use or improper installation non-applying safety instructions.
Frequency Range of RM3000EKA: 673 - 697.80 MHz. • RM3000EK is capable to exceed the RF power of short range devices in some countries: for all European countries the RF selector must be set always on minimum RF power. •...

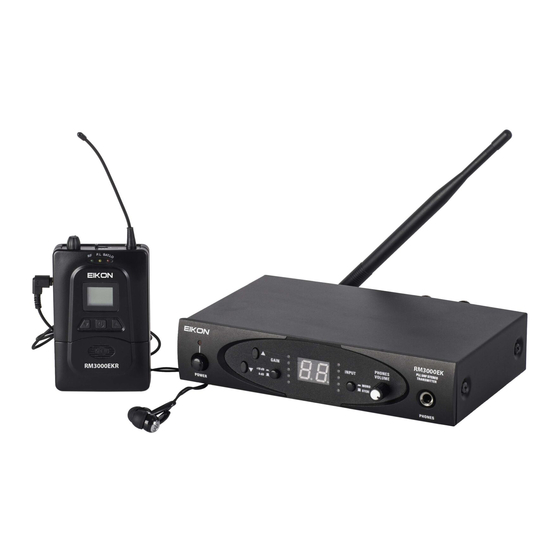

INTRODUCTION Thank you for choosing this EIKON product and for your trust in our brand, synonymous of professionalism, accuracy, high quality and reliability. All our products are CE approved and designed for continuous use in professional systems. DESCRIPTION The RM3000EK is a UHF PLL controlled Wireless In-ear Monitoring System providing a reliable and high quality signal transmission.
7. R OUTPUT (XLR output - BALANCED) Same as above for the R INPUT. 8. POWER ON/OFF switch: the LED shows the ON or OFF status of the transmitter. 9. PHONES Auxiliary headphones output. 10. PHONES VOLUME Volume potentiometer for the auxiliary headphones output. 11.
Page 9
23. RF This green LED shows when the radio frequency signal is received: - The LED is ON if the RM3000 transmitter is switched on and set to the same channel as the receiver. - The LED is OFF if the RM3000 transmitter is switched off or set to a different channel. If the RM3000 transmitter is switched OFF and this LED is ON, there is probably another RF equipment transmitting on the same RF channel: select a different channel frequency.
,then check the RF signal on antenna symbol: • If there is no RF signal and the RM3000EK transmitter is switched OFF, turn it on then check again: RF signal must be present and the RF LED is on. If the RF signal is still not present, check the transmitter and receiver channel correspondence: •...
SETTING UP A SECOND RECEIVER After you have set the first receiver and transmitter, leaving ON the transmitter repeat the operation for the second receiver: SETTING UP A SECOND SYSTEM If you need to use a second SYSTEM (receiver and transmitter) in the same application, you have to set a transmission channel different from that used in the first system.
TECHNICAL SPECIFICATION RM3000EK – UHF PLL 8 Channel Transmitter RF Channels 8 frequency preset RF Frequency Band UHF: 863-865 MHz RF Peak Deviation ±68 KHz RF Oscillation Mode PLL Synthesized RF Modulation Type Wideband FM Stereo RF Output Power at 50 Ω...
Page 13
RM3000EKA – UHF PLL 16 Channel Transmitter RF Channels 16 frequency preset RF Frequency Band UHF: 673-697.800 MHz RF Peak Deviation ±68 KHz RF Oscillation Mode PLL Synthesized RF Modulation Type Wideband FM Stereo RF Output Power at 50 Ω L (low) <...
Page 14
EB10 – Stereo In-Ear Earphone Input Sensitivity 112 dB @ 1KHz, 1mW Impedance 16 ohms Frequency Response 10 Hz – 20 KHz (±3 dB) Connector Gold Plated 3 pole 3.5 mm Mini-jack...
Page 15
INDICE TRATTAMENTO DEL DISPOSITIVO ELETTRICO OD ELETTRONICO A FINE VITA ......... 16 AVVERTENZE PER LA SICUREZZA ....................16 IN CASO DI GUASTO ........................16 IMBALLAGGIO, TRASPORTO E RECLAMI ..................16 GARANZIE E RESI ......................... 16 MANUTENZIONE E LIMITAZIONI D’USO ..................17 ALIMENTAZIONE .........................
8 giorni dal ricevimento della merce. GARANZIE E RESI • I Prodotti EIKON sono provvisti della garanzia di funzionamento e di conformità alle proprie specifiche, come dichiarate dal costruttore. • La garanzia di funzionamento è di 24 mesi dopo la data di acquisto. I difetti rilevati entro il periodo di...
Pulire il prodotto unicamente con un panno asciutto. • I Prodotti EIKON sono destinati esclusivamente ad un utilizzo specifico di tipo sonoro: segnali di ingresso di tipo audio (20Hz-20kHz). Proel declina ogni responsabilità per danni a terzi causati da mancata manutenzione, manomissioni, uso improprio o installazione non eseguita secondo le norme di sicurezza.
RM3000EKA opera nella banda di frequenze: 673 - 697.800 MHz. • RM3000EK è in grado di superare la potenza RF dei dispositivi a corto raggio in alcune nazioni: per tutti i paesi europei il selettore RF deve essere sempre sulla minima potenza.
CE per utilizzazione continua in impianti di diffusione sonora. DESCRIZIONE Il sistema Wireless In-ear Monitor RM3000EK/A opera in banda UHF con frequenza controllata da PLL ed è caratterizzato da una trasmissione affidabile e di ottima qualità. Il sistema Wireless In-ear Monitor RM3000EK/A si compone di 2 unità: il trasmettitore RM3000EK e il ricevitore portatile body-pack RM3000EKR/A.
7. R OUTPUT (XLR uscita - BILANCIATA) Come sopra per il canale destro. 8. POWER Interruttore acceso/spento: il LED mostra lo stato acceso/spento del trasmettitore. 9. PHONES Uscita per cuffie ausiliarie. 10. PHONES VOLUME Potenziometro di volume per le cuffie ausiliarie. 11.
Page 21
21. POWER INDICATOR Questo indicatore LED arancio si illumina quando il ricevitore è acceso. 22. BATTERY LOW Questo indicatore a LED rosso si illumina quando le batterie sono esaurite: sostituire le batterie il più presto possibile. 23. RF Questo indicatore a LED verde si illumina quando il è presente il segnale radio: - Il LED RF è...
29. LINE OUT Se si necessita di collegare un’altro apparato audio si può usare questa uscita. Questa è un’uscita mini-jack terminata come segue: Schermo – MASSA, Anello – canale DESTRO, Tip – canale SINISTRO. Non collegare una seconda cuffia a questa uscita. 30.
premere a lungo uno dei tasti CHANNEL SELECT (15), finché il display (16) lampeggia, quindi premere ancora uno dei tasti CHANNEL SELECT (15) per scegliere lo stesso canale impostato nel ricevitore al fine di farli corrispondere: • Se non si preme nessun tasto entro 5 secondi, il ricevitore o il trasmettitore tornano allo stato normale.
SPECIFICHE TECNICHE RM3000EK – UHF PLL Trasmettitore 8 Canali Canali RF 8 frequenze preimpostate Gamma di frequenze RF UHF: 863-865 MHz Deviazione di picco RF ±68 KHz Tipo di trasmissione RF Sintonizzazione PLL Tipo di modulazione RF FM Stereo banda larga Potenza RF a 50 Ω...
Page 25
RM3000EKa – UHF PLL Trasmettitore 16 Canali Canali RF 16 frequenze preimpostate Gamma di frequenze RF UHF: 673-697.800 MHz Deviazione di picco RF ±68 KHz Tipo di trasmissione RF Sintonizzazione PLL Tipo di modulazione RF FM Stereo banda larga Potenza RF a 50 Ω L (low) <...
Page 26
EB10 – Cuffie In-Ear Stereo Sensibilità 112 dB @ 1KHz, 1mW Impedenza 16 ohm Risposta in Frequenza 10 Hz – 20 KHz (±3 dB) Connettore 3.5 mm Mini-jack 3 poli placcato oro...
Page 30
IS A BRAND OF PROEL S.p.A. (World Headquarters - Factory) Via alla Ruenia 37/43 64027 Sant’Omero (Te) – Italy Tel: +39 0861 81241 Fax: +39 0861 887862 www.eikon-audio.com...
