New Outlook Welder-MIG/MAG Series

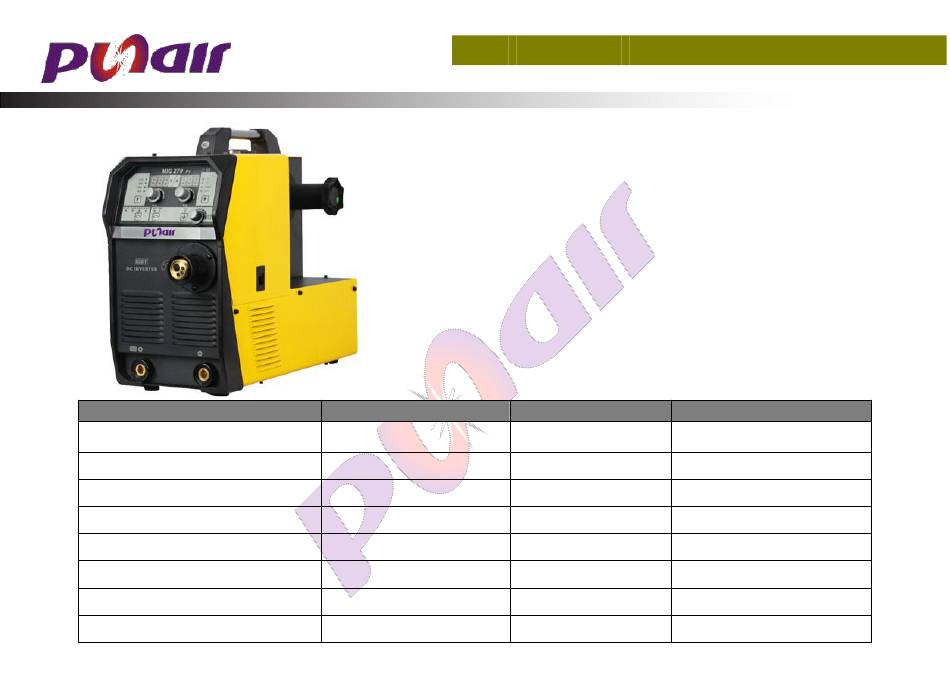

MIG270PY
Top Features
High current range of 270 amps provides the ability to weld over 1.0 mm plate
MMA function ensures the power to weld 3.2 electrodes
Multi-function: Pulse and Double Pulse MIG/MAG, MMA process
high performance to weld aluminum alloy,titanium alloy,etc,.
Convenient digital operational interface. Automatically matching welding parameter
Perfect match for 1.0/0.8/0.6 mm solid wire and 3.2mm electrodes
Overheat,over-current and over-voltage detection,anti-shock and anti-sticking functions
IP21S classification to ensure reliability in harsh and demanding environmental conditions
Parameters
380V(±15%)/3Ph/50HZ/60HZ
18.2
50-270A/35V/60%
30-240A
≥0.9
≥85
3-31
1.0±0.5
1
Technical
Wire diameter (mm)
Insulation grade
Housing protection grade
Applicable thickness (mm)
Output cable (mm2)
Net Weight (kg)
Dimensions H×W×D (mm)
Parameters
0.6/0.8/1.0
F
IP21S
Over 1.0
Over 25
22.3
581 x 234x 470
Advertisement
Table of Contents
Related Manuals for Punair MIG Series
Summary of Contents for Punair MIG Series
- Page 1 New Outlook Welder-MIG/MAG Series MIG270PY Top Features High current range of 270 amps provides the ability to weld over 1.0 mm plate MMA function ensures the power to weld 3.2 electrodes Multi-function: Pulse and Double Pulse MIG/MAG, MMA process ...
- Page 2 New Outlook Welder-MIG/MAG Series Function description ARC/MIG/Single pulse / double pulse function switch Parameter setting adjustment knob button Frequency/amplitude state switch button Voltmeter Wire checking function button Ammeter 2T/4T/Special 4T/spot welding function switch button Positive output Aluminum silicon / aluminum magnesium / stainless s Positive output teel / carbon steel material selection button ARC/MIG/Single pulse / double pulse indicator...
-
Page 3: Installation Instruction
New Outlook Welder-MIG/MAG Series INSTALLATION INSTRUCTION If the connecting cable is too long, it will have a great influence on the arcing performance as well as the stability of the welding performance. Therefore,please use the recommended length.If you want to reduce the voltage drop, please use a cable with a larger cross section. 1)The gas cylinder equipped with the carbon dioxide gas pressure reducing flow meter is closely connected with the gas inlet of the carbon dioxide inlet at the back of the machine. -
Page 4: Function Detail Description
New Outlook Welder-MIG/MAG Series FUNCTION DETAIL DESCRIPTION 1)ARC/MIG/single pulse/double pulse function switch button 1.Function button description The working mode of the welder can be switched. When the button is pressed multiple times, the working mode of the welder can be cyclically switched, and the corresponding status indicator can indicate the current working mode of the welder. -
Page 5: Adjustment Knob
New Outlook Welder-MIG/MAG Series 1)Current adjustment knob：used to adjust welding parameters such as welding current / arc current / wire diameter / wire material selection. 2.Adjustment knob 2)Voltage adjustment knob：used to adjust welding parameters such as welding voltage/arcing voltage/arc force/back burn time selection. 1)Welding current：the current output when the welder is normally welded.
